Article number 696282

Wall and ceiling light

type ..6282

156,80

Description

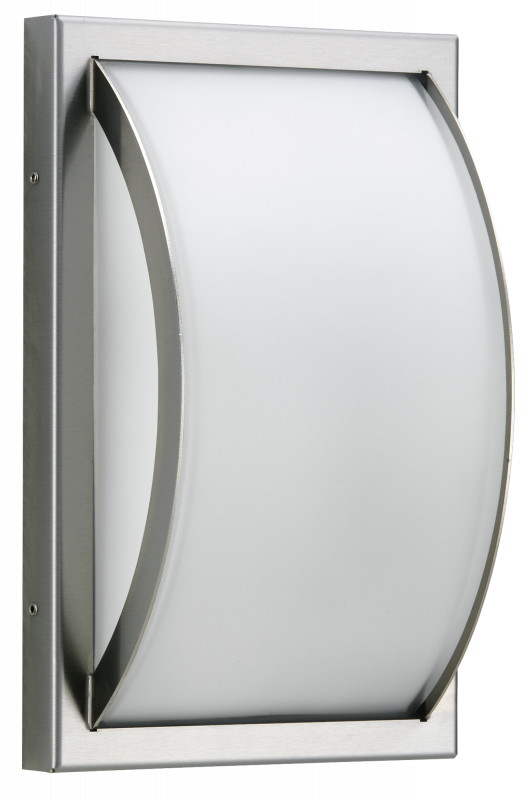

Albert wall and ceiling light 696282
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : 280 x 180 x 85 mm

Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

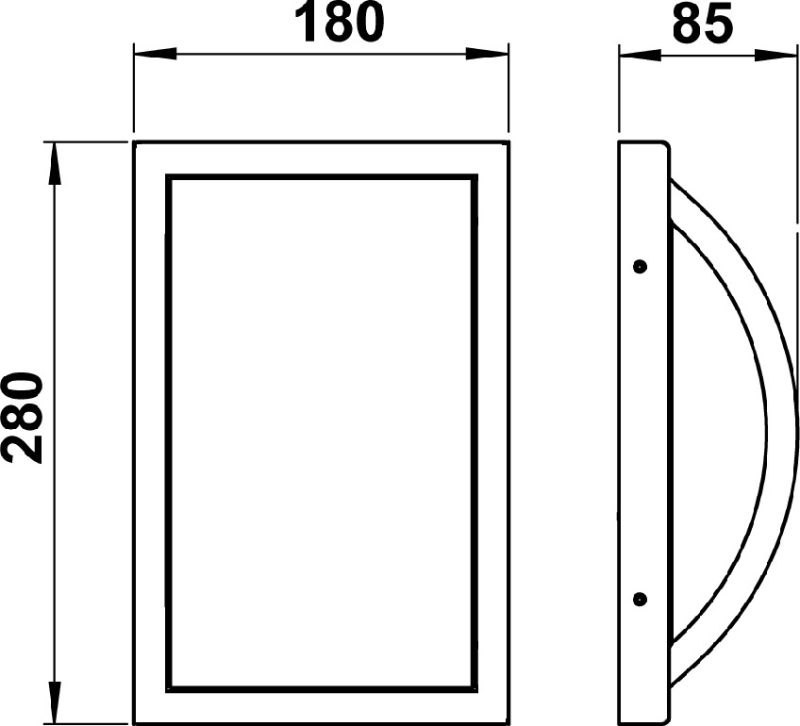

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210154 - G 154, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 2.10 kg
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Material housing

Stainless steel

Dimming manufacturer's proprietary system

Yes

Colour housing

Stainless steel

Conductor cross section

2.5 mm²

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Protection class

I

Material cover

Glass opal

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Number of poles

3

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

280 mm

Length

85 mm

Type of wiring

Ending

Lamp holder

E27

Suitable for number of lamps

1

Degree of protection (IP)

IP44

Shape

Eckig

Dimming depending on control gear

Yes

No dim function

Yes

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Width

180 mm

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Untreated

Mounting Type

Wand

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1
