Data sheet

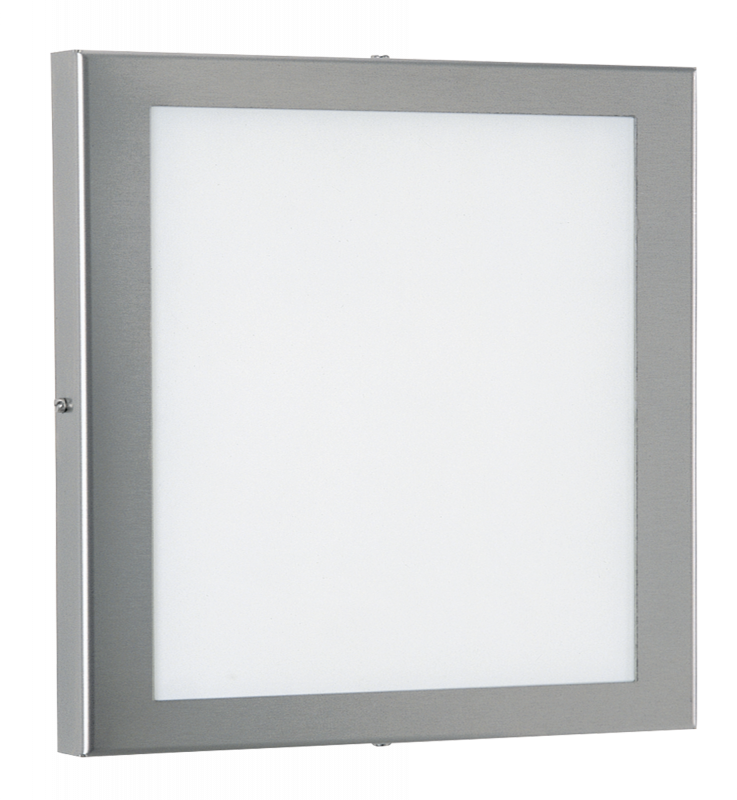

Wall and ceiling light Stainless steel Product Image Article 696214

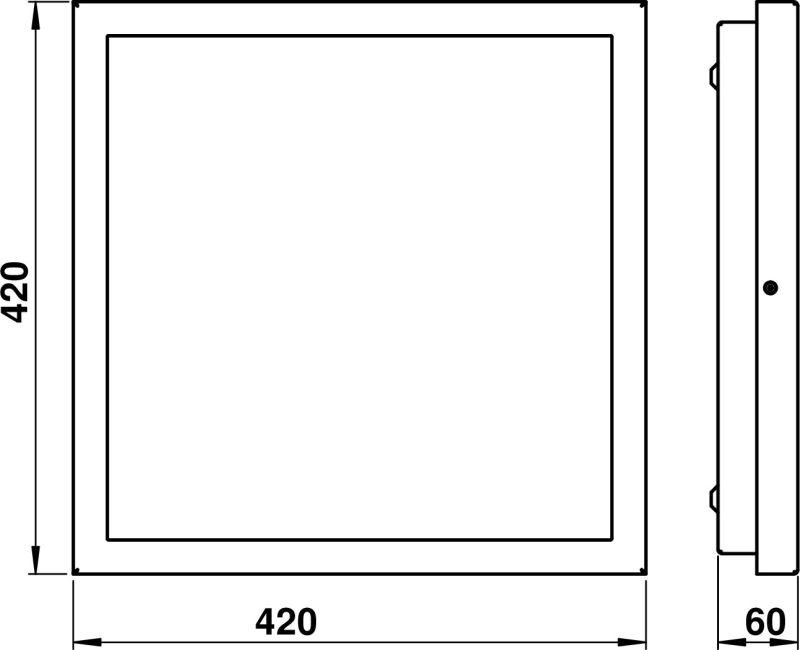

Wall and ceiling light Stainless steel Dimensioned drawing Article 696214
Wall and ceiling light Stainless steel Product Image Article 696214
Wall and ceiling light Stainless steel Dimensioned drawing Article 696214
Article number 696214

Wall and ceiling light

type ..6214

€282,70

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert wall and ceiling light 696214
made of stainless steel with opal pane glass. Equipped for 2 x fluorescent lamps TC-L 24 W , socket 2G11.protection class IP 54 – protection class : 420 x 420 x 60 mm.

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
2G11
Suitable for lamp power
48 W
Material cover
Glass structured
Documents and files
Assembly instruction
download PDF 34.2 KB
Dimensioned drawing
download PDF 12.79 KB
Light distribution curve - Eulumdat/LDT
download LDT 3.27 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220303 - G 303, milk flashed glass show

Additional information

Weight 6,90 kg
Light output

1-seitig
Lamp type

Compact fluorescent lamp
Suitable for number of lamps

2
Lamp holder

2G11
Material housing

Stainless steel
Colour housing

Stainless steel
Suitable for ceiling mounting

Yes
Nominal voltage

230 V
With control gear

Yes
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Voltage type

AC
Suitable for surface mounting

Yes
Suitable for lamp power

48 W
Max. system power

48 W
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Light output

Direct
Degree of protection (IP)

IP54
Material cover

Glass structured
Type of control gear

Low-loss ballast inductive
Highest energy efficiency class of the exchangeable lamp

A++
Dimming depending on control gear

Yes
No dim function

Yes
Width

420 mm
Height/depth

420 mm
Surface protection housing

Untreated
Unified Glare Ratio (UGR)

1
Protection class

I
Connection type

Screwed terminal
Mounting Type

Decke, Wand
Suitable for wall mounting

Yes
Conductor cross section

2.5 mm²
Type of wiring

Suitable for through wiring
Height

< 700 mm
Exchangeable control gear

Yes
Lowest energy efficiency class of the exchangeable lamp

E
Photobiological safety according to EN 62471

RG1
Length

60 mm
Power factor

1
Number of poles

3
Shape

Eckig
