Article number Select a color, please

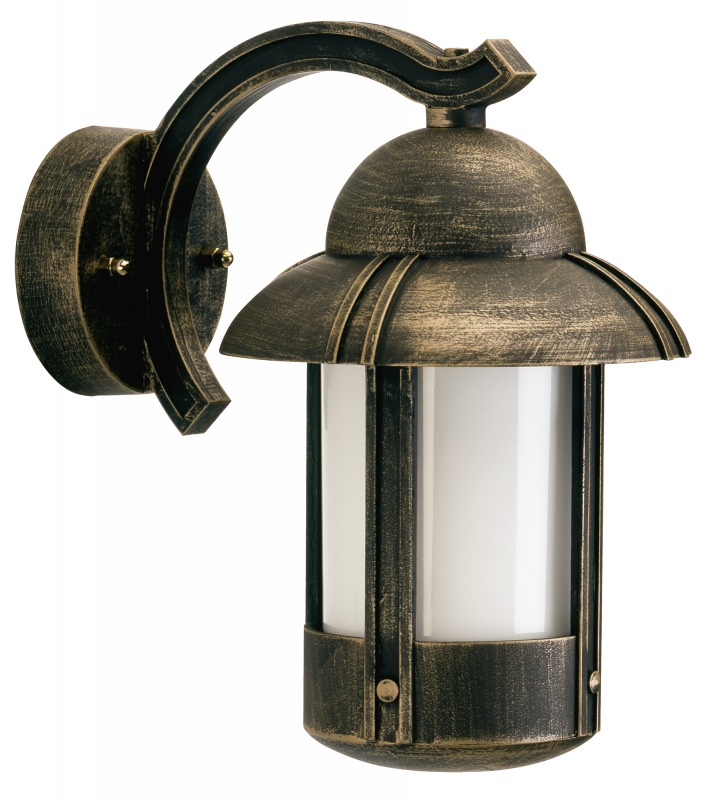

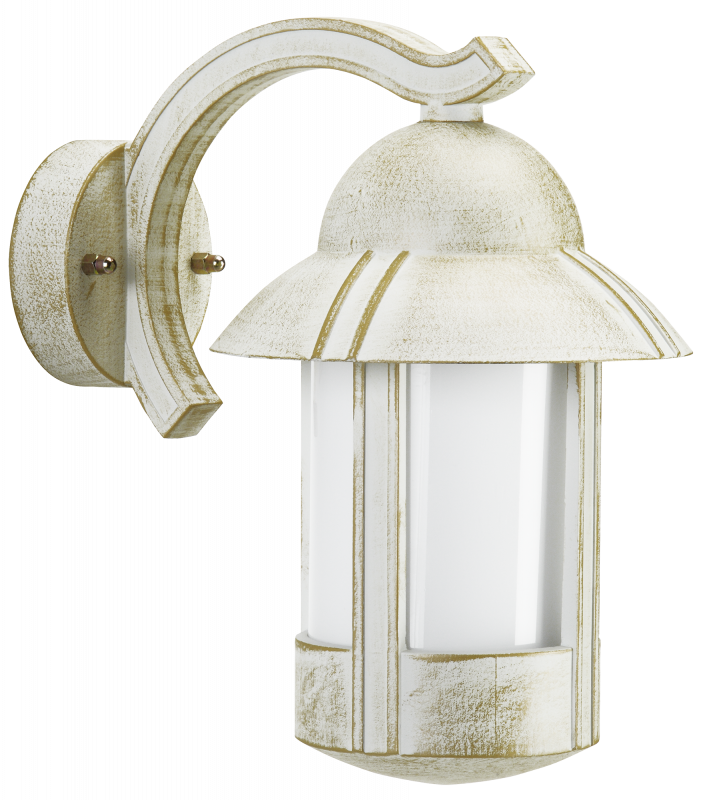

Wall lamp

type ..1841

290,20

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

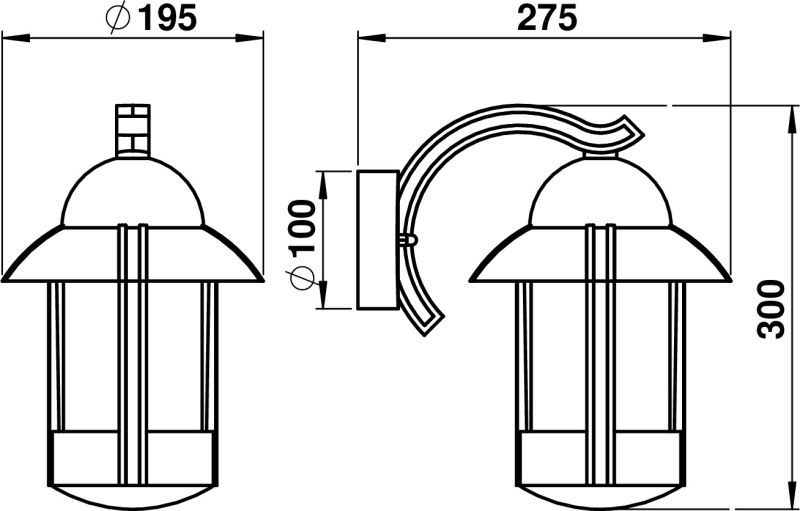

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 601841
Offertext
For: 651841
Offertext
For: 671841
Full catalog 21 / 22
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
601005 - Corner bracket round type ..1005, Black-Silver
Für: 601841
show
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651841
show
671005 - Corner bracket round type ..1005, White-Gold
Für: 671841
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Material cover

Glass opal

Power factor

1

Type of control gear

Not required

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Light sharing

Symmetric

Nominal voltage

230 V

Beam angle

Open beam/diffuse

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Unified Glare Ratio (UGR)

1

Colour housing

Black-Silver, Brown-Brass, White-Gold

Suitable for lamp power

1 – 75 W

Voltage type

AC

Light outlet

Direct

Degree of protection (IP)

IP44

Light type

Wandleuchte

Height

< 700 mm

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Width

195 mm

Outer diameter

195 mm

No dim function

Yes

Protection class

I

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Dimming depending on control gear

Yes

Surface protection housing

Lacquered

Height/depth

300 mm

Length

275 mm

Light outlet

1-seitig

Type of wiring

Ending

Number of poles

3

Suitable for wall mounting

Yes

Photobiological safety according to EN 62471

RG1

Mounting method

Wand

Style

Landhaus

Dimming manufacturer's proprietary system

Yes

Shape

Eckig
