Article number 696280

Wall and ceiling light

type ..6280

130,80

Description

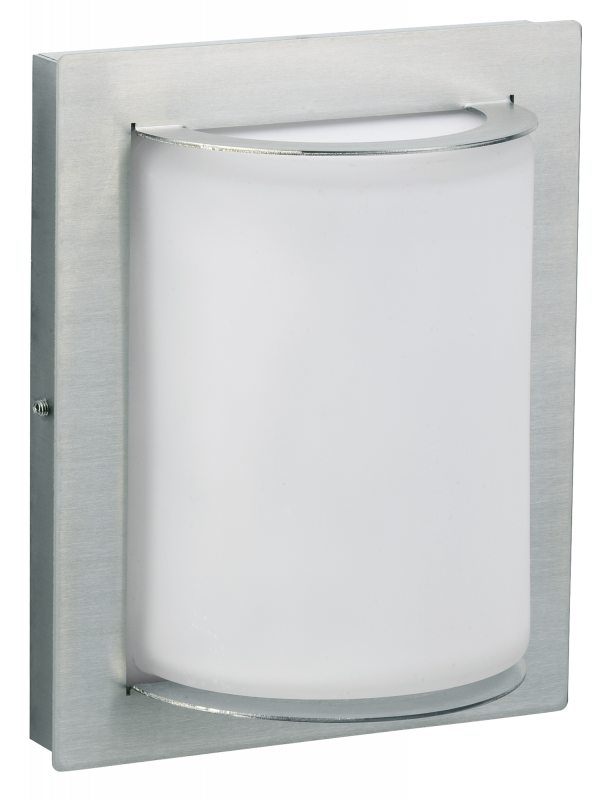

Albert wall and ceiling light 696280
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : 205 x 165 x 90 mm

Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

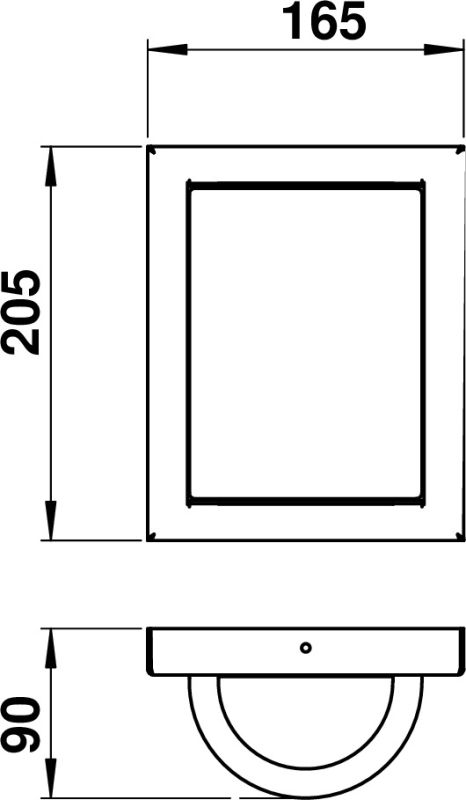

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight 1.60 kg
Suitable for wall mounting

Yes

Material cover

Glass opal

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Conductor cross section

2.5 mm²

Suitable for ceiling mounting

Yes

Protection class

I

Lamp holder

E27

Number of poles

3

Suitable for surface mounting

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Dimming phase cut-on

Yes

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

205 mm

Length

90 mm

Type of wiring

Ending

Colour housing

Stainless steel

Material housing

Stainless steel

Connection type

Screwed terminal

Style

Edelstahl, Modern

Mounting Type

Decke, Wand

Dimming depending on control gear

Yes

No dim function

Yes

Max. system power

75 W

Beam angle

Open beam/diffuse

Shape

Eckig

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 75 W

Power factor

1

Lowest energy efficiency class of the exchangeable lamp

E

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Untreated

Width

165 mm

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1
