Data sheet
Article number
Select a color, please

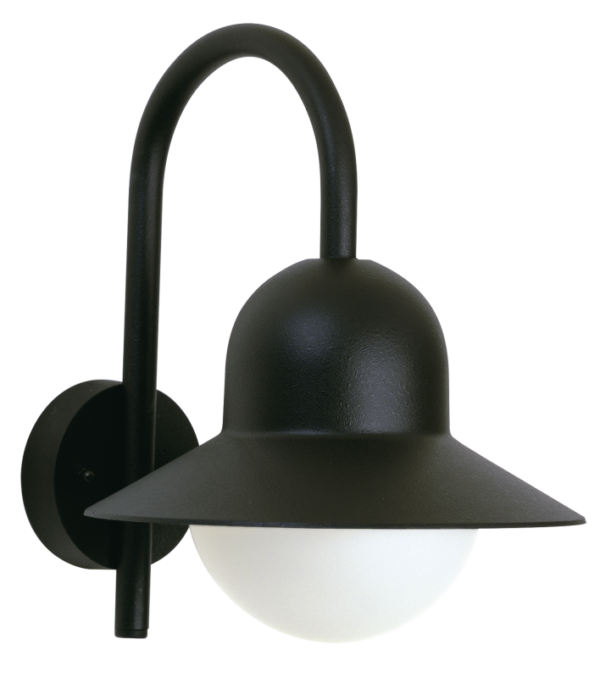

Wall light
type ..0662
€141,50 – €162,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

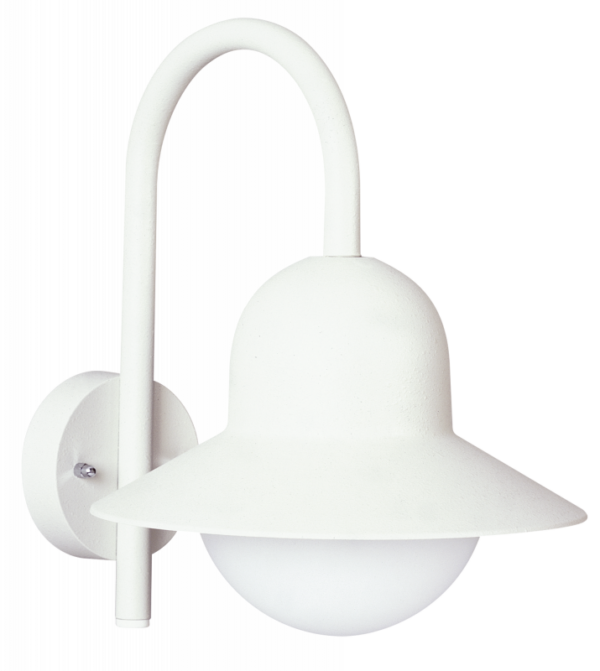

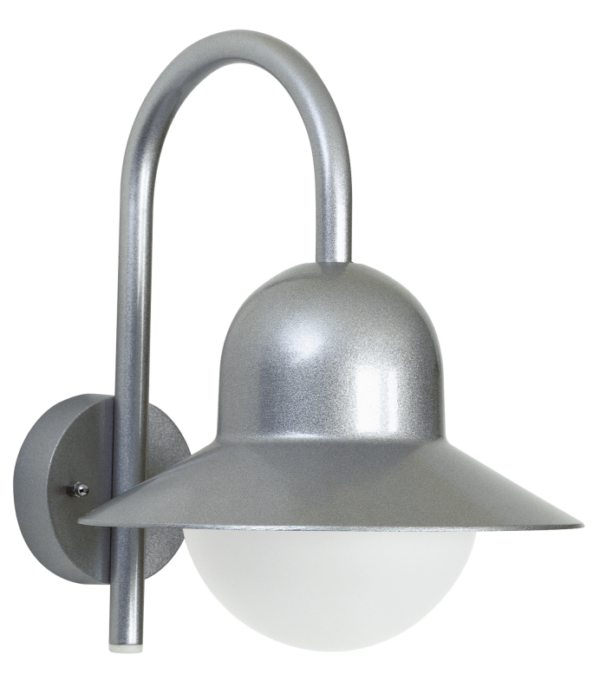

Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming depending on control gear | Yes |
| Light type | Wandleuchte |
| Mounting method | Wand |
| Shape | Eckig |
| Connection type | Screwed terminal |
| Light sharing | Symmetric |
| No dim function | Yes |
| Height | < 700 mm |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |

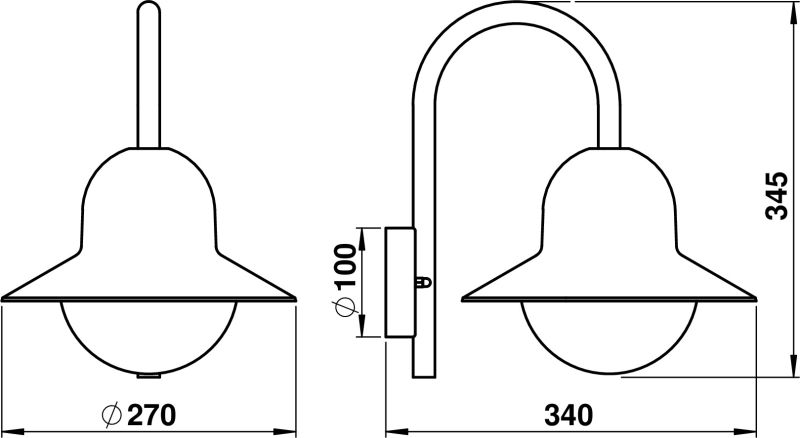

| Outer diameter | 270 mm |
| Number of poles | 3 |
| Light outlet | Direct |
| Length | 340 mm |
| Light outlet | 1-seitig |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (IP) | IP44 |
| Surface protection housing | Lacquered |
| Style | Edelstahl, Modern |
| Height/depth | 345 mm |
| Max. system power | 75 W |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Voltage type | AC |
| Suitable for surface mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Protection class | I |
| Suitable for number of lamps | 1 |
Documents and files
Spare parts
| 90210094 - G 94, glass opal matt | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming depending on control gear | Yes |
| Light type | Wandleuchte |
| Mounting method | Wand |
| Shape | Eckig |
| Connection type | Screwed terminal |
| Light sharing | Symmetric |
| No dim function | Yes |
| Height | < 700 mm |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Outer diameter | 270 mm |
| Number of poles | 3 |
| Light outlet | Direct |
| Length | 340 mm |
| Light outlet | 1-seitig |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (IP) | IP44 |
| Surface protection housing | Lacquered |
| Style | Edelstahl, Modern |
| Height/depth | 345 mm |
| Max. system power | 75 W |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Voltage type | AC |
| Suitable for surface mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Protection class | I |
| Suitable for number of lamps | 1 |
Related products
-
Wall light type ..0223excl. VAT
-

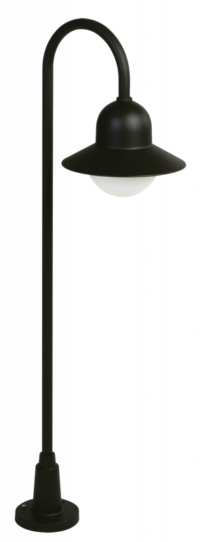

Path light type ..2005excl. VAT
-
