Article number 696283

Wall lamp

type ..6283

225,20

Specifications

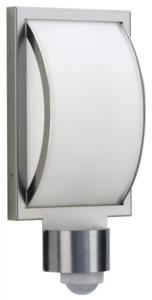

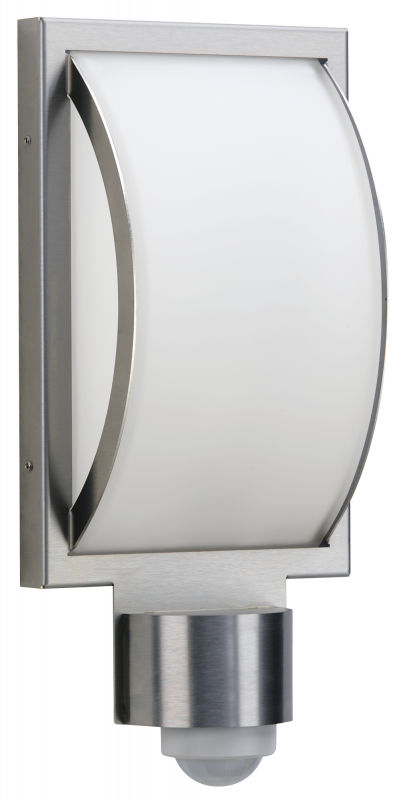

Albert wall light 696283 – with integrated motion detector –
made of stainless steel with opal glass. Fitted for 1 x incandescent lamp A60 75 W, socket E27.degree of protection IP 44 – protection class : 180 x 370 x 85 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 2,40 kg
Light type

Wandleuchte

Max. system power

75 W

Dimming phase cut-on

Yes

Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Degree of protection (IP)

IP44

Height/depth

385 mm

Suitable for surface mounting

Yes

Voltage type

AC

Type of control gear

Not required

Width

180 mm

Light sharing

Symmetric

Mounting Type

Wand

Power factor

1

Suitable for number of lamps

1

Nominal voltage

230 V

Length

85 mm

Number of poles

3

Dimming depending on control gear

Yes

No dim function

Yes

Beam angle

Open beam/diffuse

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Coverage

360 °

Unified Glare Ratio (UGR)

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Style

Edelstahl, Modern

Height

< 700 mm

Surface protection housing

Untreated

Light output

Direct

Protection class

I

Conductor cross section

2.5 mm²

Light output

1-seitig

Suitable for wall mounting

Yes

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 92 KB

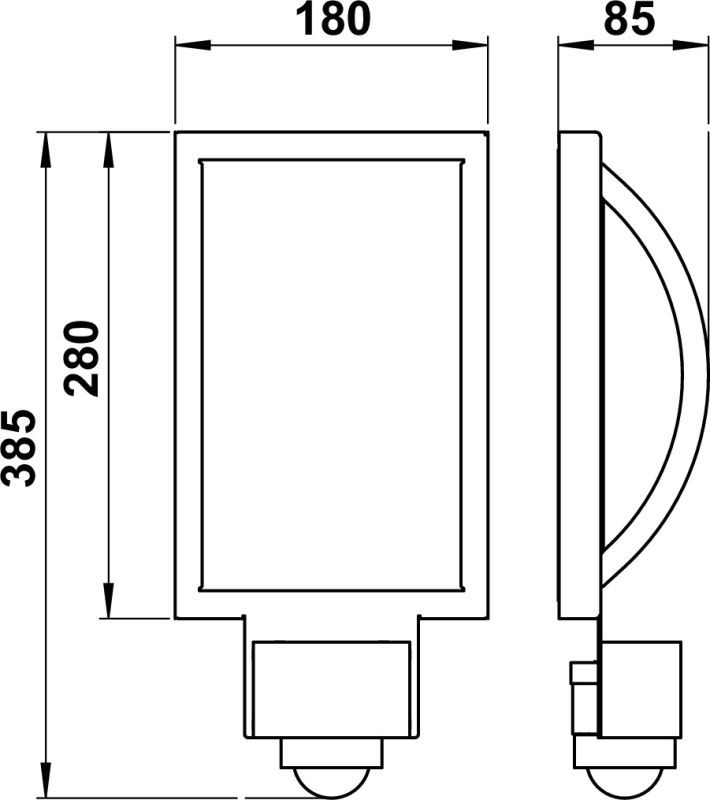

Dimensioned drawing
PDF | 109 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210154 - G 154, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
