Data sheet
Article number
Select a color, please

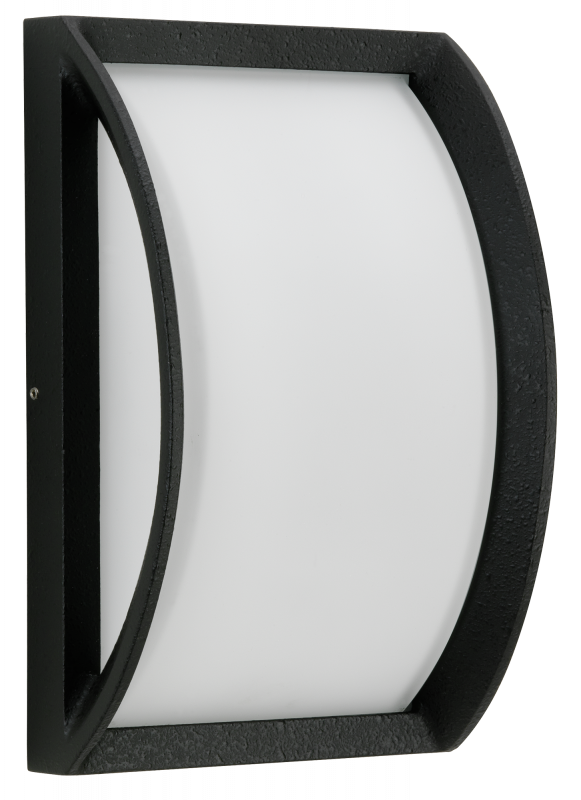

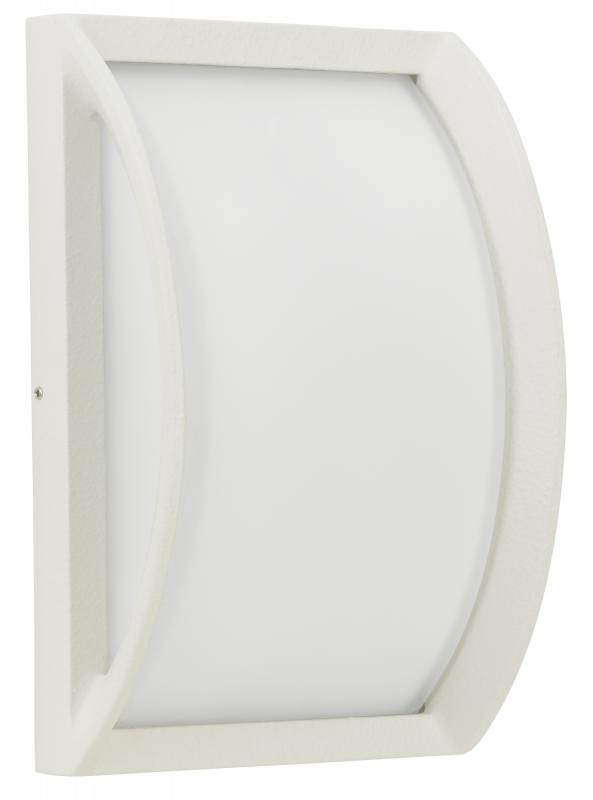

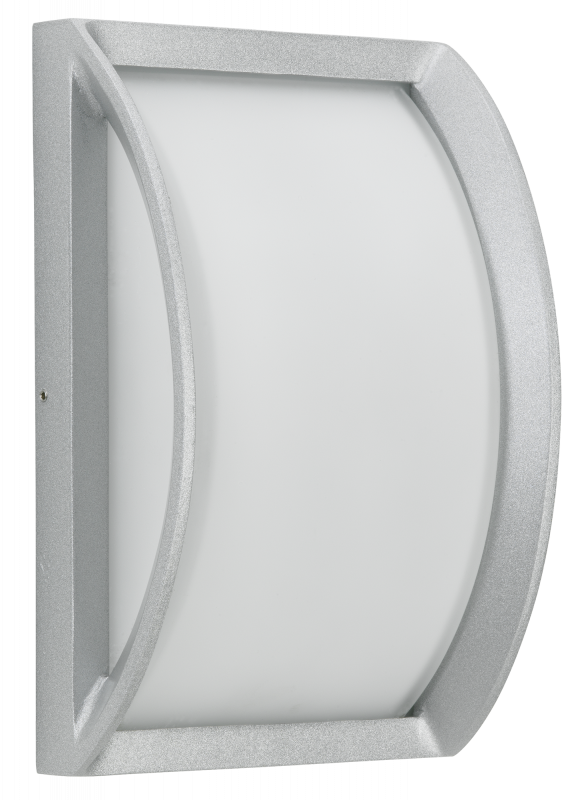

Wall and ceiling light
type ..6289
€162,60 – €187,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire has IP 54 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Metal halide lamp, Other
Lamp holder
E27
Suitable for lamp power
16 W, 35 W
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

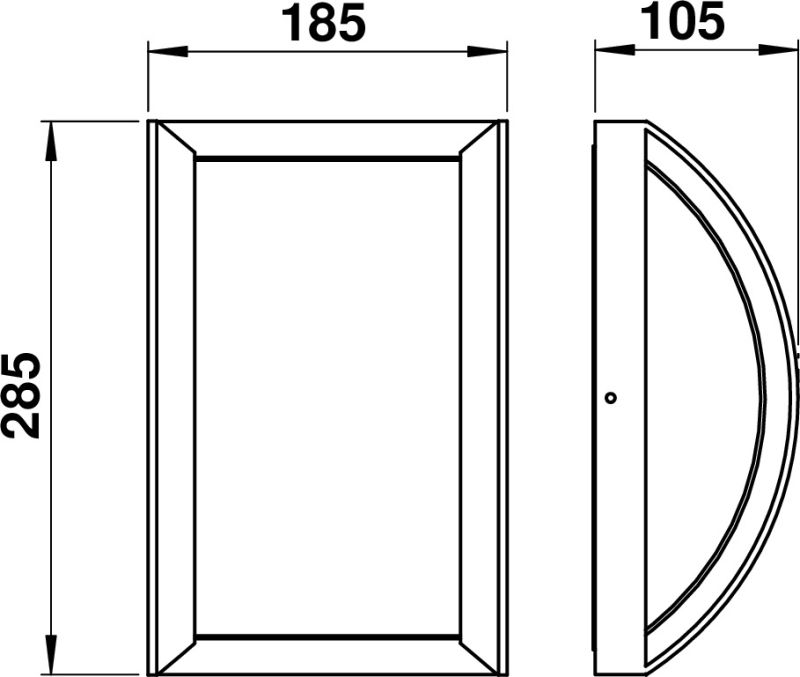

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666289
Offertext
For: 686289
Offertext
For: 696289
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Max. system power | 16 W, 35 W |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Material housing | Aluminium |
| Colour housing | Black, Silver, White |
| Material cover | Glass opal |
| Voltage type | AC |
| Nominal voltage | 230 V |
| With control gear | No, Yes |
| Type of control gear | Not required |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Lamp type | Metal halide lamp, Other |
| Suitable for surface mounting | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Light sharing | Symmetric |
| Colour rendering index CRI | 80-89 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44, IP54 |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for lamp power | 16 W, 35 W |
| Power factor | 1 |
| Height/depth | 285 mm |
| Length | 105 mm |
| Dimming depending on control gear | Yes |
| Width | 185 mm |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Height | < 700 mm |
| Light output | 1-seitig |
| Mounting Type | Wand |
| Shape | Eckig |
| No dim function | Yes |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Type of wiring | Ending |
| Colour temperature | 3000 K |
| Colour of light | White |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Style | Modern |
| Surface protection housing | Lacquered |
| Exchangeable control gear | No, Yes |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
