Article number Select a color, please

Wall and ceiling light

type ..6389

228,90271,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

With control gear

No, Yes

Voltage type

AC

Nominal voltage

230 V

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Protection class

I

Degree of protection (IP)

IP44

Type of control gear

LED operating device voltage-controlled

Light output

Direct

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Colour rendering index CRI

80-89

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig

Type of wiring

Ending

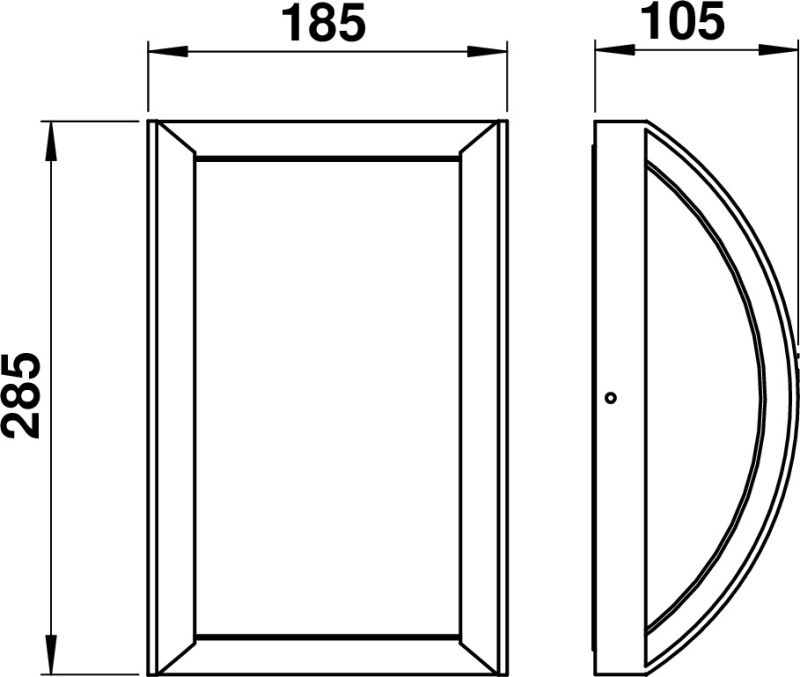

Width

185 mm

Length

105 mm

Power factor

0.9

Height

< 700 mm

Light output

1-seitig

Mounting Type

Wand

Style

Modern

Height/depth

285 mm

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Colour of light

White

Max. system power

10 W

Surface protection housing

Lacquered

Stroboscope effect value SVM

0.4

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Exchangeable control gear

No, Yes

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 24 KB
Dimensioned drawing
PDF | 14 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 666389
TXT | 291 B
Offertext
For: 686389
TXT | 291 B
Offertext
For: 696389
TXT | 268 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210154 - G 154, glass opal matt show
