Data sheet
Article number 696314
Wall and ceiling light
type ..6314
€636,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

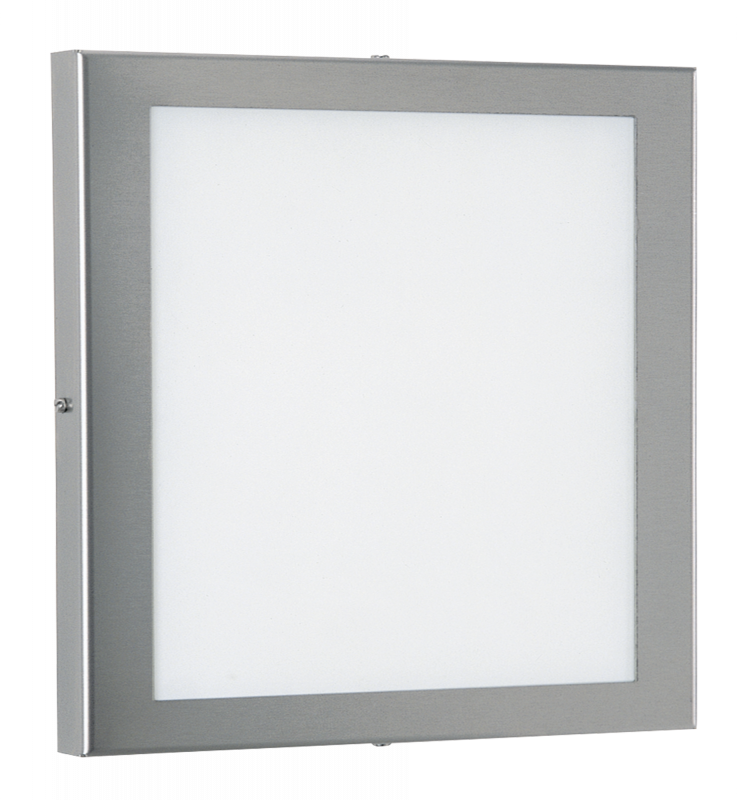

Albert wall and ceiling light 696314
made of stainless steel with opal pane glass.1 x 36 W LED, warm white 3000 K, 3960 IP 54 – protection class : 420 x 420 x 60 mm
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
36 W
Rated luminous flux according to IEC 62722-2-1
3960 lm
Colour temperature
3000 K
Material cover
Glass structured
Documents and files
Assembly instruction

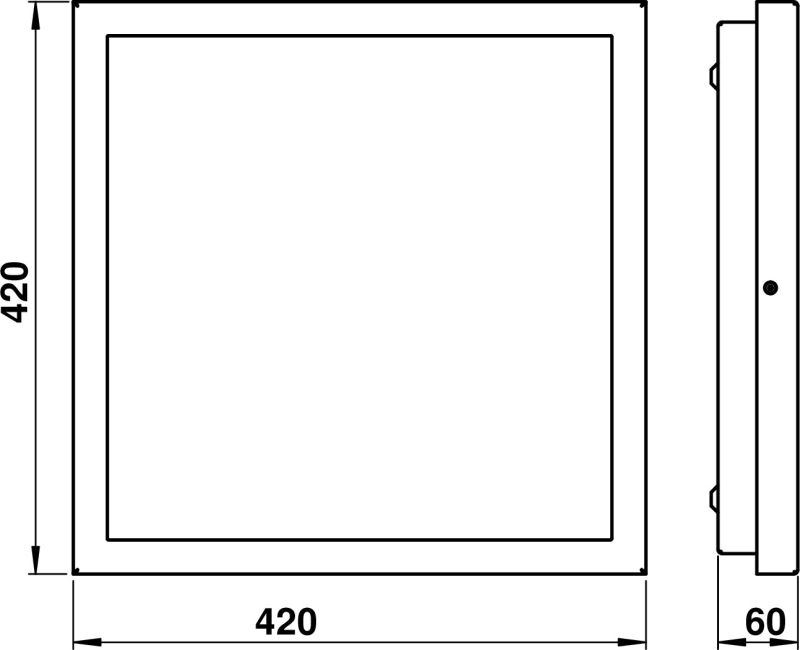

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90220303 - G 303, milk flashed glass | show |
Additional information
| Weight | 6,10 kg |
|---|---|
| Colour housing | Stainless steel |
| No dim function | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Material housing | Stainless steel |
| With light source | Yes |
| Lamp type | LED exchangeable |
| Material cover | Glass structured |
| Width | 420 mm |
| Colour rendering index CRI | 80-89 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light sharing | Symmetric |
| Height/depth | 420 mm |
| With control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Power factor | 0.9 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour of light | White |
| Rated luminous flux according to IEC 62722-2-1 | 3960 lm |
| Dimming phase cut-off | Yes |
| Colour temperature | 3000 K |
| Beam angle | Open beam/diffuse |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | Yes |
| Number of poles | 3 |
| Photobiological safety according to EN 62471 | RG1 |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| Height | < 700 mm |
| Type of wiring | Suitable for through wiring |
| Surface protection housing | Untreated |
| Unified Glare Ratio (UGR) | 1 |
| Suitable for lamp power | 36 W |
| Suitable for wall mounting | Yes |
| Light output | Direct |
| Degree of protection (IP) | IP54 |
| Style | Edelstahl, Modern |
| Max. system power | 36 W |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Length | 60 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
