Data sheet
Article number
Select a color, please
Wall and ceiling light
type ..6388
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

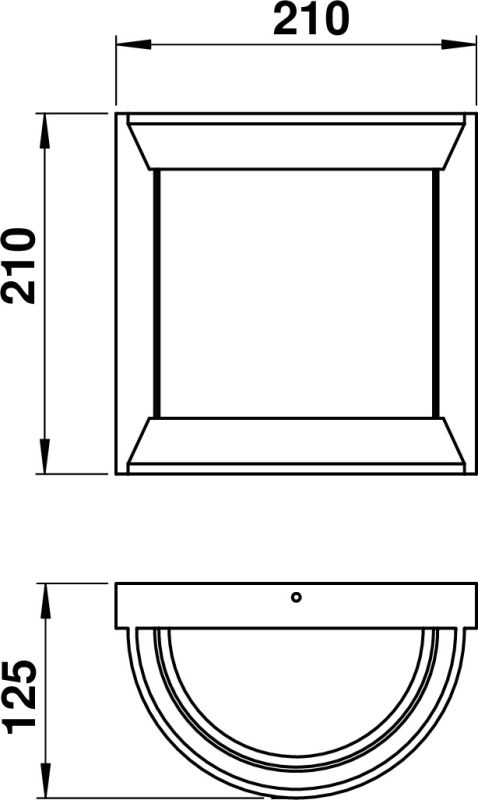

Dimensioned drawing
Offertext

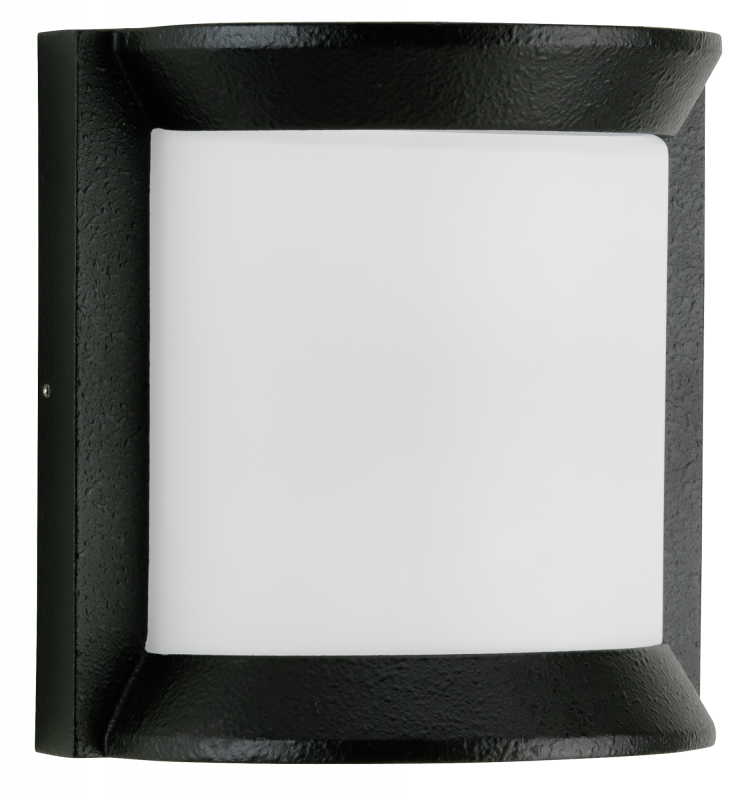

For: 666388
Offertext
For: 686388
Offertext

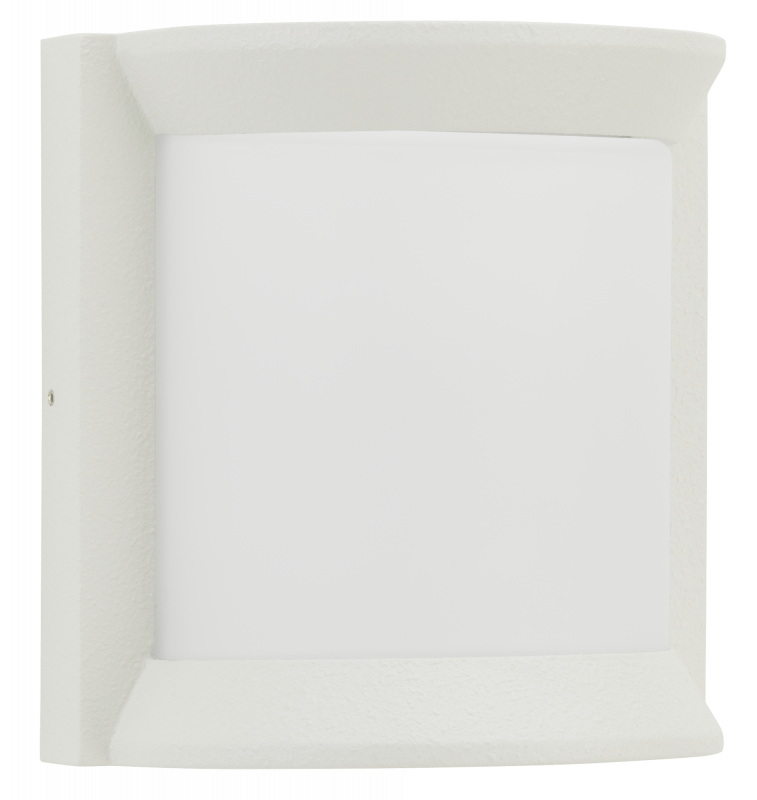

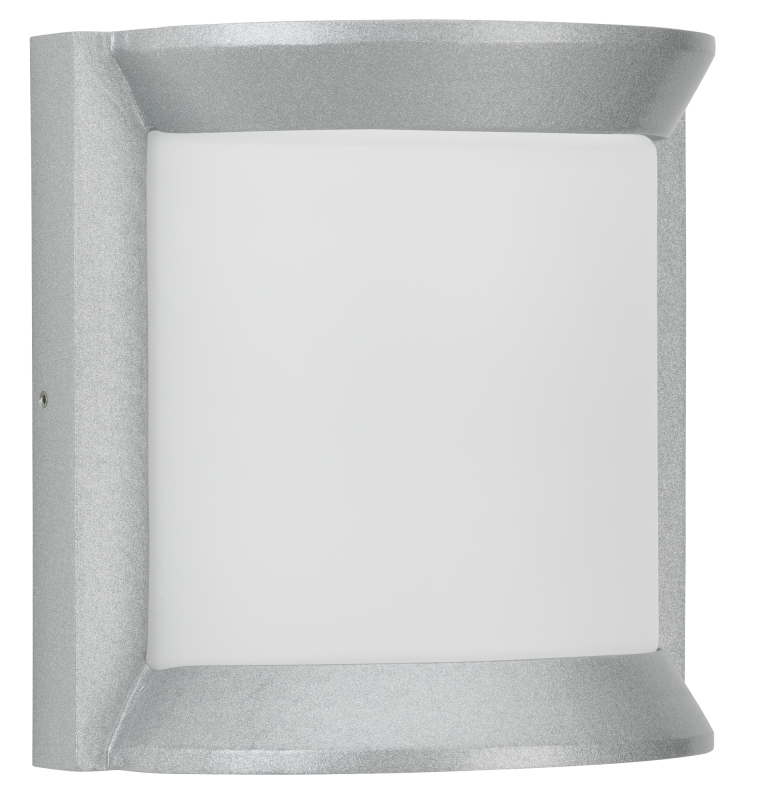

For: 696388
Full catalog 21 / 22
Spare parts
| 90210118 - G 118, opal glass matt | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming phase cut-off | Yes |
| Light sharing | Symmetric |
| No dim function | Yes |
| With light source | Yes |
| Suitable for surface mounting | Yes |
| Degree of protection (IP) | IP44 |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Colour housing | Black, Silver, White |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Material cover | Glass opal |
| Dimming depending on control gear | Yes |
| With control gear | No, Yes |
| Lamp type | LED exchangeable |
| Width | 210 mm |
| Height/depth | 210 mm |
| Length | 125 mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Height | < 700 mm |
| Light output | 1-seitig |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Light output | Direct |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Surface protection housing | Lacquered |
| Beam angle | Open beam/diffuse |
| Exchangeable control gear | No, Yes |
| Max. system power | 10 W |
| Suitable for lamp power | 10 W |
| Connection type | Screwed terminal |
| Rated luminous flux according to IEC 62722-2-1 | 900 lm |
| Colour of light | White |
| Colour temperature | 3000 K |
| Mounting Type | Wand |
| Protection class | I |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
