Article number Select a color, please

Wall and ceiling light

type ..6388

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

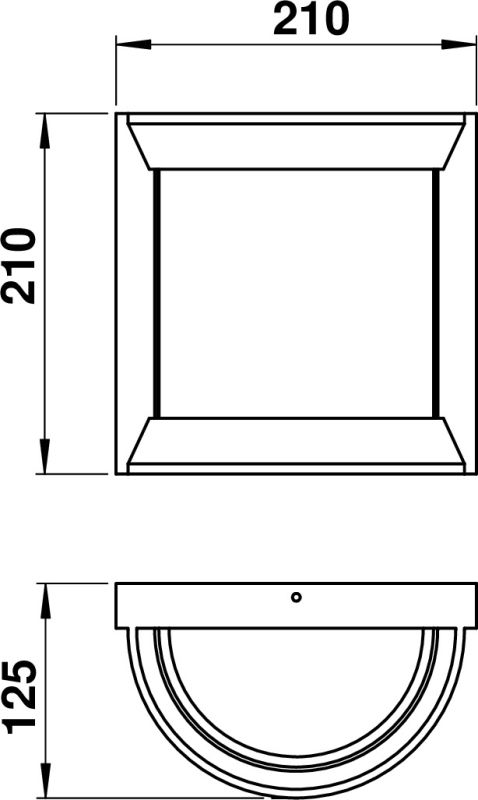

Dimensioned drawing
Offertext
For: 666388
Offertext
For: 686388
Offertext
For: 696388
Full catalog 21 / 22
Spare parts
90210118 - G 118, opal glass matt show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Light sharing

Symmetric

Lamp type

LED exchangeable

Suitable for number of lamps

1

No dim function

Yes

With light source

Yes

Suitable for surface mounting

Yes

Degree of protection (IP)

IP44

With control gear

No, Yes

Material housing

Aluminium

Colour housing

Black, Silver, White

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Voltage type

AC

Material cover

Glass opal

Dimming depending on control gear

Yes

Width

210 mm

Height/depth

210 mm

Length

125 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Beam angle

Open beam/diffuse

Height

< 700 mm

Colour consistency (McAdam ellipse)

SDCM3

Light output

Direct

Colour rendering index CRI

80-89

Power factor

0.9

Energy efficiency class of the provided exchangeable built-in lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Exchangeable control gear

No, Yes

Max. system power

10 W

Suitable for lamp power

10 W

Connection type

Screwed terminal

Rated luminous flux according to IEC 62722-2-1

900 lm

Colour of light

White

Colour temperature

3000 K

Mounting Type

Wand

Light output

1-seitig

Protection class

I

Surface protection housing

Lacquered

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Shape

Eckig
