Article number Select a color, please

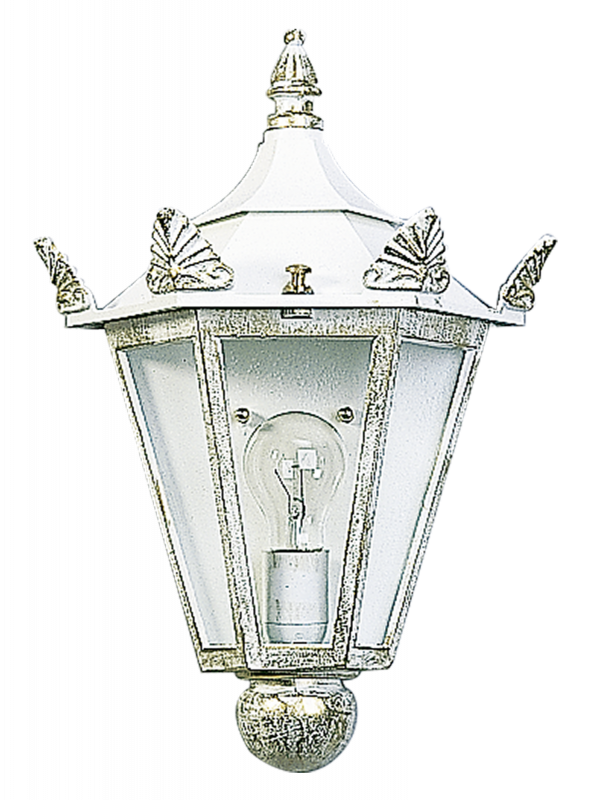

Wall light

type ..3228

209,60209,90

Clear
Features
IP23 Product-Icon Luminaire has IP 23 protection.
Luminaire has IP 23 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Weight N/A
Suitable for wall mounting

Yes

Connection type

Screwed terminal

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Length

150 mm

Nominal voltage

230 V

Suitable for surface mounting

Yes

Height/depth

425 mm

Width

260 mm

Suitable for number of lamps

1

Type of control gear

Not required

Dimming phase cut-on

Yes

Dimming depending on control gear

Yes

Max. system power

75 W

Power factor

1

Type of wiring

Ending

Conductor cross section

2.5 mm²

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

No dim function

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Light output

Direct

Protection class

I

Degree of protection (IP)

IP23

Voltage type

AC

Lowest energy efficiency class of the exchangeable lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Height

< 700 mm

Surface protection housing

Lacquered

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 44 KB

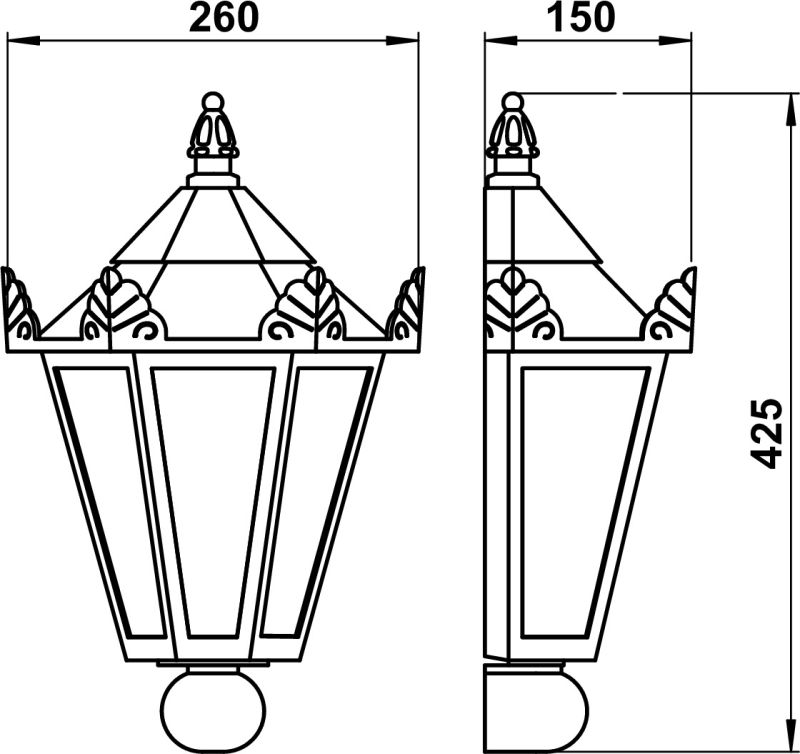

Dimensioned drawing
