Article number Select a color, please

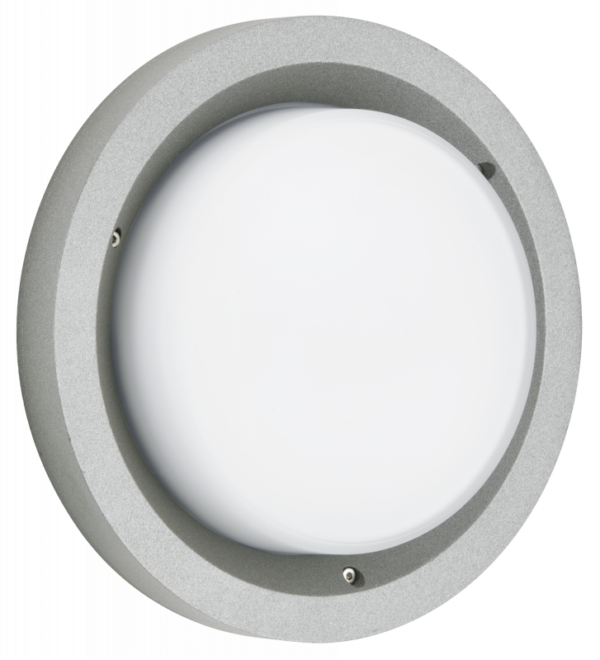

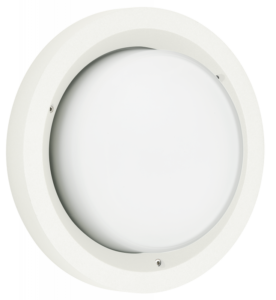

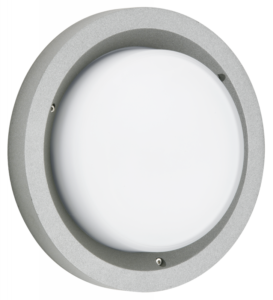

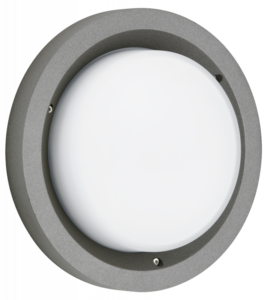

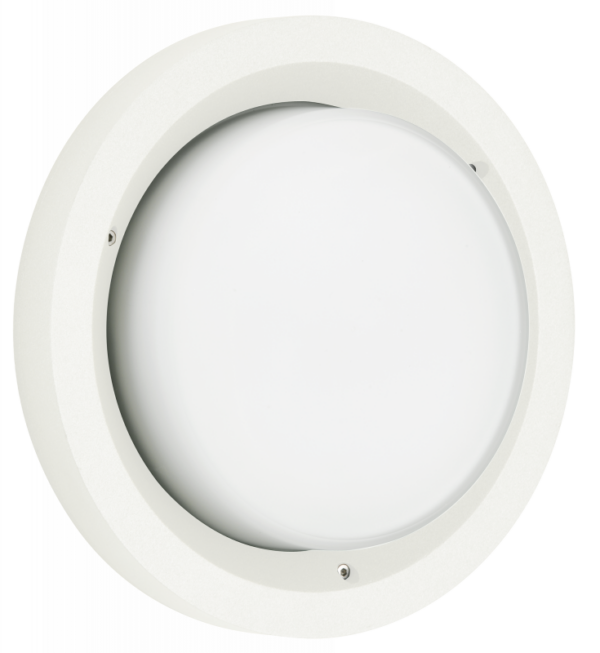

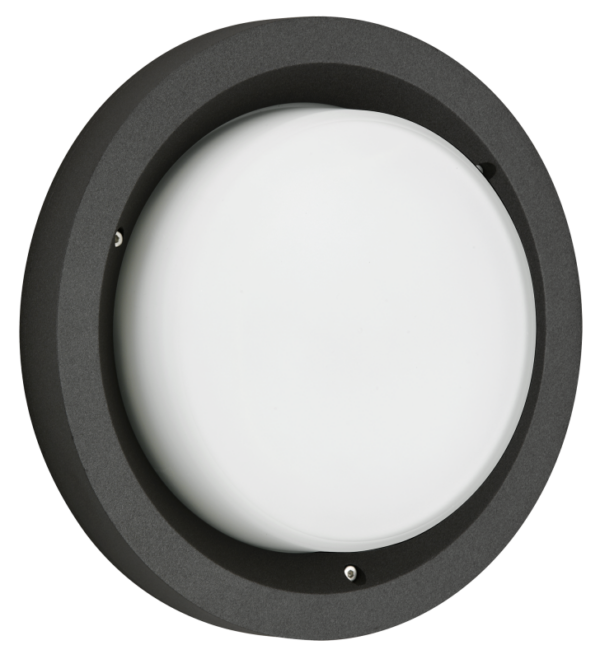

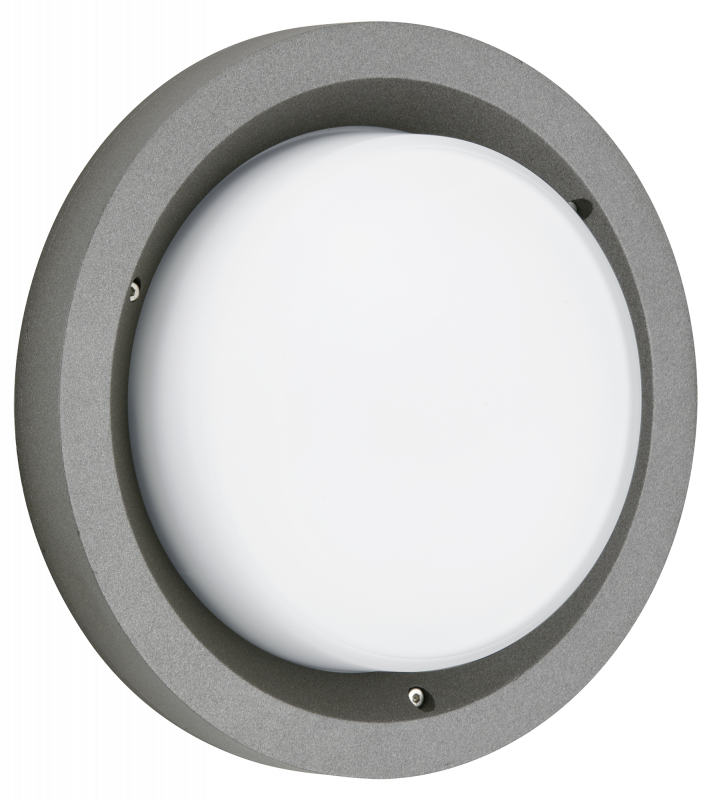

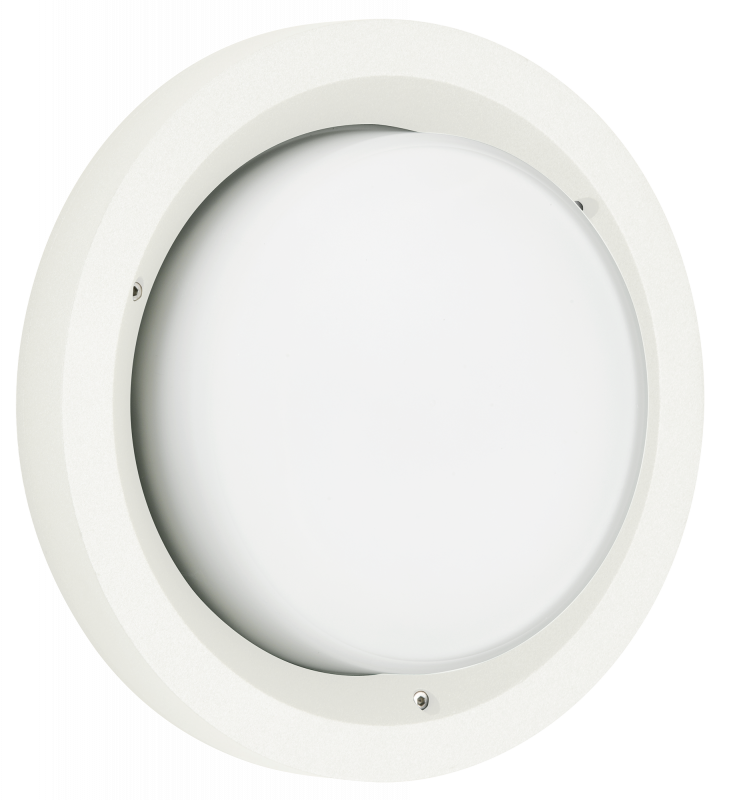

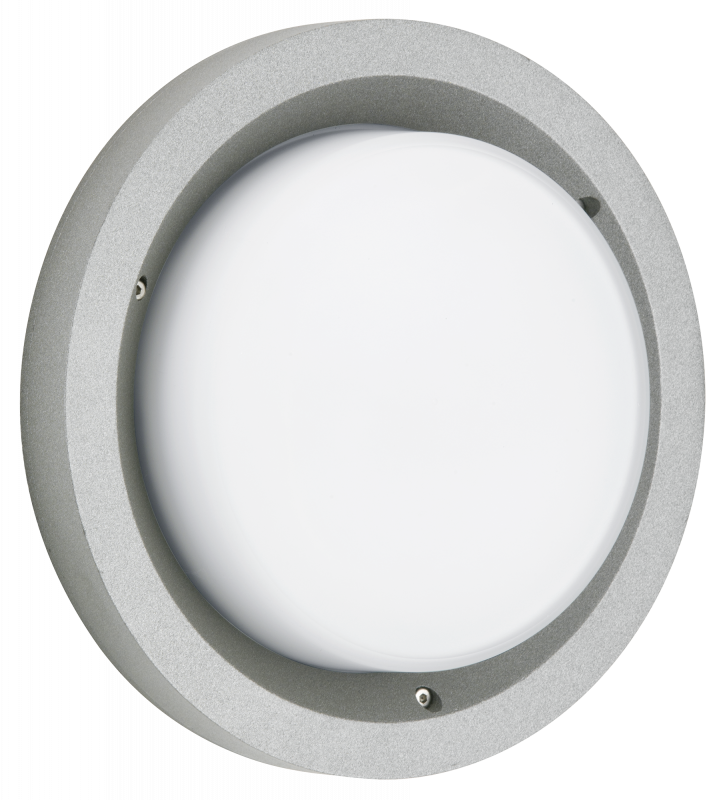

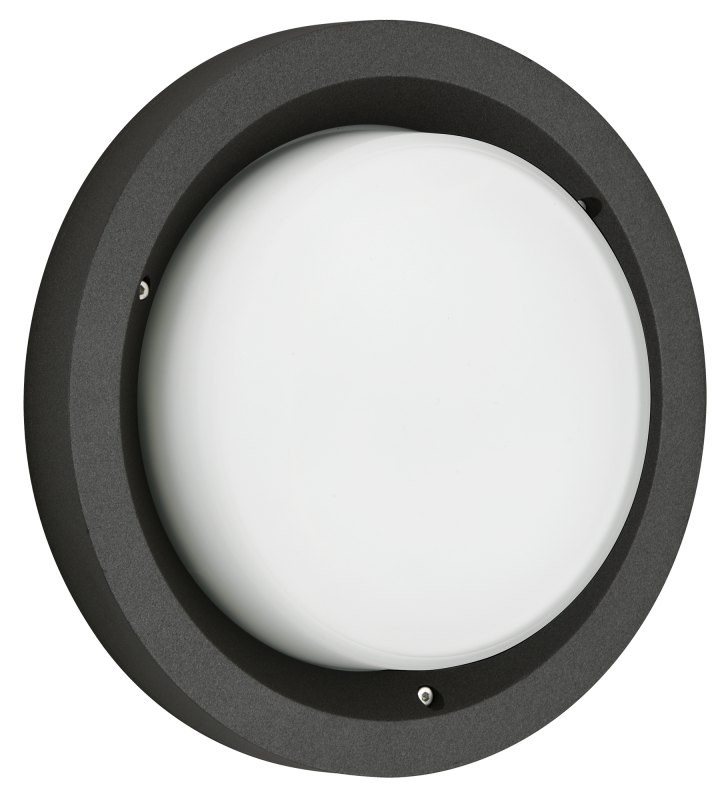

Wall and ceiling light

type ..6410

There is a successor for this product, which you will find listed below.

294,50338,70

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
880 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

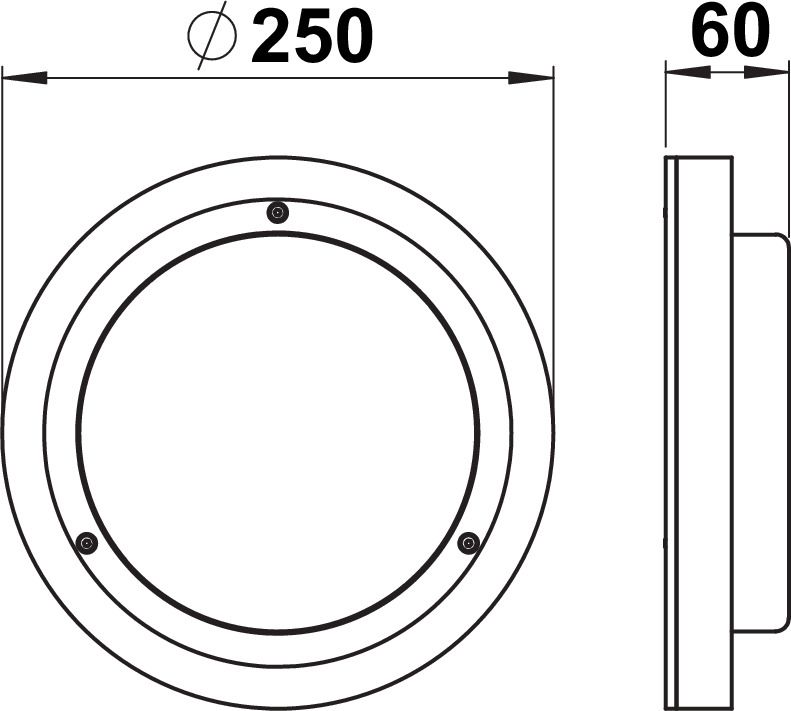

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626410
Offertext
For: 666410
Offertext
For: 686410
Offertext
For: 696410
Full catalog 21 / 22
Successor
626421 - Wall and ceiling light type ..6421, Anthracite
Für: 626410
show
666421 - Wall and ceiling light type ..6421, Black
Für: 666410
show
686421 - Wall and ceiling light type ..6421, White
Für: 686410
show
696421 - Wall and ceiling light type ..6421, Silver
Für: 696410
show
Spare parts
90210124 - G 124, clear glass matt show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Nominal voltage

230 V

With control gear

No, Yes

Type of control gear

LED operating device voltage-controlled

Dimming phase cut-off

Yes

Voltage type

AC

Suitable for ceiling mounting

Yes

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP54

Protection class

I

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Exchangeable control gear

No, Yes

Max. number of luminaires per miniature circuit breaker B16

20

Suitable for lamp power

8 W

Rated luminous flux according to IEC 62722-2-1

880 lm

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

1

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Max. system power

8 W

Light output

1-seitig

Length

60 mm

Stroboscope effect value SVM

0.4

Outer diameter

250 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Surface protection housing

Lacquered

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Suitable for wall mounting

Yes

Flickering value Pst LM

1

Type of wiring

Ending

Colour consistency (McAdam ellipse)

SDCM3

Power factor

0.9

Max. number of luminaires per miniature circuit breaker C16

30

Shape

Eckig
