Article number Select a color, please

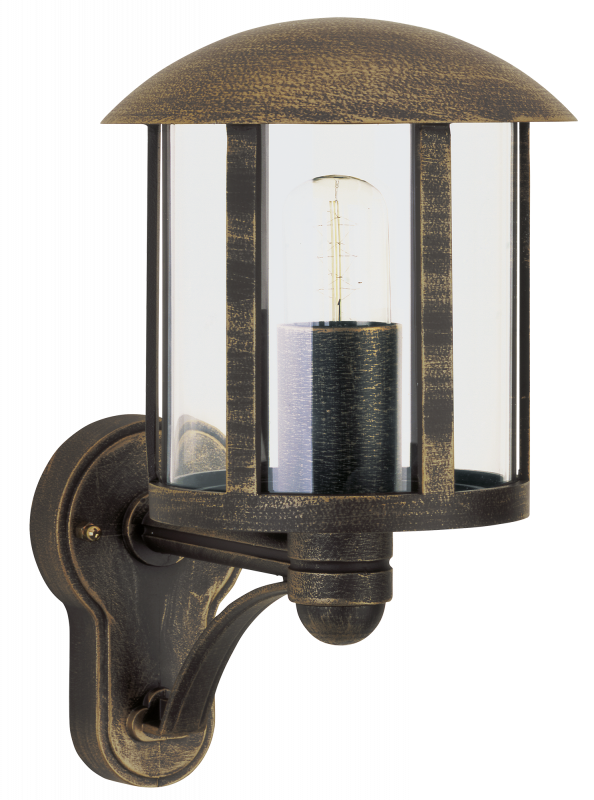

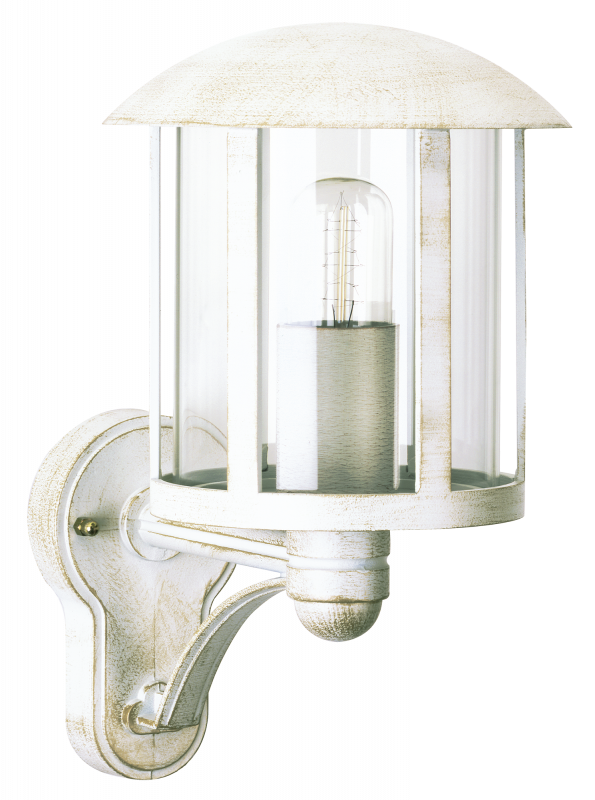

Wall lamp

type ..1834

186,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Weight N/A
Suitable for wall mounting

Yes

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Nominal voltage

230 V

Suitable for surface mounting

Yes

Type of control gear

Not required

Protection class

I

Voltage type

AC

Connection type

Screwed terminal

Beam angle

Open beam/diffuse

No dim function

Yes

Length

295 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Width

200 mm

Degree of protection (IP)

IP44

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Light output

Direct

Light sharing

Symmetric

Highest energy efficiency class of the exchangeable lamp

A++

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Power factor

1

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

75 W

Dimming phase cut-on

Yes

Height/depth

350 mm

Height

< 700 mm

Surface protection housing

Lacquered

Dimming depending on control gear

Yes

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 50 KB

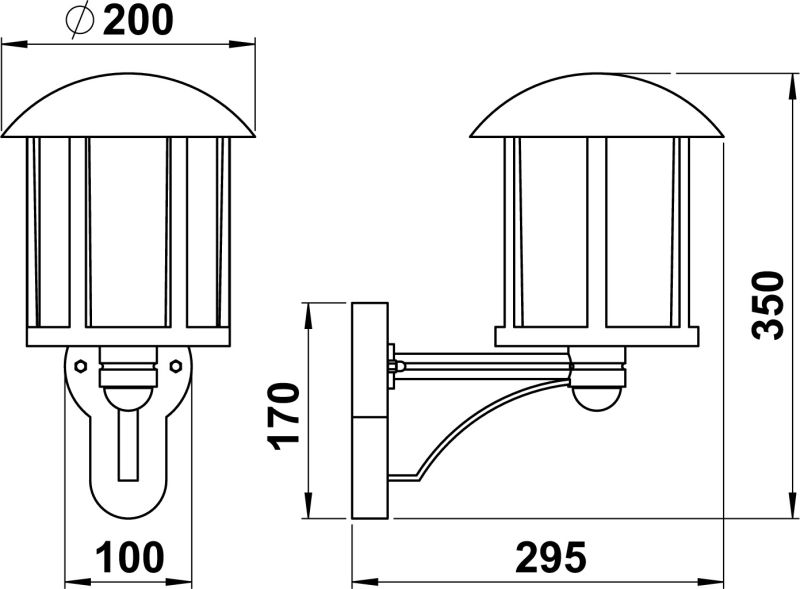

Dimensioned drawing
PDF | 63 KB
Light distribution curve - Eulumdat/LDT
LDT | 848 B
Offertext
For: 601834
TXT | 248 B
Offertext
For: 651834
TXT | 248 B
Offertext
For: 671834
TXT | 248 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260368 - G-368, acrylic tube clear 181mm show
Accessories
601006 - Corner bracket angular type ..1006, Black-Silver
Für: 601834
show
651006 - Corner bracket angular type ..1006, Brown-Brass
Für: 651834
show
671006 - Corner bracket angular type ..1006, White-Gold
Für: 671834
show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
