Article number Select a color, please

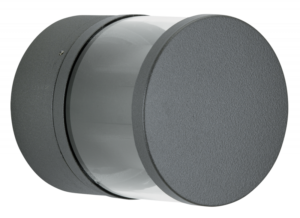

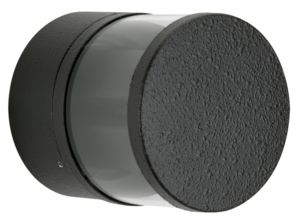

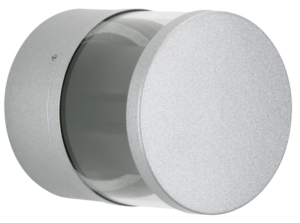

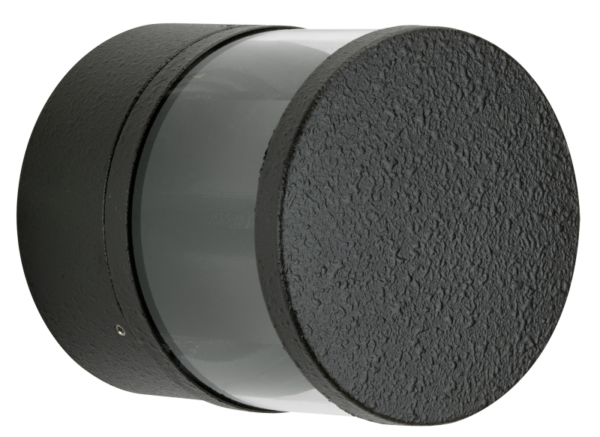

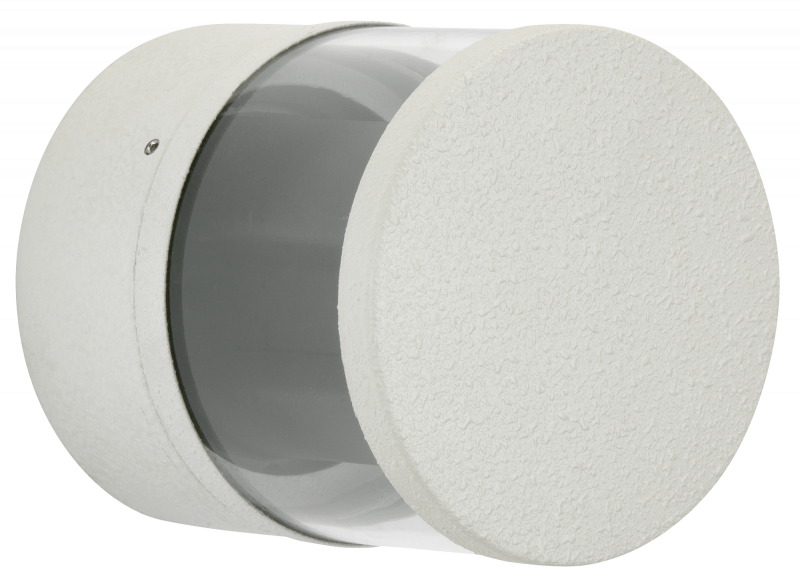

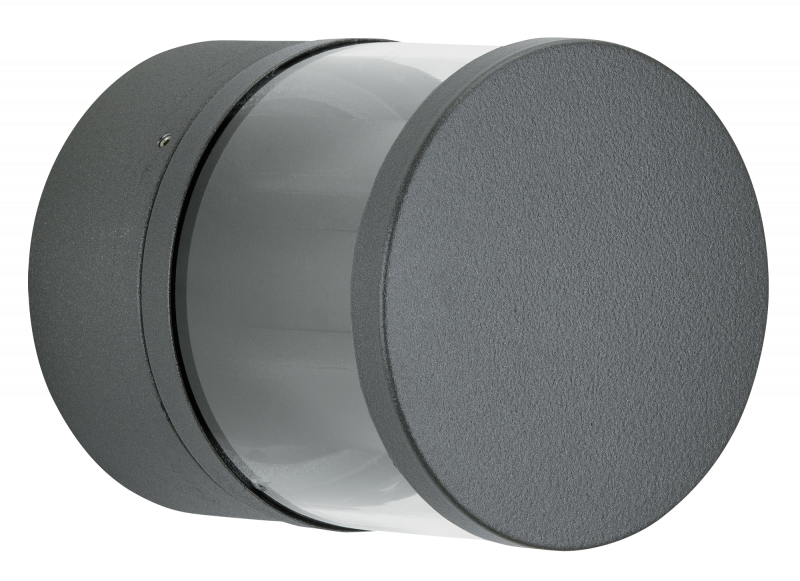

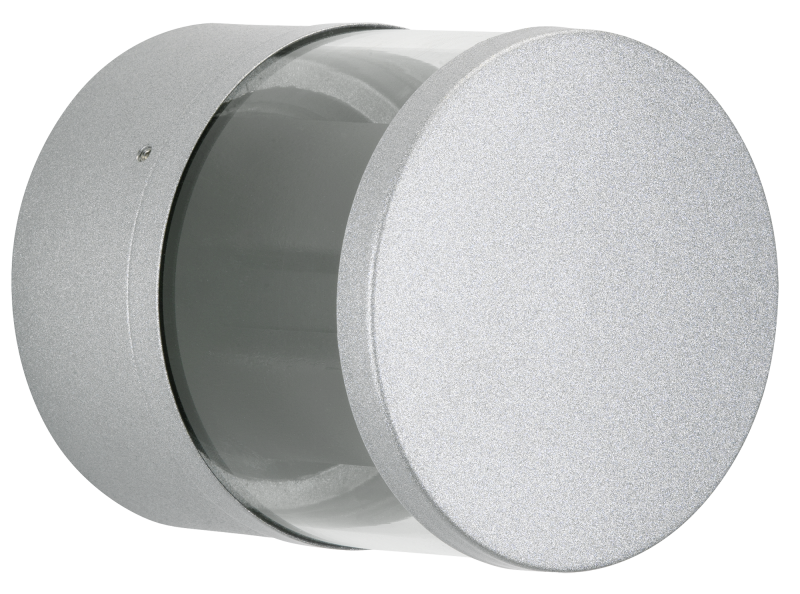

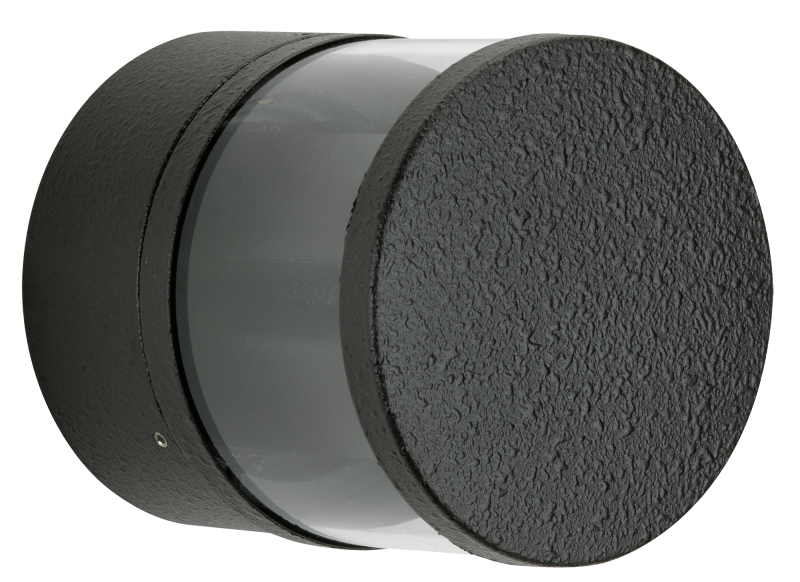

Wall floodlight

type ..2315

320,70369,20

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3 W
Rated luminous flux according to IEC 62722-2-1
330 lm, 660 lm
Colour temperature
3000 K
Material cover
Glass transparent, Plastic, transparent
Documents and files
Assembly instruction

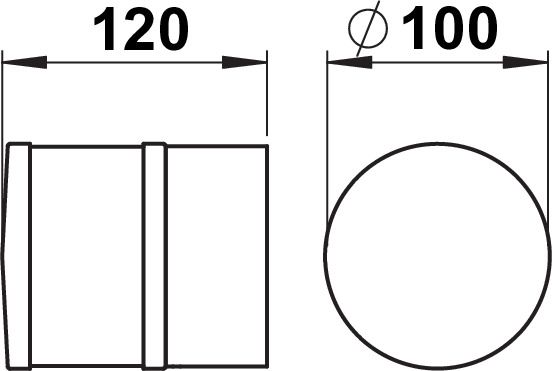

Dimensioned drawing
Offertext
For: 622315
Offertext
For: 662315
Offertext
For: 682315
Offertext
For: 692315
Full catalog 21 / 22
Spare parts
10260461 - G-461, acrylic tube clear d =100 x 72mm show

Additional information

Weight N/A
Suitable for surface mounting

Yes

With control gear

Yes

With light source

Yes

Suitable for number of lamps

2

Material housing

Aluminium

Voltage type

AC/DC

Material cover

Glass transparent, Plastic, transparent

Type of control gear

LED operating device voltage-controlled

Lamp type

LED exchangeable

Beam angle

Variable beam angle

Light output

Direct/indirect

Adjustability

Not adjustable

Nominal voltage

230 V

Suitable for pedestal/floor mounting

Yes

Surface protection

Lacquered

Max. system power

6 W

Length

120 mm

Type of wiring

Ending

Outer diameter

100 mm

No dim function

Yes

Colour housing

Anthracite, Black, Silver, White

Power factor

0.9

Light sharing

Symmetric

Connection type

Screwed terminal

Colour temperature

3000 K

Colour of light

White

Protection class

I

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

3 W

Luminous flux

330 lm, 660 lm

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour rendering index CRI

80-89

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Colour consistency (McAdam ellipse)

SDCM3

Light output

2-seitig

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Flickering value Pst LM

1

Rated luminous flux according to IEC 62722-2-1

330 lm, 660 lm

Number of poles

3

Stroboscope effect value SVM

0.4

Beam angle adjustable

Continuously variable

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig
