Article number 692405

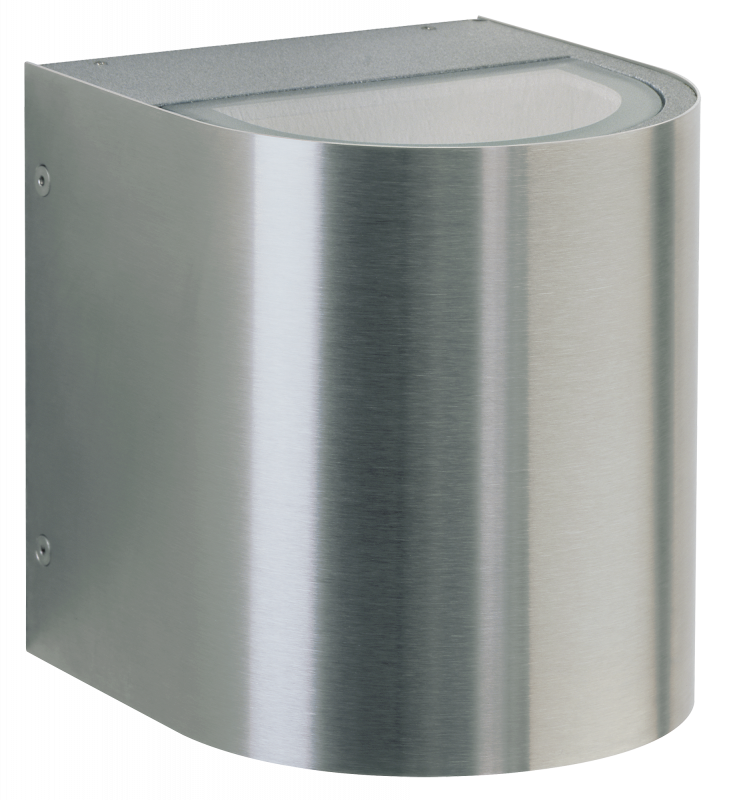

Wall floodlight

type ..2405

457,00

Specifications

stainless steel, light emission wide/wide, with 2 x LED 6,7 W, 600 lm each, 3000 K

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight 2,70 kg
Light output

2-seitig

Voltage type

AC/DC

Surface brushed

Yes

Suitable for pedestal/floor mounting

Yes

Suitable for number of lamps

2

Energy efficiency class of the provided exchangeable built-in lamp

E

Dimming phase cut-off

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Protection class

I

Beam angle

Medium beam 21-40°

Max. system power

13.4 W

With control gear

Yes

Colour rendering index CRI

80-89

Adjustability

Not adjustable

Unified Glare Ratio (UGR)

1

Length

155 mm

Colour of light

White

Luminous flux

1200 lm

Flickering value Pst LM

1

Max. number of luminaires per miniature circuit breaker C16

30

Light output

Direct/indirect

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker B16

20

Height/depth

155 mm

Degree of protection (IP)

IP44

No dim function

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Stroboscope effect value SVM

0.4

Colour consistency (McAdam ellipse)

SDCM3

Width

140 mm

Height

< 700 mm

Suitable for wall mounting

Yes

Type of wiring

Ending

Exchangeable control gear

Yes

Light sharing

Symmetric

Suitable for surface mounting

Yes

Power factor

0.9

Beam angle adjustable

Continuously variable

Shape

Eckig

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB
Dimensioned drawing
PDF | 8 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220336 - G 336, half-oval pane ESG show
