Data sheet
Article number 622395
Spit lamp
type ..2395
€174,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

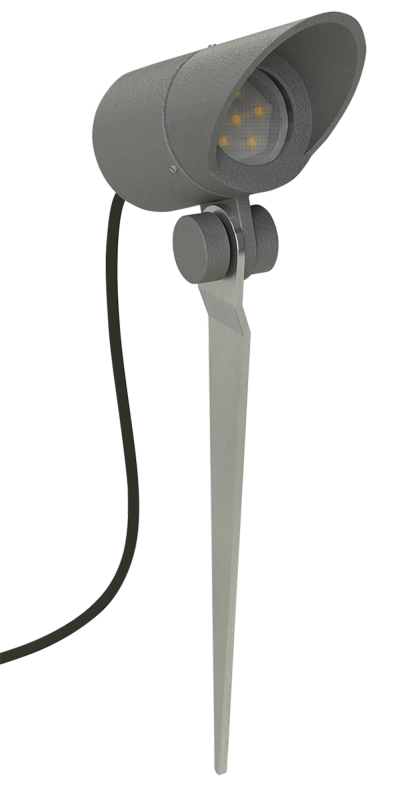

Spike spotlight type no. 2395, colour: anthracite, 1 x LED PAR 16, GU10, aluminium casting, swivelling 120 degrees, with 2,5 m cable and plug, borosilicate glass clear
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
LED exchangeable
Lamp holder
GU10
Suitable for lamp power
12.5 W
Material cover
Glass transparent
Documents and files
Assembly instruction

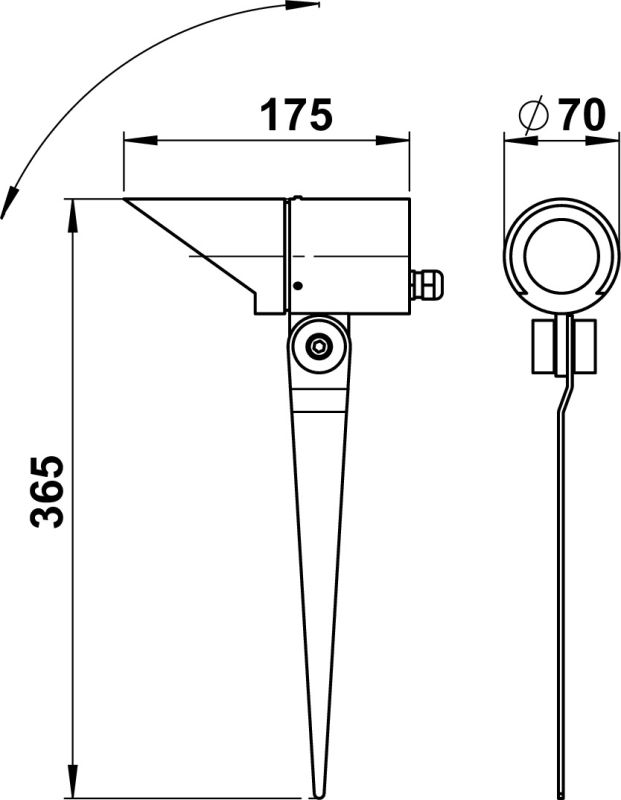

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 0,95 kg |
|---|---|
| Light output | 1-seitig |
| Adjustability | Swivelling |
| Suitable for pedestal/floor mounting | Yes |
| Lamp type | LED exchangeable |
| Suitable for number of lamps | 1 |
| Lamp holder | GU10 |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Voltage type | DC |
| Nominal voltage | 230 V |
| Dimming phase cut-off | Yes |
| Colour housing | Anthracite |
| Material cover | Glass transparent |
| Type of control gear | Not required |
| Dimming depending on control gear | Yes |
| Protection class | II |
| Light sharing | Symmetric |
| Beam angle | Medium beam 21-40° |
| Light output | Direct |
| Mounting Type | Spieß |
| Height/depth | 320 mm |
| Outer diameter | 60 mm |
| Suitable for lamp power | 12.5 W |
| Max. system power | 12.5 W |
| Power factor | 0.9 |
| Degree of protection (IP) | IP44 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Unified Glare Ratio (UGR) | 1 |
| Number of poles | 3 |
| No dim function | Yes |
| Height | < 700 mm |
| Beam angle adjustable | Continuously variable |
| Length | 75 mm |
| Type of wiring | Ending |
| Conductor cross section | 0 mm² |
| Connectable conductor cross section | 0 mm² |
| Shape | Eckig |
