Article number Select a color, please

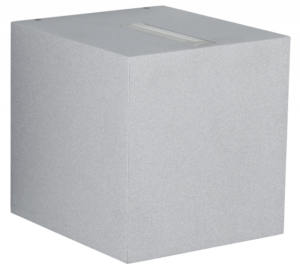

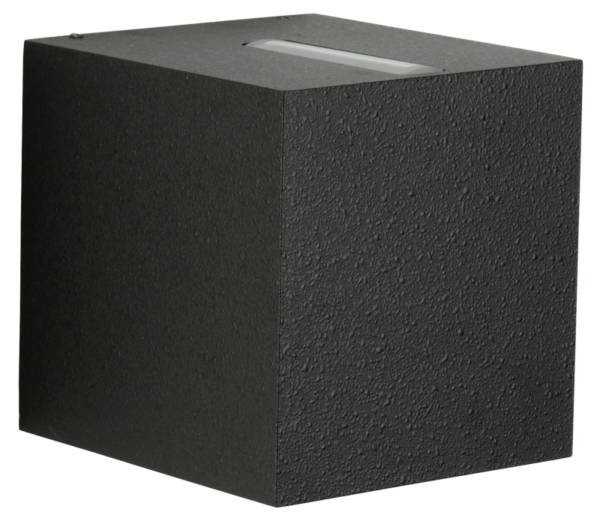

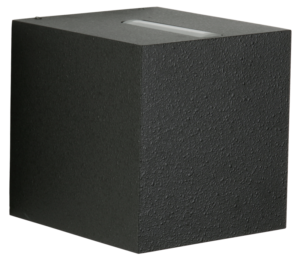

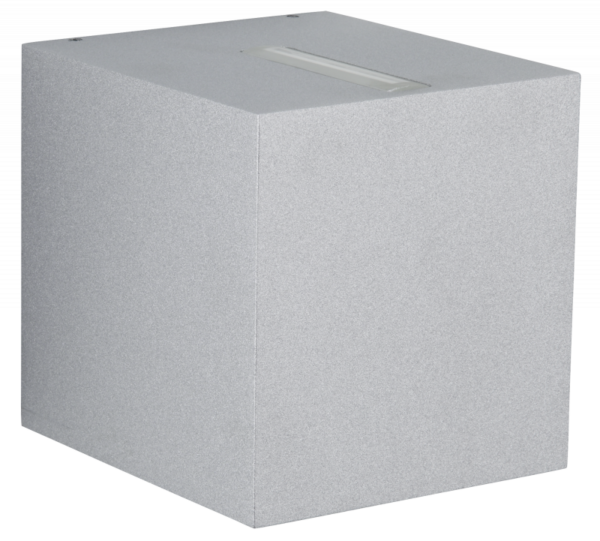

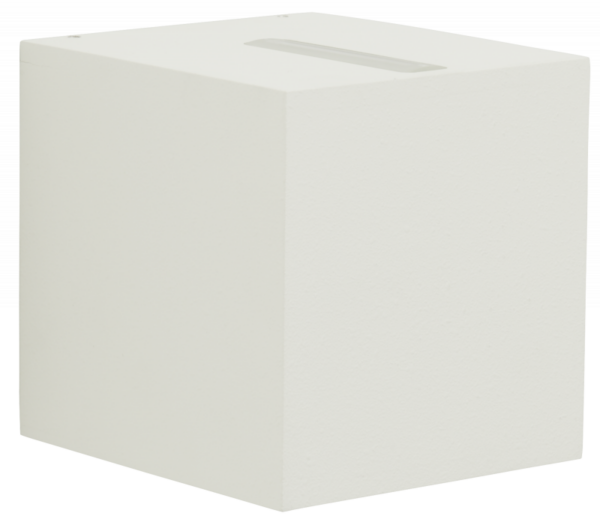

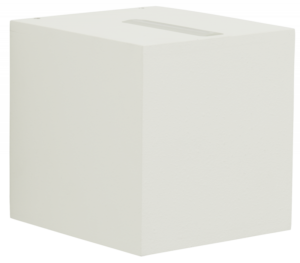

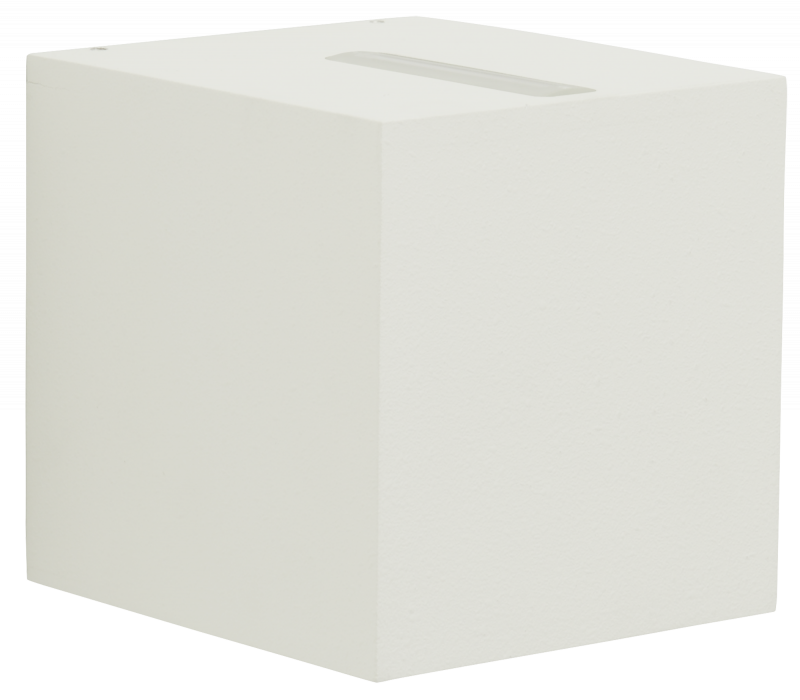

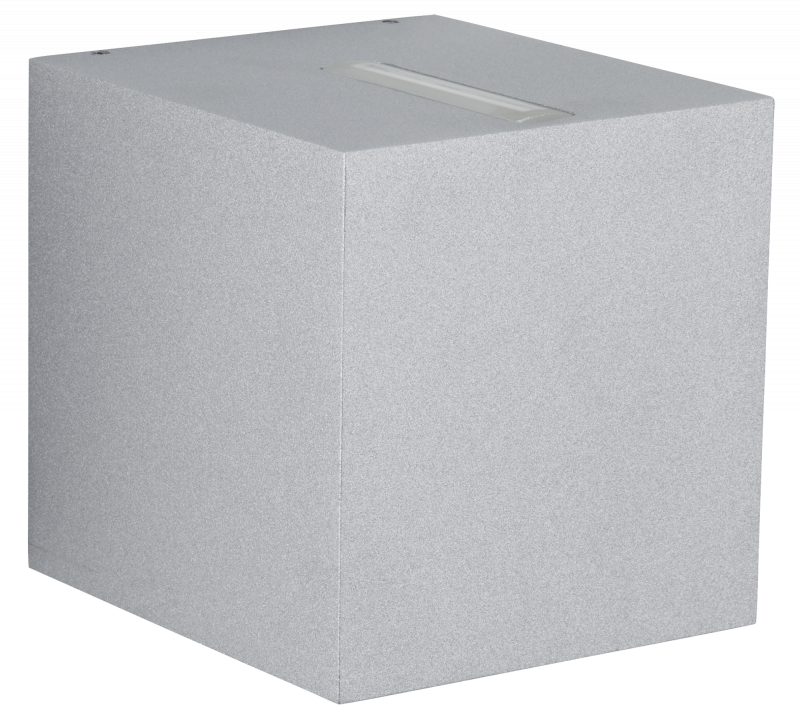

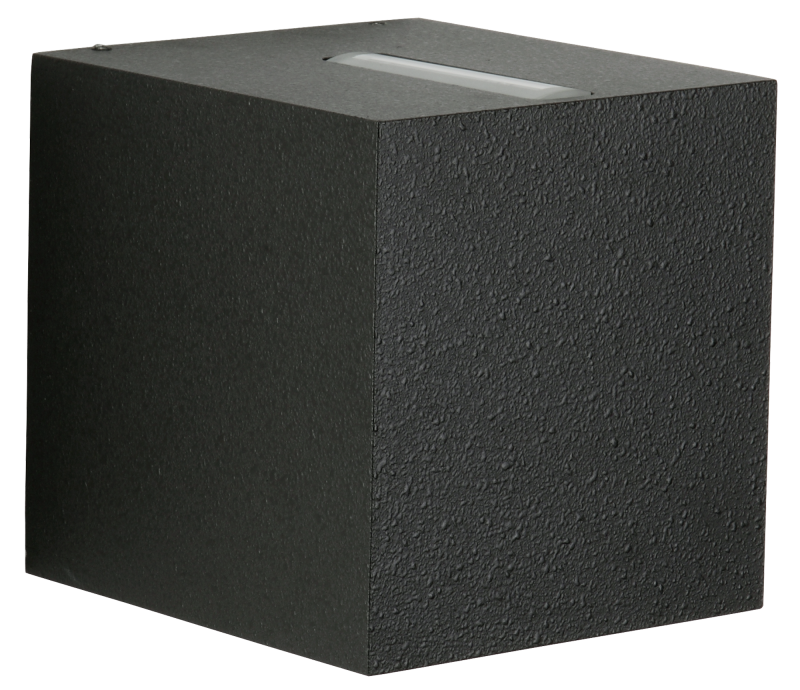

Wall floodlight

type ..2415

386,70443,40

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Voltage type

AC/DC

Suitable for pedestal/floor mounting

Yes

Dimming phase cut-off

Yes

With control gear

Yes

Suitable for number of lamps

2

Energy efficiency class of the provided exchangeable built-in lamp

E

Adjustability

Not adjustable

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Protection class

I

Length

155 mm

Light sharing

Symmetric

Beam angle

Medium beam 21-40°

Degree of protection (IP)

IP44

Surface protection

Lacquered

Height/depth

150 mm

Colour rendering index CRI

80-89

Max. system power

13.4 W

Light output

Direct/indirect

Luminous flux

1200 lm

Power factor

0.9

Colour of light

White

Light distributor

Focal lens

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Width

140 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

No dim function

Yes

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Flickering value Pst LM

1

Type of wiring

Ending

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 103 KB

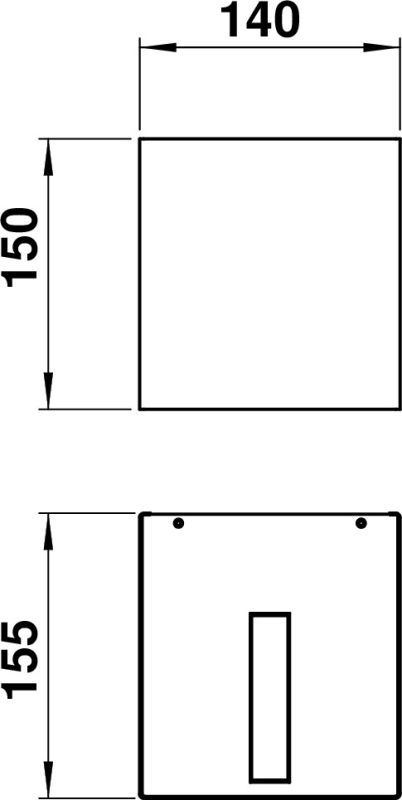

Dimensioned drawing
PDF | 24 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Offertext
For: 662415
TXT | 212 B
Offertext
For: 682415
TXT | 211 B
Offertext
For: 692415
TXT | 212 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220337 - G 337, prism glass, borosilicate show
