Article number Select a color, please

Base luminaire

type ..0532

164,30

Clear
Features
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

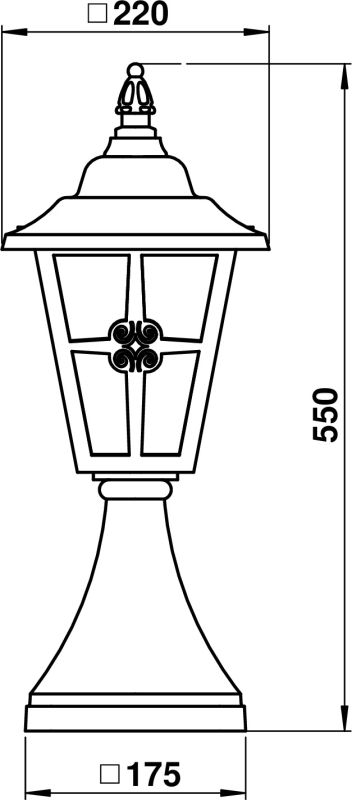

Dimensioned drawing
Offertext

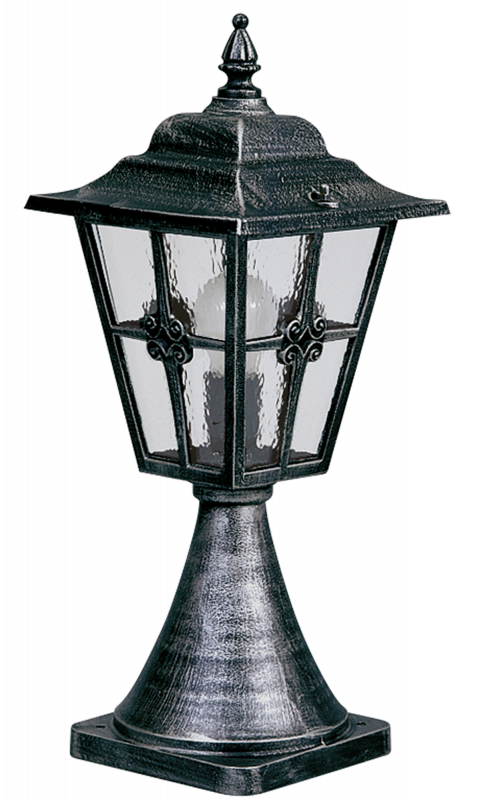

For: 600532
Offertext

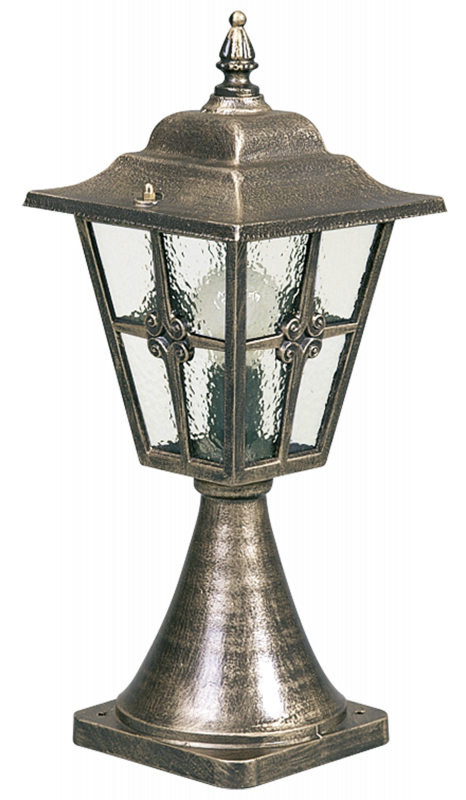

For: 650532
Offertext

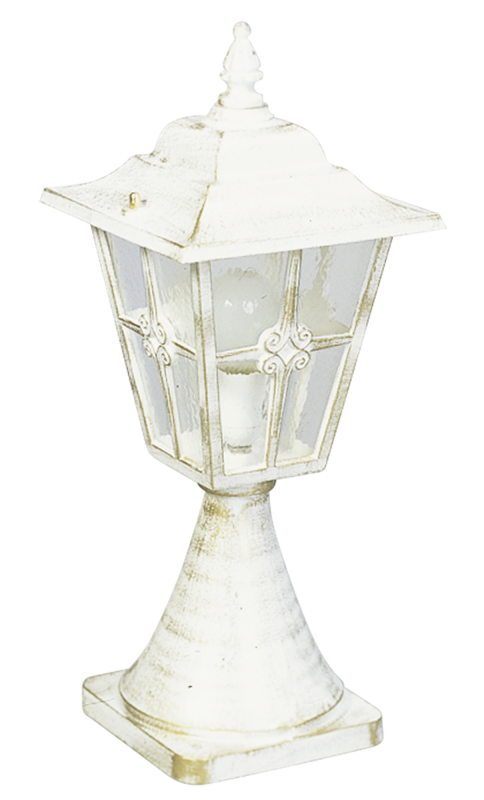

For: 670532
Full catalog 21 / 22
Spare parts
90220162 - G 162, set of washers (4 pieces) show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

With base plate

Yes

Lamp holder

E27

Lamp type

Incandescent lamp

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Black-Silver, Brown-Brass, White-Gold

Material cover

Glass transparent

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Height/depth

550 mm

Shape

Eckig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Diameter

220 mm

Width

220 mm

Power factor

1

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP23

Style

Landhaus

Height

< 700 mm
