Article number Select a color, please

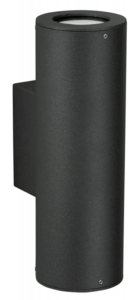

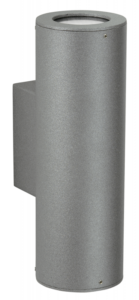

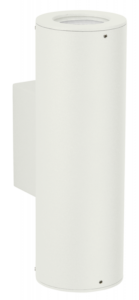

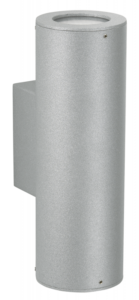

Wall floodlight

type ..2481

245,40282,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Voltage type

AC

Suitable for pedestal/floor mounting

Yes

Type of control gear

Not required

Suitable for number of lamps

2

Dimming phase cut-off

Yes

Degree of protection (IP)

IP44

Colour of light

White

Nominal voltage

230 V

Dimming depending on control gear

Yes

Adjustability

Not adjustable

No dim function

Yes

Light sharing

Symmetric

Surface protection

Lacquered

Height/depth

240 mm

Luminous flux

0 – 3000 lm

Length

120 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Power factor

1

Type of wiring

Ending

Beam angle

Medium beam 21-40°

Conductor cross section

2.5 mm²

Max. system power

100 W

Number of poles

3

Connection type

Screwed terminal

Connectable conductor cross section

0.75 – 2.5 mm²

Light output

Direct/indirect

Shape

Eckig

Light output

2-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Outer diameter

80 mm

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 75 KB

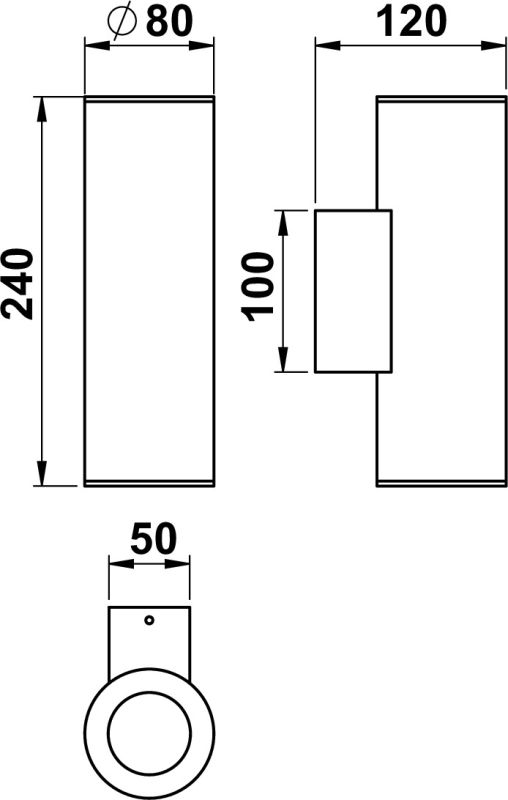

Dimensioned drawing
PDF | 97 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 622481
TXT | 164 B
Offertext
For: 662481
TXT | 164 B
Offertext
For: 682481
TXT | 164 B
Offertext
For: 692481
TXT | 158 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220486 - G 486, single-pane safety glass show
Accessories
90750105 - LED PAR 16 show
