Article number 696217

Wall and ceiling light

type ..6217

178,60

Description

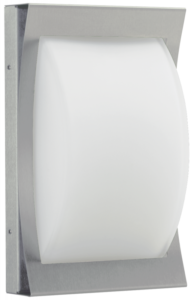

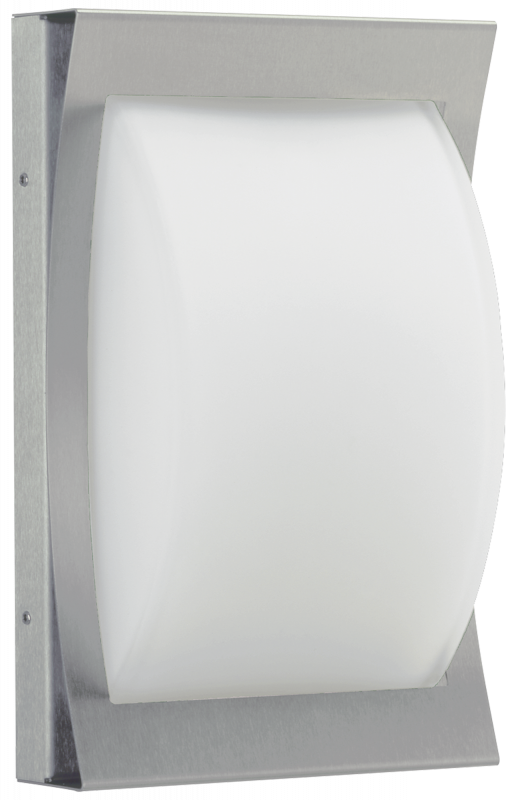

Albert wall and ceiling light 696217
in stainless steel with opal glass, mounting plate in cast aluminium. Suitable for 1 x A60 60 watt incandescent lamp, E27 socket, IP 44 protection class: 280 x 180 x 85 mm.

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

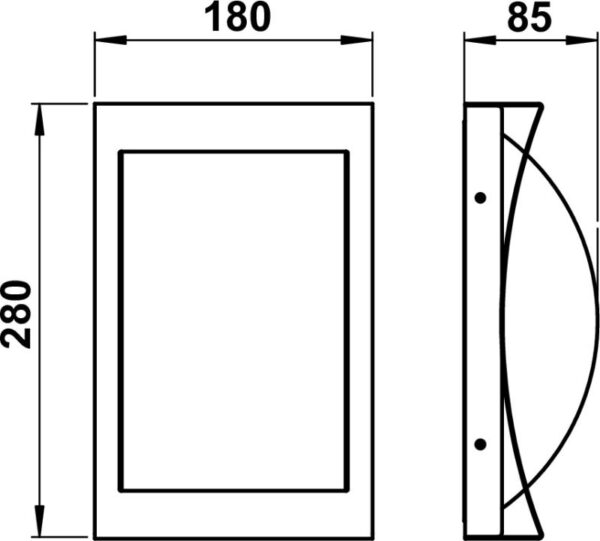

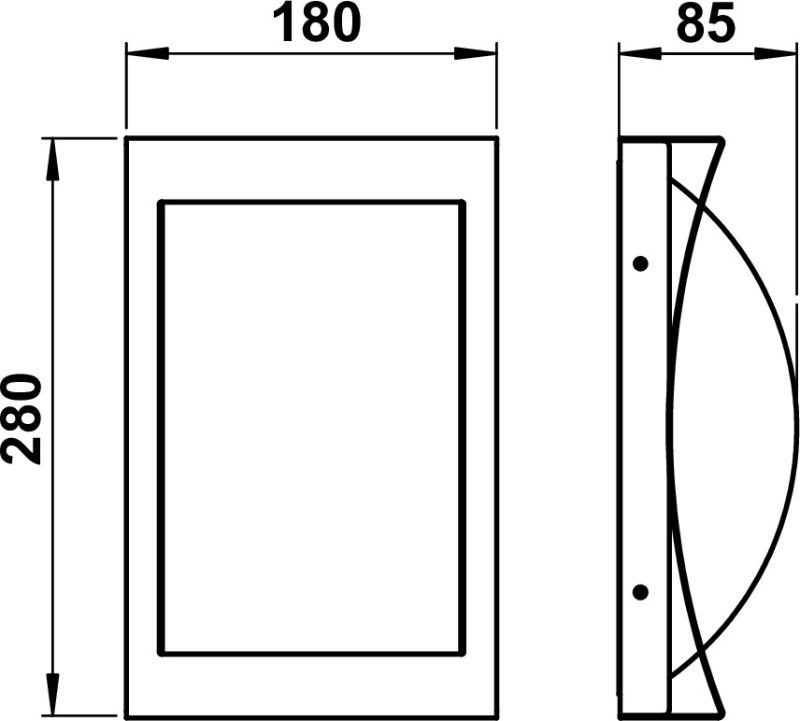

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210154 - G 154, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight 2,50 kg
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Suitable for surface mounting

Yes

Dimming phase cut-off

Yes

Number of poles

3

Protection class

I

Material cover

Glass opal

Dimming manufacturer's proprietary system

Yes

Lamp holder

E27

Suitable for number of lamps

1

Dimming phase cut-on

Yes

Material housing

Stainless steel

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Colour housing

Stainless steel

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

280 mm

Length

85 mm

Type of wiring

Ending

Connection type

Screwed terminal

Dimming depending on control gear

Yes

Unified Glare Ratio (UGR)

1

Beam angle

Open beam/diffuse

Photobiological safety according to EN 62471

RG1

Light output

1-seitig

Power factor

1

Width

180 mm

Suitable for wall mounting

Yes

Mounting Type

Wand

No dim function

Yes

Suitable for lamp power

1 – 75 W

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Max. system power

75 W

Style

Edelstahl, Modern

Degree of protection (IP)

IP44

Shape

Eckig
