Article number Select a color, please

Wall floodlight

type ..2491

272,70296,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Degree of protection (IP)

IP44

Suitable for pedestal/floor mounting

Yes

Type of control gear

Not required

Suitable for number of lamps

2

Dimming phase cut-off

Yes

Nominal voltage

230 V

Voltage type

AC

Colour of light

White

No dim function

Yes

Dimming depending on control gear

Yes

Adjustability

Not adjustable

Light sharing

Symmetric

Surface protection

Lacquered

Power factor

1

Height

< 700 mm

Width

100 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Luminous flux

0 – 3000 lm

Beam angle

Medium beam 21-40°

Number of poles

3

Max. system power

100 W

Type of wiring

Ending

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Light output

2-seitig

Connection type

Screwed terminal

Shape

Eckig

Suitable for wall mounting

Yes

Light output

Direct/indirect

Length

75 mm

Beam angle adjustable

Continuously variable

Height/depth

240 mm

Unified Glare Ratio (UGR)

1

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 103 KB

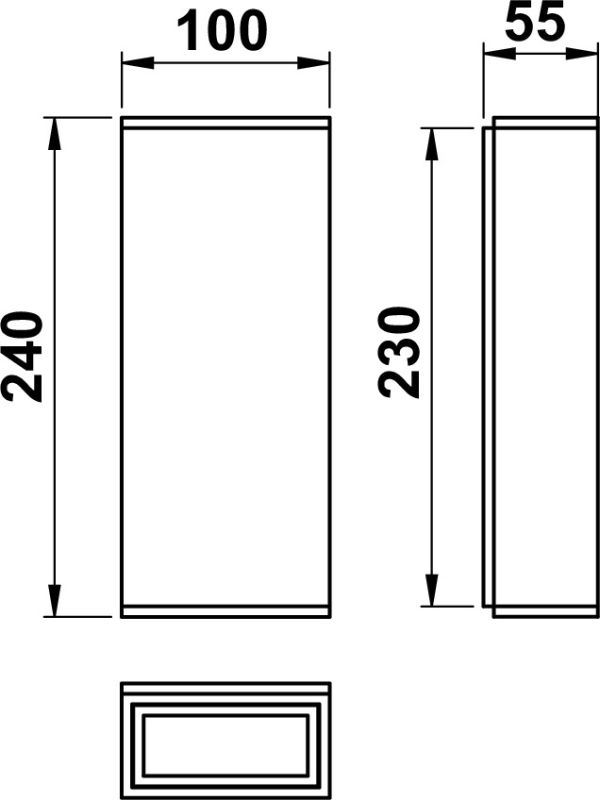

Dimensioned drawing
PDF | 89 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 622491
TXT | 164 B
Offertext
For: 662491
TXT | 164 B
Offertext
For: 682491
TXT | 164 B
Offertext
For: 692491
TXT | 164 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220486 - G 486, single-pane safety glass
Für: 662491, 682491, 692491
show
Accessories
90750105 - LED PAR 16 show
