Data sheet
Article number
Select a color, please
Wall floodlight
type ..2490
€389,10 – €447,50
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire has a 2-sided light emission (top/bottom).
The reflector lamp is replaceable.
Luminaire with integrated HF presence detector.
Material housing
Aluminium
Colour housing

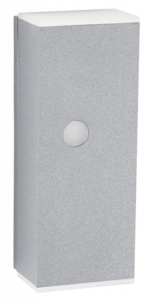

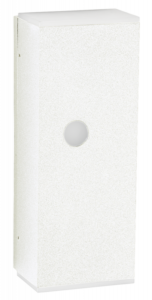

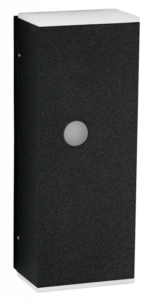

Anthracite, Black, Silver, White
With movement sensor
Yes
With HF presence detector
Yes
With light sensor
Yes
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

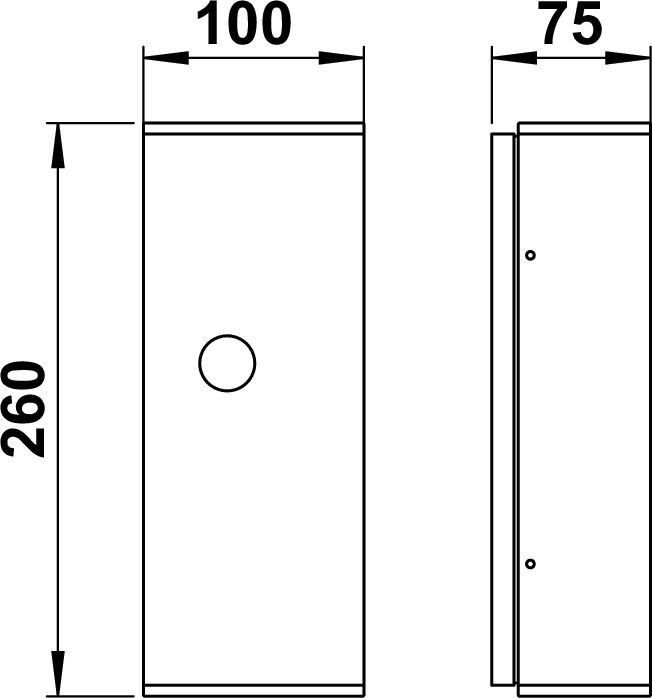

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 622490
Offertext
For: 662490
Offertext
For: 682490
Offertext
For: 692490
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Suitable for surface mounting | Yes |
| Length | 75 mm |
| Dimming manufacturer's proprietary system | Yes |
| With light sensor | Yes |
| Lamp type | HV halogen lamp |
| Material housing | Aluminium |
| Light sharing | Symmetric |
| Suitable for number of lamps | 2 |
| Surface protection | Lacquered |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Material cover | Glass transparent |
| Beam angle | Medium beam 21-40° |
| With movement sensor | Yes |
| Type of control gear | Not required |
| Suitable for pedestal/floor mounting | Yes |
| Nominal voltage | 230 V |
| Colour housing | Anthracite, Black, Silver, White |
| Dimming phase cut-off | Yes |
| Adjustability | Not adjustable |
| Lamp holder | GU10 |
| Voltage type | AC |
| Colour of light | White |
| Height/depth | 240 mm |
| Suitable for lamp power | 50 W |
| Width | 100 mm |
| Power factor | 0.9, 1 |
| Type of wiring | Ending |
| Light output | Direct/indirect |
| Degree of protection (IP) | IP44 |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| No dim function | Yes |
| Max. system power | 100 W |
| Luminous flux | 0 – 3000 lm |
| Colour temperature | 3000 K |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Coverage | 360 ° |
| With HF presence detector | Yes |
| Shape | Angular, Eckig |
| Light output | 2-seitig |
| Height | < 700 mm |
| Suitable for wall mounting | Yes |
| Beam angle adjustable | Continuously variable |
| Unified Glare Ratio (UGR) | 1 |
Related products
-

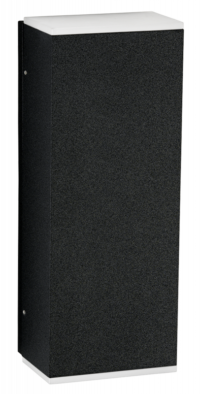

Wall floodlight type ..2491excl. VAT
