Article number Select a color, please

Wall lamp

type ..1822

164,50

Clear
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass structured
Documents and files
Assembly instruction

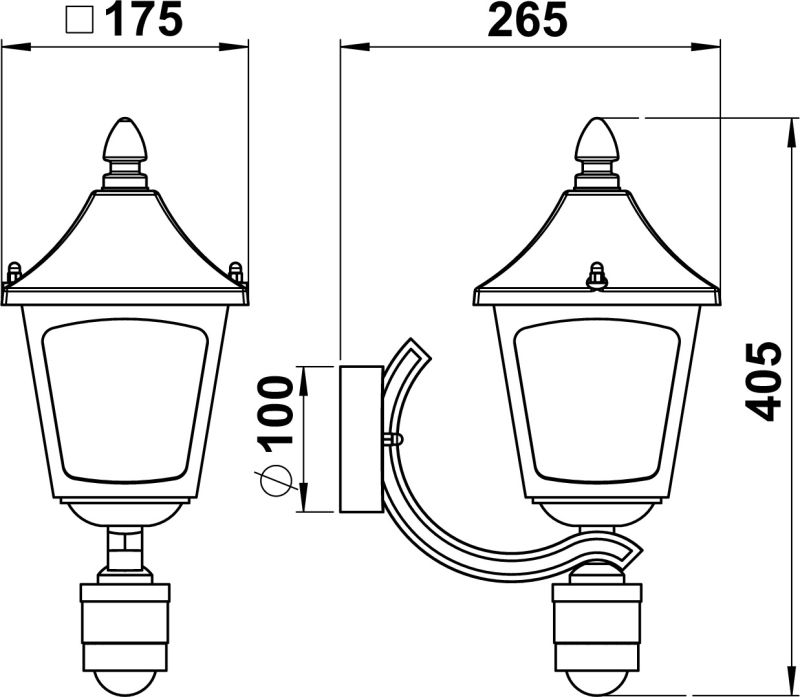

Dimensioned drawing
Instruction manual Sensor
Offertext
For: 601822
Offertext
For: 651822
Offertext
For: 671822
Full catalog 21 / 22
Spare parts
90210045 - G 45, glass insert, square, clear show
Accessories
601005 - Corner bracket round type ..1005, Black-Silver
Für: 601822
show
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651822
show
671005 - Corner bracket round type ..1005, White-Gold
Für: 671822
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Colour housing

Black-Silver, Brown-Brass, White-Gold

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Material cover

Glass structured

Lamp holder

E27

Suitable for number of lamps

1

Material housing

Aluminium

Number of poles

3

Conductor cross section

2.5 mm²

Voltage type

AC

Nominal voltage

230 V

Beam angle

Open beam/diffuse

Suitable for surface mounting

Yes

Type of control gear

Not required

Protection class

I

Light sharing

Symmetric

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

405 mm

Length

265 mm

Type of wiring

Ending

Height

< 700 mm

Dimming depending on control gear

Yes

Light output

Direct

With light sensor

Yes

Width

175 mm

Lowest energy efficiency class of the exchangeable lamp

E

Style

Landhaus

Power factor

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

With movement sensor

Yes

Connection type

Screwed terminal

Coverage

360 °

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Light output

1-seitig

Light type

Wandleuchte

Degree of protection (IP)

IP44

Surface protection housing

Lacquered

Mounting Type

Wand

Unified Glare Ratio (UGR)

1

Shape

Eckig

No dim function

Yes

Photobiological safety according to EN 62471

RG1
