Article number Select a color, please

Wall light

type ..3225

198,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing

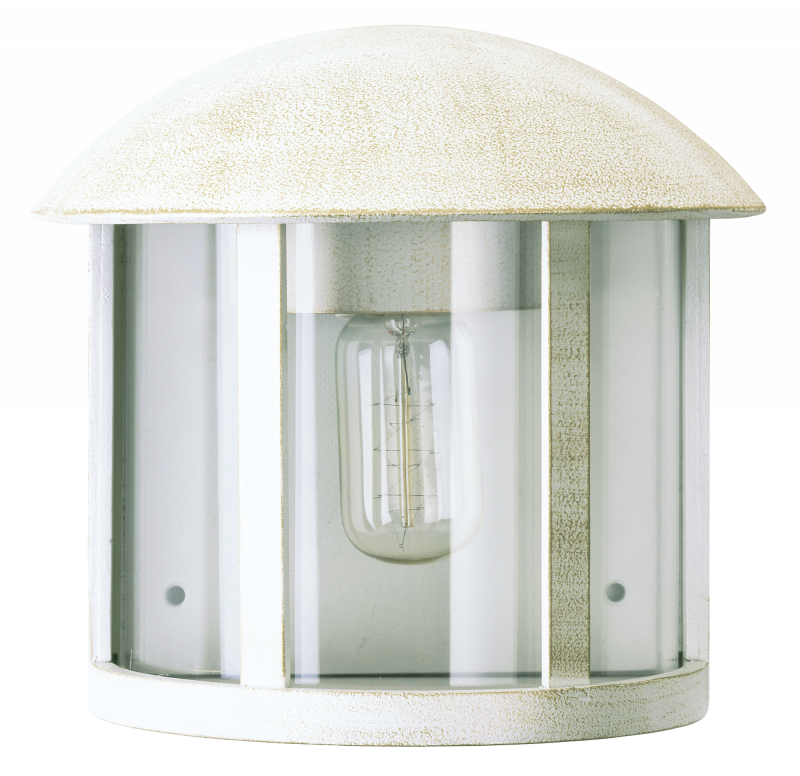

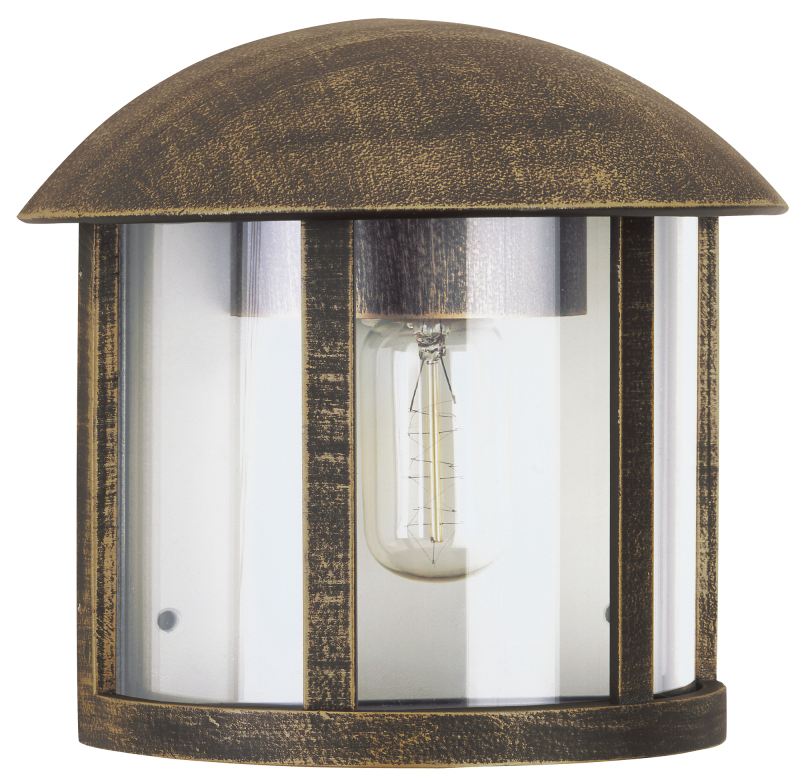

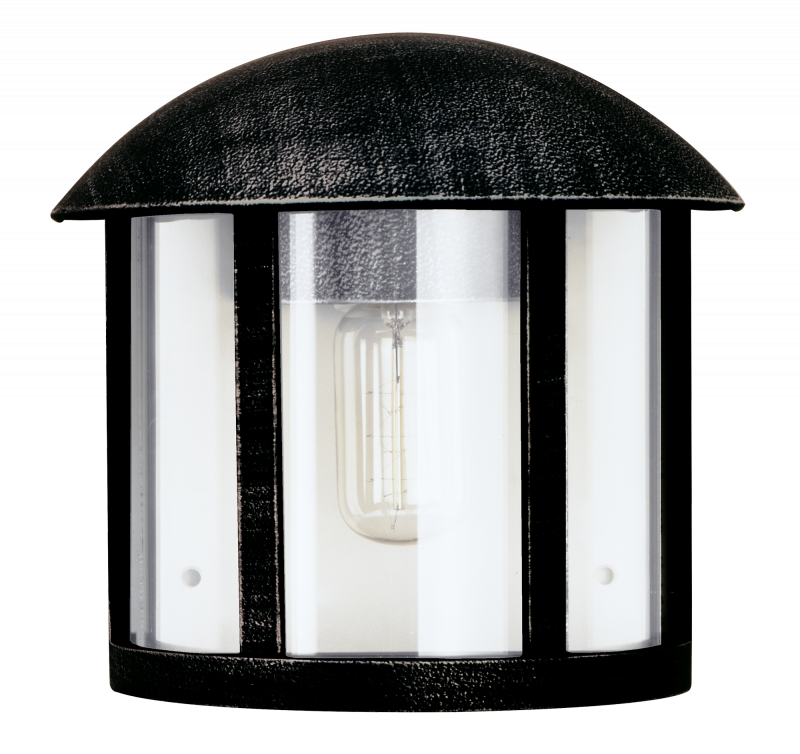

Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, structured
Weight N/A
Suitable for wall mounting

Yes

Dimming manufacturer's proprietary system

Yes

Connection type

Screwed terminal

Dimming phase cut-on

Yes

Type of wiring

Ending

Suitable for surface mounting

Yes

Length

130 mm

Height/depth

215 mm

Protection class

I

Dimming phase cut-off

Yes

Voltage type

AC

Suitable for number of lamps

1

Nominal voltage

230 V

No dim function

Yes

Max. system power

75 W

Power factor

1

Width

235 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Number of poles

3

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Dimming depending on control gear

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

Type of control gear

Not required

Degree of protection (IP)

IP44

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Light output

Direct

Height

< 700 mm

Surface protection housing

Lacquered

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 25 KB

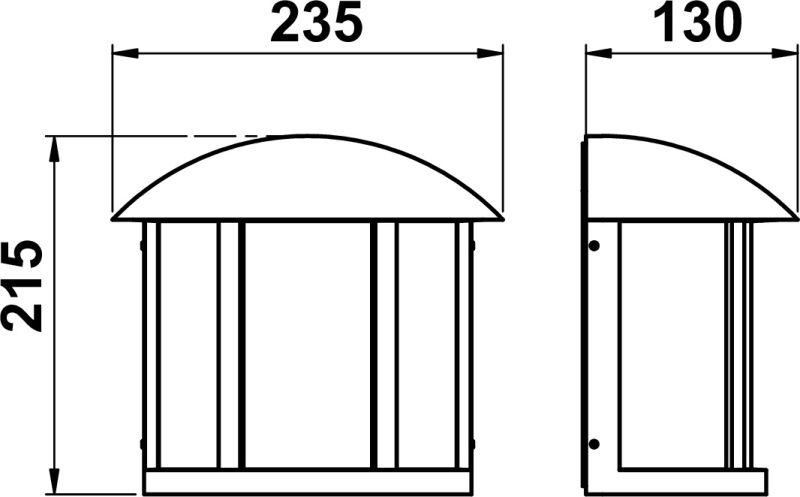

Dimensioned drawing
PDF | 59 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Offertext
For: 603225
TXT | 195 B
Offertext
For: 653225
TXT | 195 B
Offertext
For: 673225
TXT | 195 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260367 - G-367, acrylic tube, clear, half shell show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
