Article number Select a color, please

Wall lamp

type ..1842

379,70

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

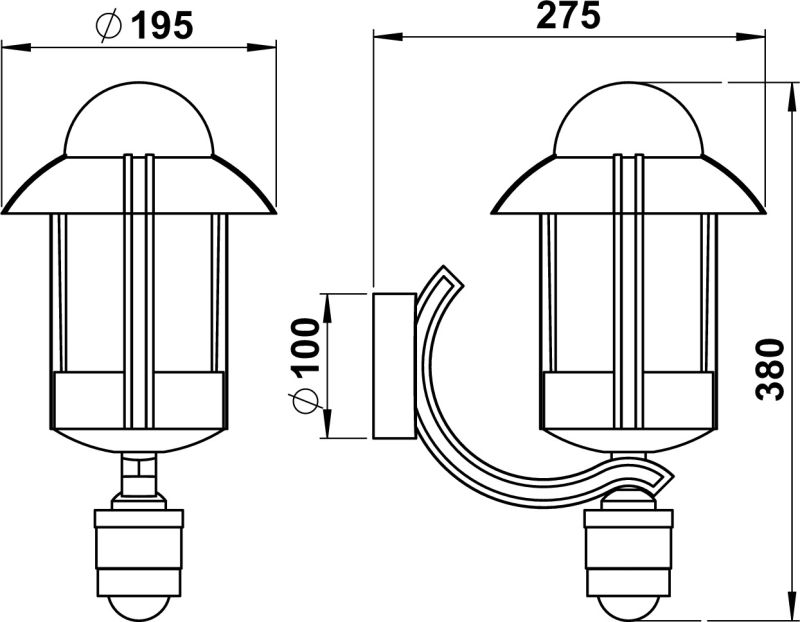

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 601842
Offertext
For: 651842
Offertext
For: 671842
Full catalog 21 / 22
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
601005 - Corner bracket round type ..1005, Black-Silver
Für: 601842
show
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651842
show
671005 - Corner bracket round type ..1005, White-Gold
Für: 671842
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Type of wiring

Ending

Power factor

1

Type of control gear

Not required

Suitable for lamp power

1 – 75 W

With light sensor

Yes

Dimming phase cut-on

Yes

Colour housing

Black-Silver, Brown-Brass, White-Gold

Material housing

Aluminium

Outer diameter

195 mm

Suitable for number of lamps

1

Voltage type

AC

Nominal voltage

230 V

Material cover

Glass opal

Dimming phase cut-off

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lamp holder

E27

Protection class

I

Suitable for wall mounting

Yes

Light sharing

Symmetric

Suitable for surface mounting

Yes

No dim function

Yes

Number of poles

3

Width

195 mm

Height/depth

380 mm

Dimming manufacturer's proprietary system

Yes

Length

275 mm

Degree of protection (IP)

IP44

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

With movement sensor

Yes

Light type

Wandleuchte

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Coverage

360 °

Max. system power

75 W

Dimming depending on control gear

Yes

Beam angle

Open beam/diffuse

Photobiological safety according to EN 62471

RG1

Height

< 700 mm

Surface protection housing

Lacquered

Mounting Type

Wand

Unified Glare Ratio (UGR)

1

Light output

1-seitig

Style

Landhaus

Shape

Eckig
