Article number Select a color, please

Wall lamp

type ..1852

169,40

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp holder
E27
Suitable for lamp power
1 - 57 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Max. system power

57 W

Suitable for number of lamps

1

Height/depth

260 mm

Dimming phase cut-off

Yes

Light output

Direct

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-on

Yes

Degree of protection (IP)

IP44

Outer diameter

260 mm

Length

330 mm

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Number of poles

3

Connection type

Screwed terminal

Protection class

I

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Power factor

1

Dimming depending on control gear

Yes

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 35 KB

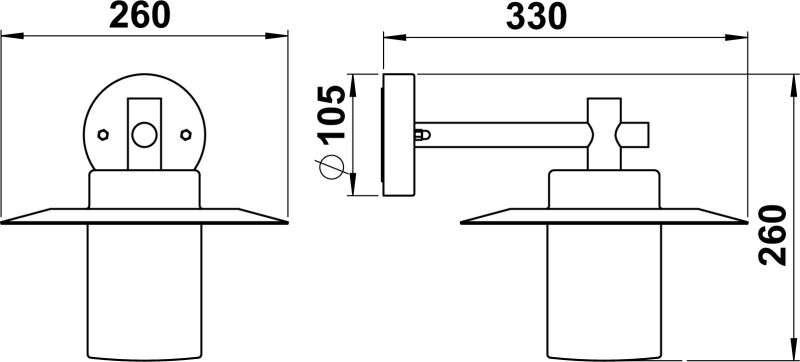

Dimensioned drawing
PDF | 94 KB
Light distribution curve - Eulumdat/LDT
LDT | 1018 B
Offertext
For: 651852
TXT | 75 B
Offertext
For: 661852
TXT | 75 B
Offertext
For: 681852
TXT | 75 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651852
show
661005 - Corner bracket round type ..1005, Black
Für: 661852
show
681005 - Corner bracket round type ..1005, White
Für: 681852
show
90750100 - LED Retrofit Classic show
90750102 - LED Retrofit Filament show
