Article number Select a color, please

Wall floodlight

type ..2133

99,70114,70

Clear
Features
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
100 W
Material cover
Glass transparent
Documents and files
Assembly instruction

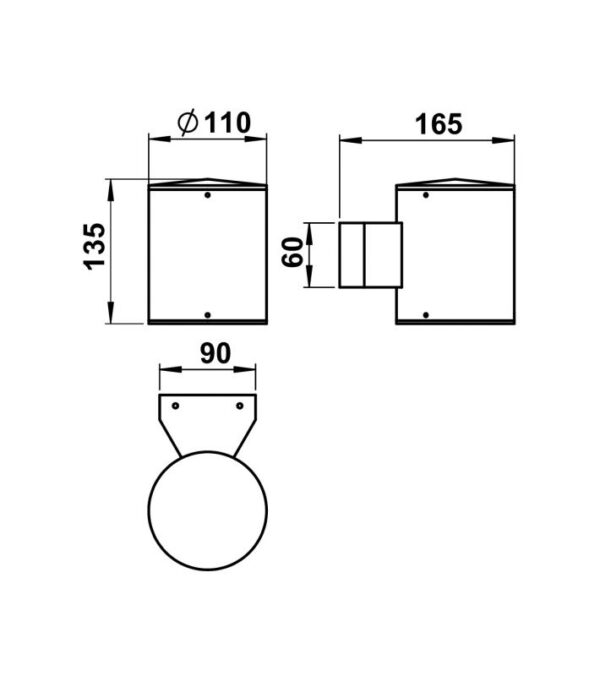

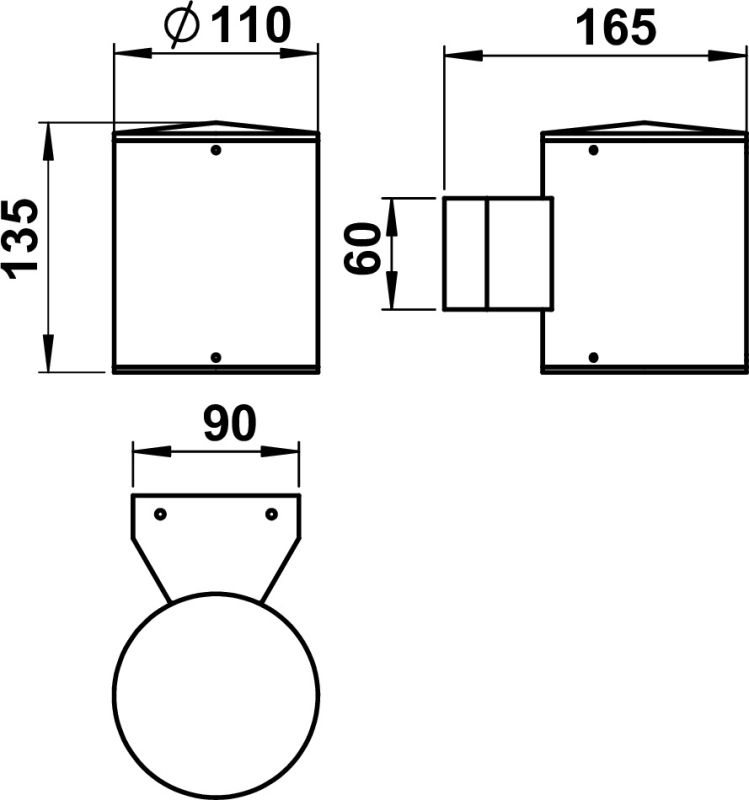

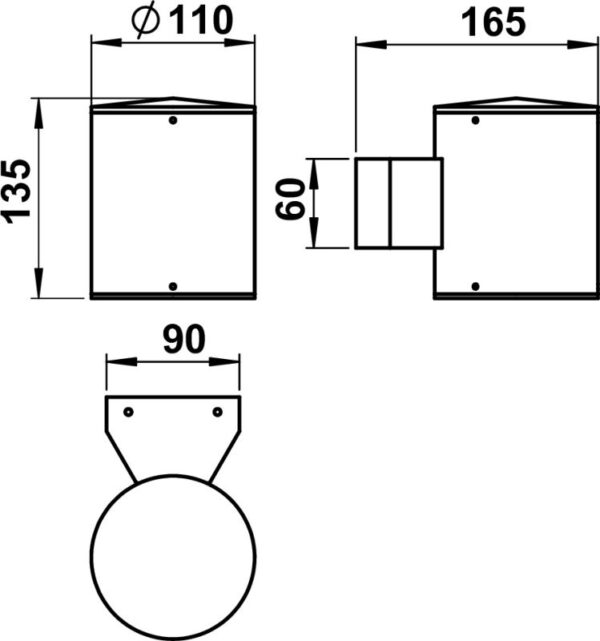

Dimensioned drawing
Light distribution curve
Offertext
For: 662133
Offertext
For: 682133
Offertext
For: 692133
Full catalog 21 / 22
Accessories
90750106 - LED PAR 30 show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Voltage type

AC

Adjustability

Not adjustable

Colour housing

Black, Silver, White

Material housing

Aluminium

Suitable for number of lamps

1

Surface protection

Lacquered

Beam angle

Medium beam 21-40°

Power factor

1

Nominal voltage

230 V

Light output

Direct

Dimming depending on control gear

Yes

Material cover

Glass transparent

Lamp type

HV halogen lamp

Type of control gear

Not required

Lamp holder

E27

Dimming phase cut-off

Yes

Suitable for pedestal/floor mounting

Yes

Protection class

I

Degree of protection (IP)

IP23

Outer diameter

110 mm

Suitable for lamp power

100 W

Type of wiring

Ending

Light sharing

Symmetric

No dim function

Yes

Length

165 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

100 W

Conductor cross section

2.5 mm²

Number of poles

3

Connection type

Screwed terminal

Connectable conductor cross section

0.75 – 2.5 mm²

Height/depth

135 mm

Luminous flux

0 – 3000 lm

Shape

Angular, Eckig

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1
