Article number Select a color, please

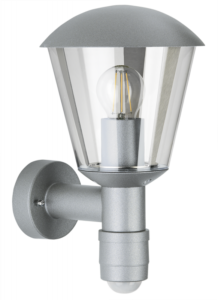

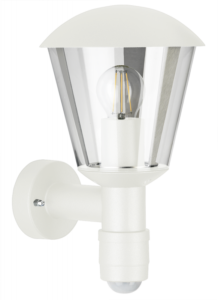

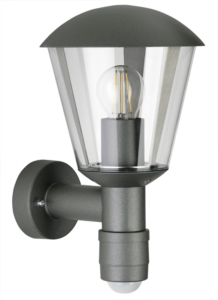

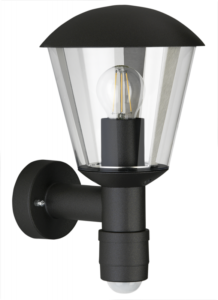

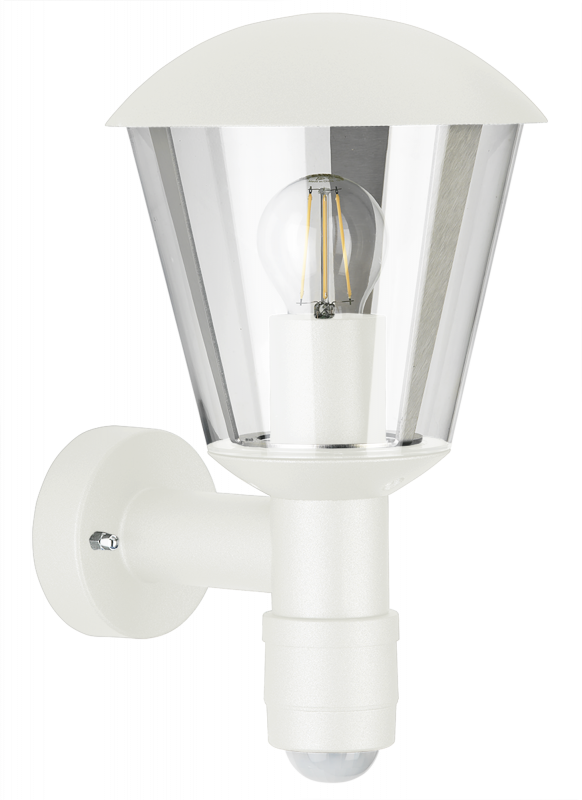

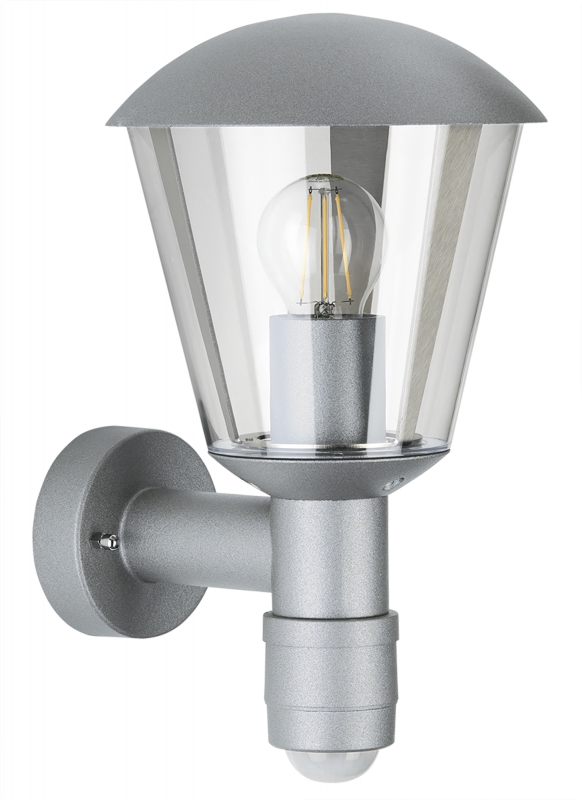

Wall lamp

type ..1855

265,60305,50

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Suitable for wall mounting

Yes

Max. system power

75 W

Type of control gear

Not required

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Length

240 mm

Dimming manufacturer's proprietary system

Yes

Suitable for number of lamps

1

Suitable for surface mounting

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Nominal voltage

230 V

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

Voltage type

AC

Outer diameter

200 mm

Height/depth

350 mm

Impact strength

IK08

Number of poles

3

Degree of protection (IP)

IP54

Connection type

Screwed terminal

Coverage

360 °

Light output

Direct

Mounting Type

Wand

Protection class

I

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Unified Glare Ratio (UGR)

1

Power factor

1

Type of wiring

Ending

Light output

1-seitig

Height

< 700 mm

Style

Edelstahl, Modern

Surface protection housing

Lacquered

Light type

Wandleuchte

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 115 KB

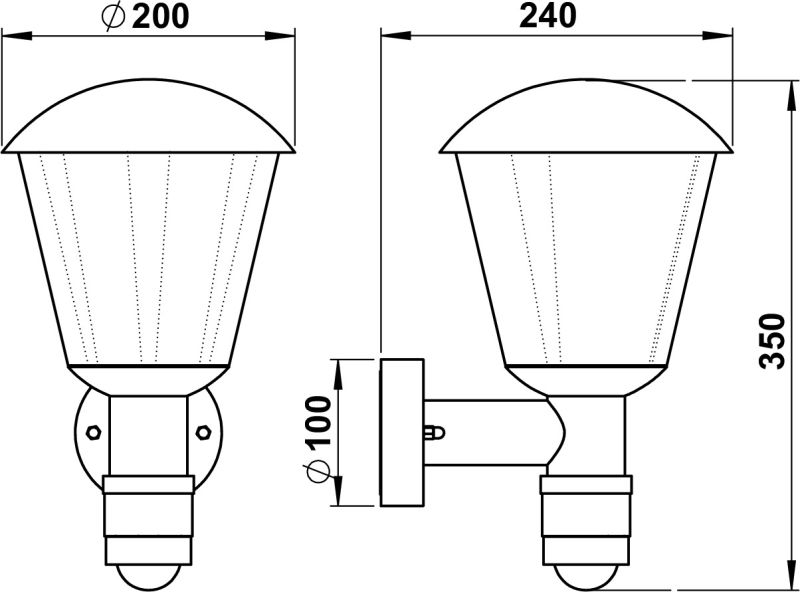

Dimensioned drawing
PDF | 104 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 879 B
Offertext
For: 621855
TXT | 237 B
Offertext
For: 661855
TXT | 249 B
Offertext
For: 681855
TXT | 249 B
Offertext
For: 691855
TXT | 250 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260141 - G 141, lamp glasses L-750 show
Accessories
621005 - Corner bracket round type ..1005, Anthracite
Für: 621855
show
661005 - Corner bracket round type ..1005, Black
Für: 661855
show
681005 - Corner bracket round type ..1005, White
Für: 681855
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 691855
show
90750100 - LED Retrofit Classic show
90750102 - LED Retrofit Filament show
