Data sheet
Article number
Select a color, please

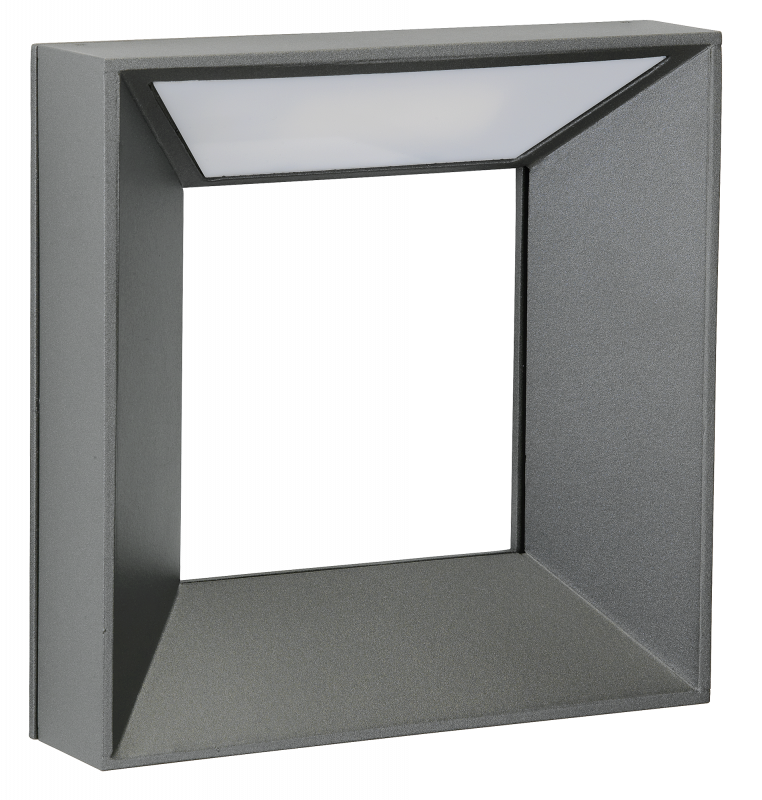

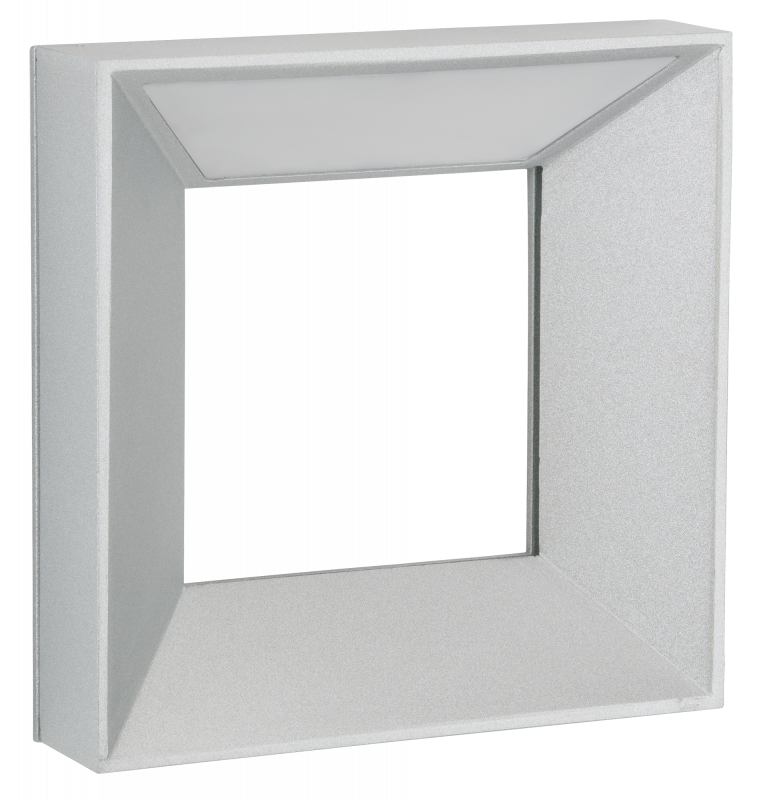

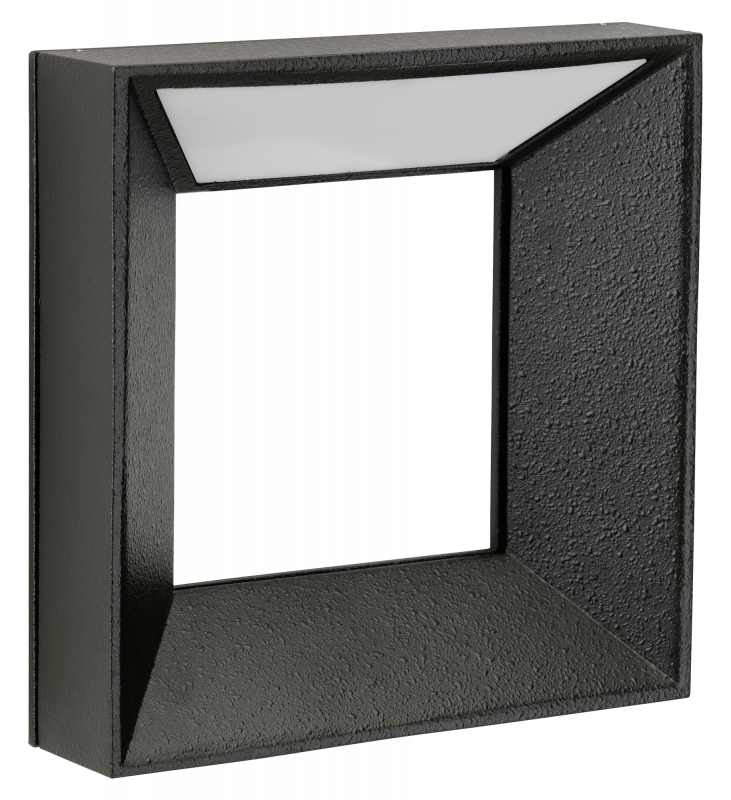

Wall lamp
type ..6406
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
7.2 W
Rated luminous flux according to IEC 62722-2-1
880 lm
Colour temperature
3000 K
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Surface protection housing | Lacquered |
| Stroboscope effect value SVM | 0.4 |
| Height | < 700 mm |
| Max. system power | 7.2 W |
| Colour of light | White |
| Connection type | Screwed terminal |
| Type of wiring | Ending |
| Light outlet | Direct |
| Light type | Wandleuchte |
| Light outlet | 1-seitig |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Degree of protection (IP) | IP44 |
| Photobiological safety according to EN 62471 | RG1 |
| Light sharing | Symmetric |

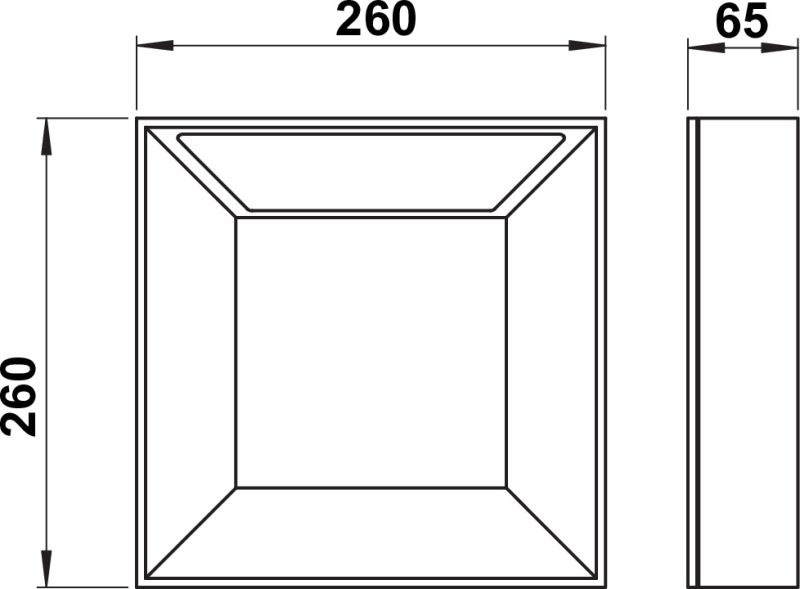

| Height/depth | 260 mm |
| Mounting method | Wand |
| Unified Glare Ratio (UGR) | 1 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Suitable for wall mounting | Yes |
| Exchangeable control gear | Yes |
| With control gear | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Dimming phase cut-off | No, Yes |
| Type of control gear | LED operating device voltage-controlled |
| No dim function | Yes |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Power factor | 0.9 |
| Colour rendering index CRI | 80-89 |
| Width | 260 mm |
| Length | 65 mm |
| Dimming depending on control gear | Yes |
| Beam angle | Open beam/diffuse |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Shape | Eckig |
Documents and files
Spare parts
| 90220460 - G 460, frosted flashed glass ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Surface protection housing | Lacquered |
| Stroboscope effect value SVM | 0.4 |
| Height | < 700 mm |
| Max. system power | 7.2 W |
| Colour of light | White |
| Connection type | Screwed terminal |
| Type of wiring | Ending |
| Light outlet | Direct |
| Light type | Wandleuchte |
| Light outlet | 1-seitig |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Degree of protection (IP) | IP44 |
| Photobiological safety according to EN 62471 | RG1 |
| Light sharing | Symmetric |
| Height/depth | 260 mm |
| Mounting method | Wand |
| Unified Glare Ratio (UGR) | 1 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Suitable for wall mounting | Yes |
| Exchangeable control gear | Yes |
| With control gear | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Dimming phase cut-off | No, Yes |
| Type of control gear | LED operating device voltage-controlled |
| No dim function | Yes |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Power factor | 0.9 |
| Colour rendering index CRI | 80-89 |
| Width | 260 mm |
| Length | 65 mm |
| Dimming depending on control gear | Yes |
| Beam angle | Open beam/diffuse |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Shape | Eckig |
