Article number Select a color, please

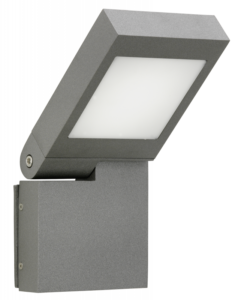

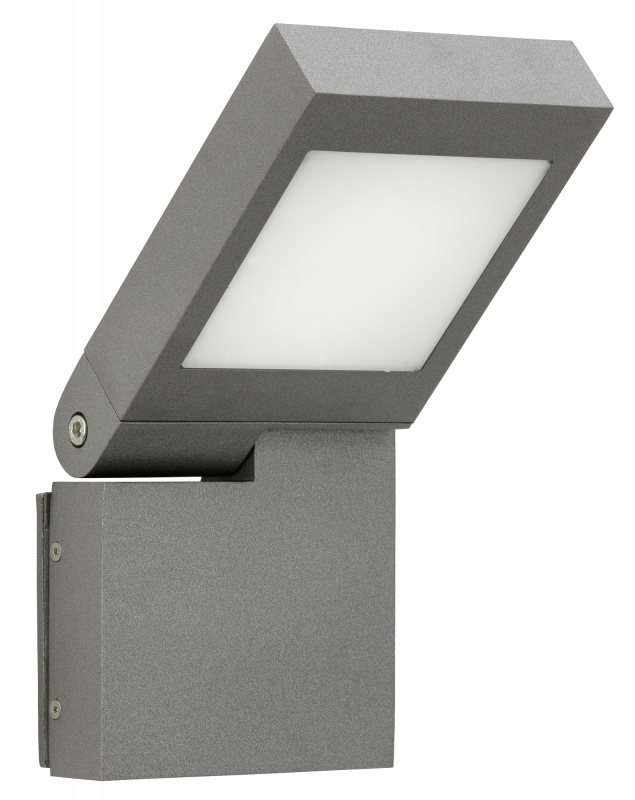

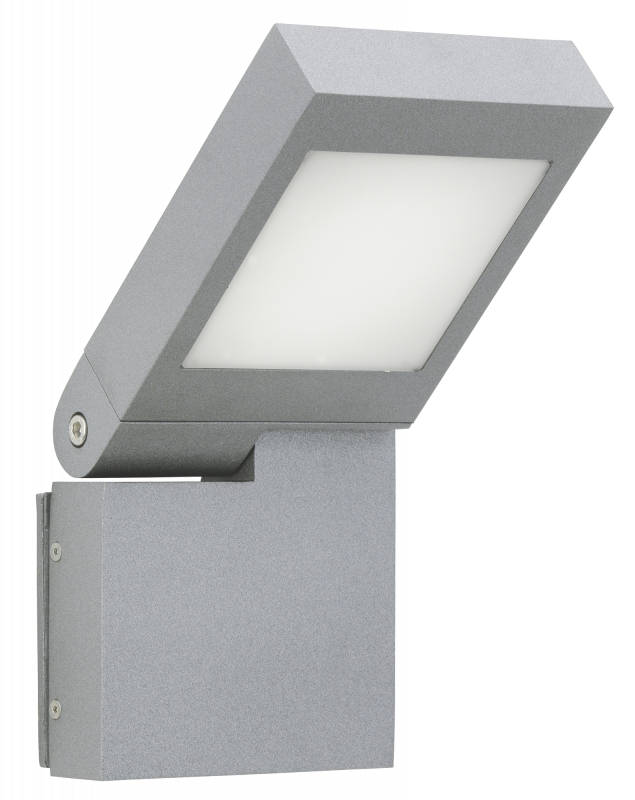

Wall lamp

type no. 620111

494,90568,90

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1400 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

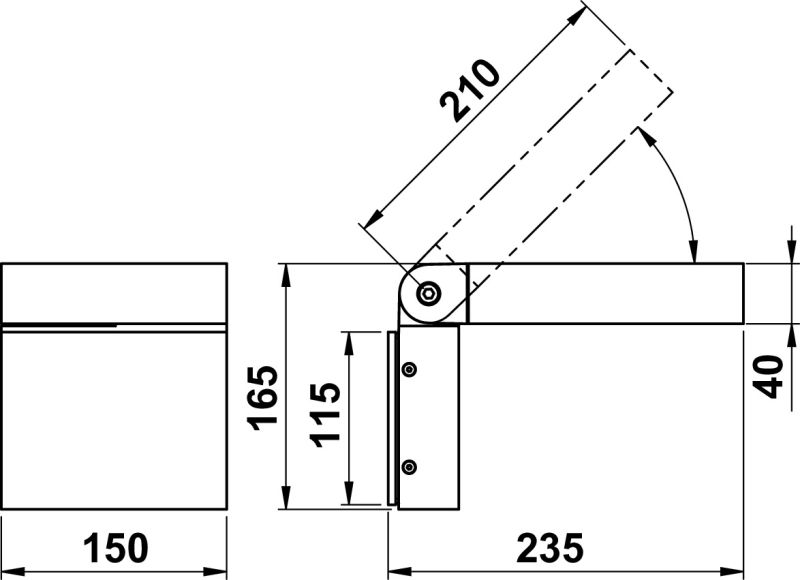

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext

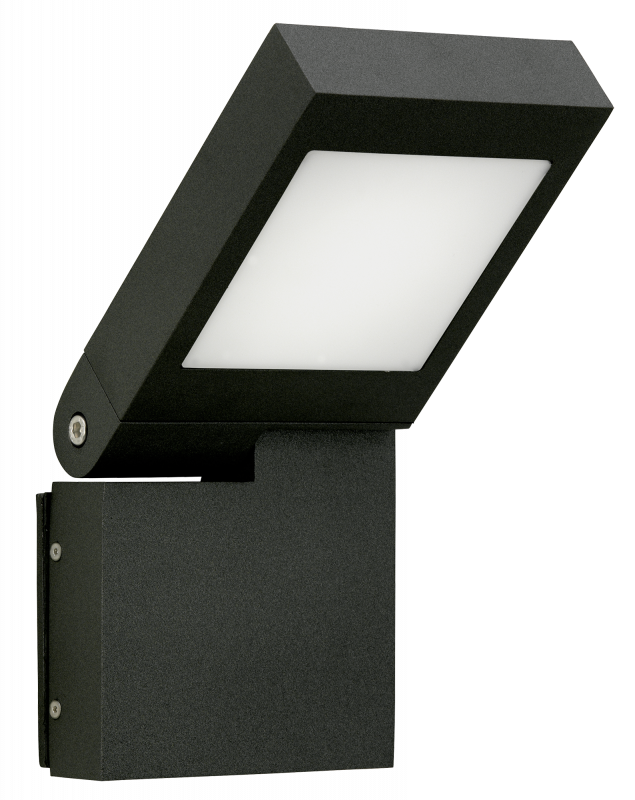

For: 660111
Offertext

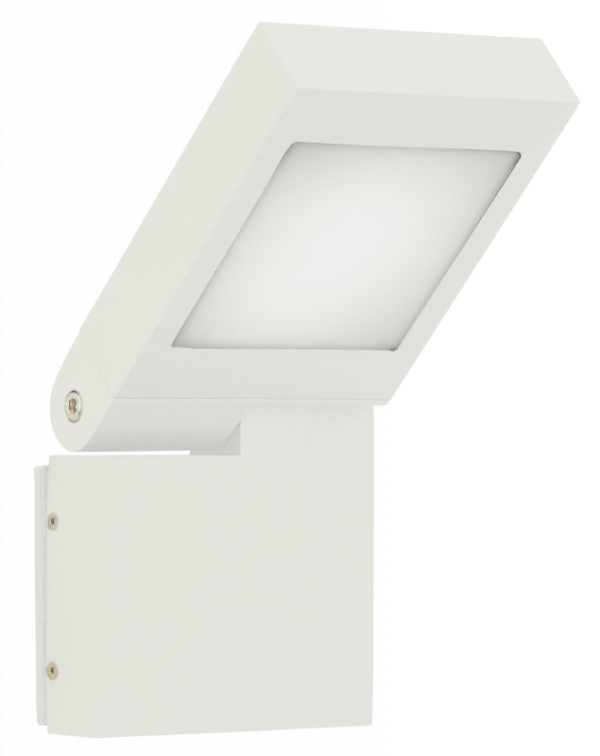

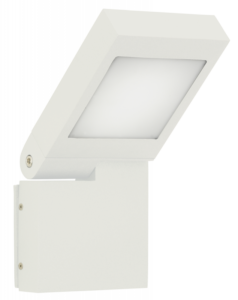

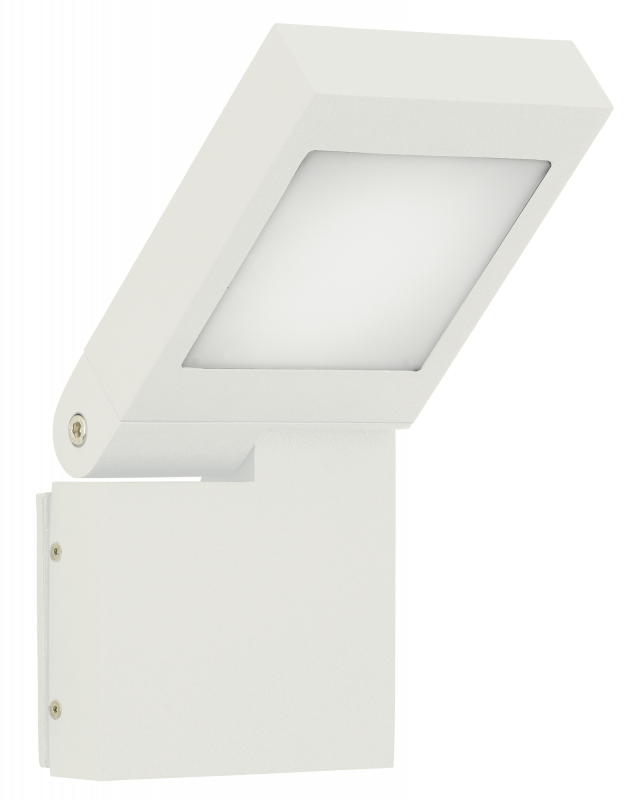

For: 680111
Offertext
For: 690111
Offertext
For: 620111
Full catalog 21 / 22

Additional information

Weight N/A
Length

150 mm

Colour housing

Anthracite, Black, Silver, White

Dimming depending on control gear

Yes

Material housing

Aluminium

Voltage type

AC/DC

With light source

Yes

Suitable for number of lamps

1

With control gear

Yes

Suitable for lamp power

16 W

Colour rendering index CRI

80-89

Material cover

Glass opal

Nominal voltage

230 V

Rated luminous flux according to IEC 62722-2-1

1400 lm

Lamp type

LED exchangeable

Suitable for surface mounting

Yes

Suitable for ceiling mounting

Yes

Max. system power

16 W

Type of wiring

Ending

Protection class

I

Degree of protection (IP)

IP54

Type of control gear

LED operating device voltage-controlled

Connection type

Screwed terminal

Height/depth

445 mm

Colour of light

White

No dim function

Yes

Light output

1-seitig

Light type

Wandleuchte

Stroboscope effect value SVM

0.4

Surface protection housing

Lacquered

Height

< 700 mm

Mounting Type

Decke, Wand

Colour temperature

3000 K

Unified Glare Ratio (UGR)

1

Width

235 mm

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Highest energy efficiency class of the exchangeable lamp

A++

Power factor

0.9

Number of poles

3

Energy efficiency class of the provided exchangeable built-in lamp

E

Light output

Direct

Conductor cross section

2.5 mm²

Colour consistency (McAdam ellipse)

SDCM3

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Exchangeable control gear

Yes

Photobiological safety according to EN 62471

RG1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for wall mounting

Yes

Beam angle adjustable

Continuously variable

Shape

Eckig
