Data sheet
Awaiting product image
Awaiting product image

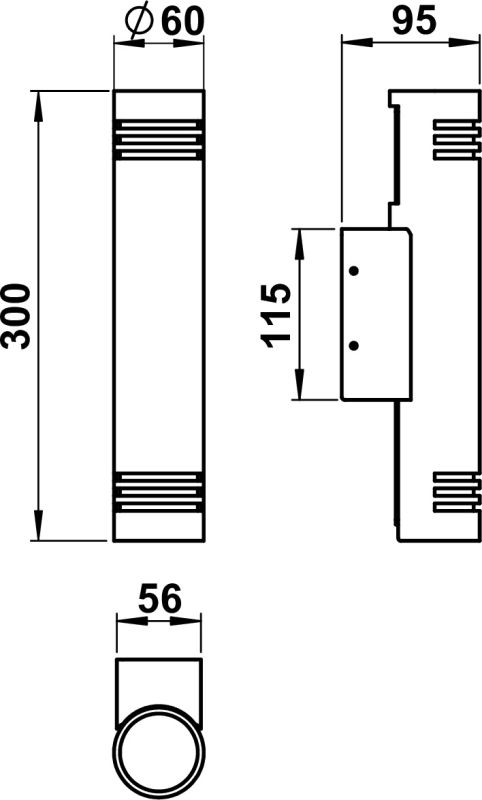

Wall light Stainless steel Dimensioned drawing Article 690208
Placeholder
Article number 690208

Wall light

type ..0208

€256,00

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

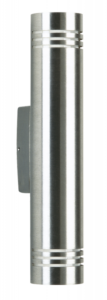

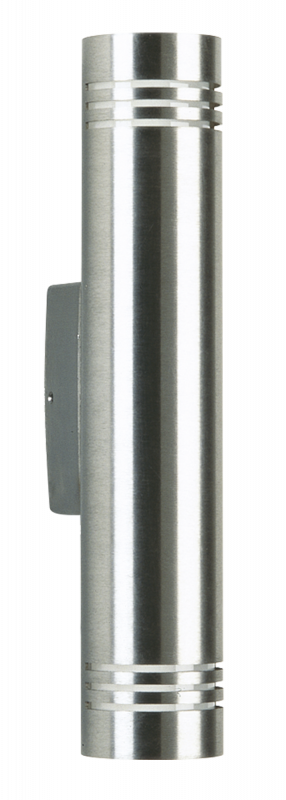

Albert wall lamp 690208
made of stainless steel, with borosilicate glass and mounting plate made of cast aluminium. Equipped for 2 mains voltage halogen lamps QT 14 40 Watt, socket G9.protection class IP 44 – protection class : d 60 x 300 x 90 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
80 W
Material cover
Glass structured
Documents and files
Assembly instruction
download PDF 22.82 KB
Dimensioned drawing
download PDF 21.76 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210345 - G 345, borosilicate tube with glass show
Accessories
691000 - Corner bracket type ..1000 show
90750103 - LED Pin show

Additional information

Weight 1,40 kg
Max. system power

80 W
Lamp holder

G9
Material housing

Stainless steel
Colour housing

Stainless steel
Lamp type

HV halogen lamp
Degree of protection (IP)

IP44
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Material cover

Glass structured
Suitable for number of lamps

2
Dimming phase cut-off

Yes
Dimming phase cut-on

Yes
Suitable for surface mounting

Yes
Voltage type

AC
Nominal voltage

230 V
Type of control gear

Not required
Dimming depending on control gear

Yes
Power factor

1
Height/depth

300 mm
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Light output

Direct/indirect
Style

Edelstahl, Modern, Stainless Steel
Outer diameter

60 mm
Light output

2-seitig
Height

< 700 mm
Mounting Type

Wand
Photobiological safety according to EN 62471

RG1
Unified Glare Ratio (UGR)

1
Type of wiring

Ending
Protection class

I
Light type

Wandleuchte
Conductor cross section

2.5 mm²
Suitable for wall mounting

Yes
No dim function

Yes
Suitable for lamp power

80 W
Surface protection housing

Untreated
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Length

95 mm
Number of poles

3
Connection type

Screwed terminal
Shape

Angular, Eckig
