Article number Select a color, please

Spit lamp

type ..2156

142,90

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

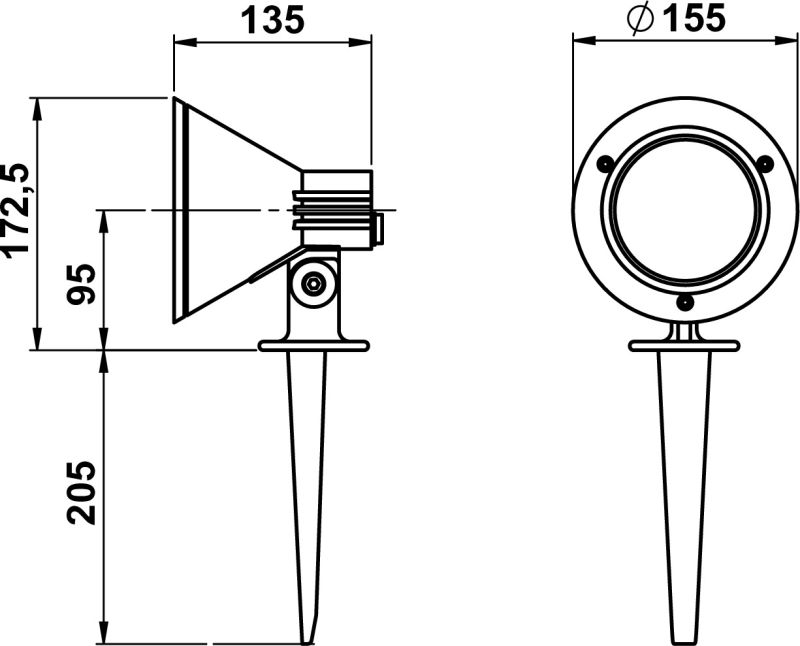

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662156
Offertext
For: 682156
Full catalog 21 / 22
Spare parts
90220159 - G 159, borosilicate glass round disc show
Accessories
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Colour housing

Black, White

Height/depth

172.5 mm

Light output

Direct

Adjustability

Rotating and swivelling

Power factor

1

Suitable for pedestal/floor mounting

Yes

Voltage type

AC

Suitable for number of lamps

1

Light distributor

Reflector

Surface protection

Lacquered

Length

135 mm

Nominal voltage

230 V

Dimming depending on control gear

Yes

Material cover

Glass transparent

Lamp type

HV halogen lamp

Type of control gear

Not required

Beam angle

Medium beam 21-40°

Lamp holder

E27

Dimming phase cut-off

Yes

Reflector

High-gloss

Material housing

Aluminium

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Light sharing

Symmetric

Degree of protection (IP)

IP54

Protection class

I

Conductor cross section

0 mm²

Number of poles

3

Connectable conductor cross section

0 mm²

No dim function

Yes

Outer diameter

155 mm

Suitable for lamp power

75 W

Luminous flux

0 – 3000 lm

Mounting Type

Spieß

Light output

1-seitig

Height

< 700 mm

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Shape

Eckig
