Data sheet
Article number 690214
Wall light
type ..0214
€199,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

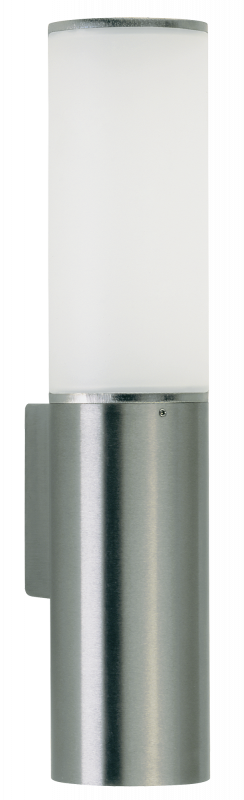

Albert wall lamp 690214
made of stainless steel with acrylic tube matted, mounting plate made of cast aluminium. Suitable for 1 x energy saving lamp max. 20W, socket E27.protection class IP 44 – protection class : d 80 x 385 x 120 mm
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Plastic, structured
Documents and files
Assembly instruction

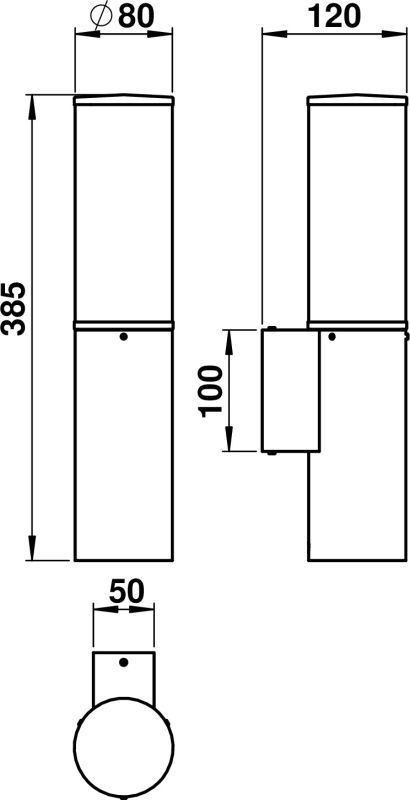

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 1,20 kg |
|---|---|
| Light output | Direct |
| Lamp type | LED exchangeable |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Material housing | Stainless steel |
| Colour housing | Stainless steel |
| Beam angle | Open beam/diffuse |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Type of control gear | Not required |
| Dimming manufacturer's proprietary system | Yes |
| Degree of protection (IP) | IP44 |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Suitable for surface mounting | Yes |
| Height/depth | 385 mm |
| Material cover | Plastic, structured |
| Nominal voltage | 230 V |
| Voltage type | AC |
| No dim function | Yes |
| Height | < 700 mm |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for lamp power | 1 – 20 W |
| Max. system power | 20 W |
| Power factor | 1 |
| Dimming depending on control gear | Yes |
| Suitable for wall mounting | Yes |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Mounting Type | Wand |
| Outer diameter | 80 mm |
| Unified Glare Ratio (UGR) | 1 |
| Light sharing | Symmetric |
| Length | 120 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Surface protection housing | Untreated |
| Light type | Wandleuchte |
| Light output | 1-seitig |
| Style | Edelstahl, Modern |
| Width | 80 mm |
| Shape | Eckig |
