Article number 690237

Wall light

type ..0237

229,20

Specifications

Albert wall lamp 690237 in stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : d 210 x 345 x 255 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 1,80 kg
Style

Edelstahl, Modern

Voltage type

AC

Type of control gear

Not required

Protection class

I

Suitable for number of lamps

1

Light sharing

Symmetric

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Height/depth

345 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Nominal voltage

230 V

No dim function

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Outer diameter

210 mm

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Dimming depending on control gear

Yes

Mounting Type

Wand

Light type

Wandleuchte

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Length

255 mm

Connection type

Screwed terminal

Number of poles

3

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 25 KB

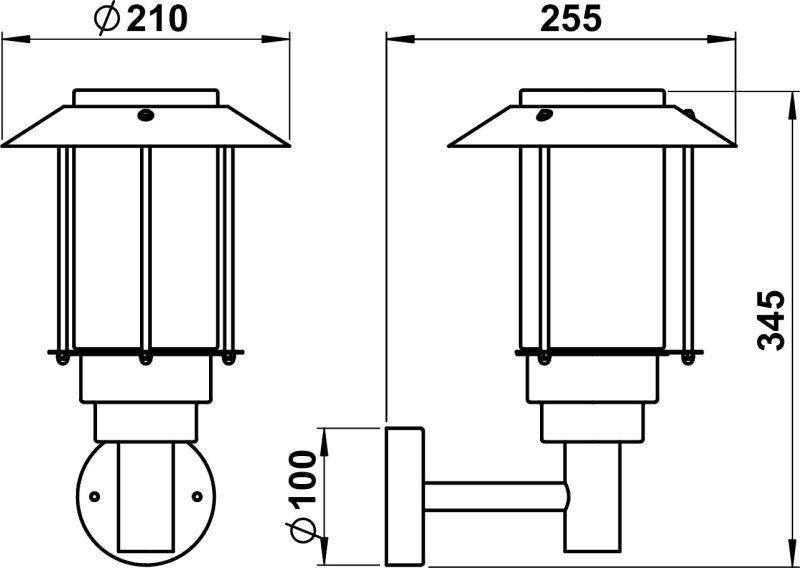

Dimensioned drawing
PDF | 24 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210259 - G 259, glass opal matt Thread 84,5 mm -long show
Accessories
691004 - Corner bracket type ..1004 show
90750100 - LED Retrofit Classic show
