Data sheet
Article number
Select a color, please
Wall light
type ..0280
€362,60 – €417,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
810 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Documents and files
Assembly instruction

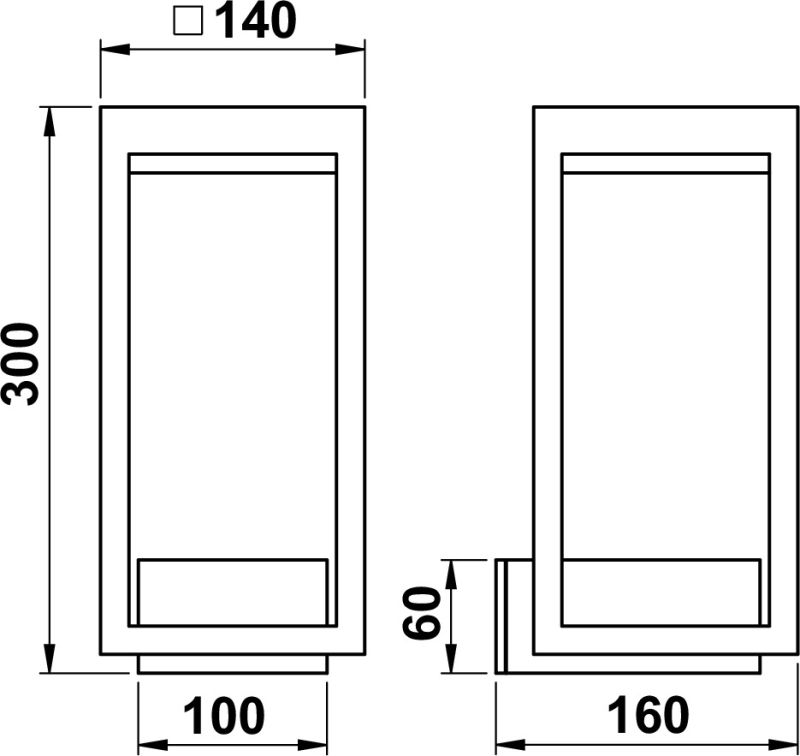

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620280
Offertext
For: 660280
Offertext
For: 680280
Offertext
For: 690280
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Power factor | 0.9 |
| With control gear | Yes |
| Type of control gear | LED operating device voltage-controlled |
| With light source | Yes |
| Rated luminous flux according to IEC 62722-2-1 | 810 lm |
| Connection type | Screwed terminal |
| Suitable for surface mounting | Yes |
| Lamp type | LED exchangeable |
| Voltage type | AC |
| Suitable for number of lamps | 1 |
| Type of wiring | Ending |
| Colour housing | Anthracite, Black, Silver, White |
| Material housing | Aluminium |
| Nominal voltage | 230 V |
| Height/depth | 300 mm |
| Max. system power | 8 W |
| Length | 160 mm |
| Colour of light | White |
| Dimming phase cut-off | No, Yes |
| Dimming depending on control gear | Yes |
| Suitable for lamp power | 8 W |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Exchangeable control gear | Yes |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Light type | Wandleuchte |
| Beam angle | Open beam/diffuse |
| Degree of protection (IP) | IP54 |
| Light output | Direct |
| Conductor cross section | 2.5 mm² |
| Protection class | I |
| Light output | 1-seitig |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Flickering value Pst LM | 1 |
| Number of poles | 3 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Width | 140 mm |
| Material cover | Plastic, structured |
| Colour rendering index CRI | 80-89 |
| Colour temperature | 3000 K |
| Style | Modern |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Photobiological safety according to EN 62471 | RG1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Mounting Type | Wand |
| Shape | Eckig |
| No dim function | Yes |
| Surface protection housing | Lacquered |
| Height | < 700 mm |
| Light sharing | Symmetric |
| Stroboscope effect value SVM | 0.4 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Unified Glare Ratio (UGR) | 1 |
Related products
-

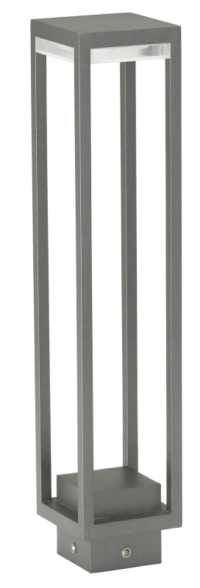

Bollard light type ..2010excl. VAT
-
