Data sheet
Article number
Select a color, please

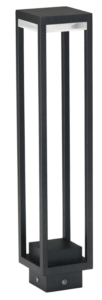

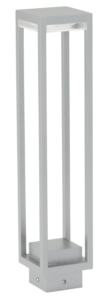

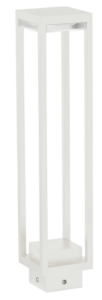

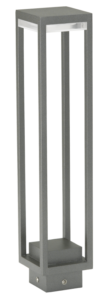

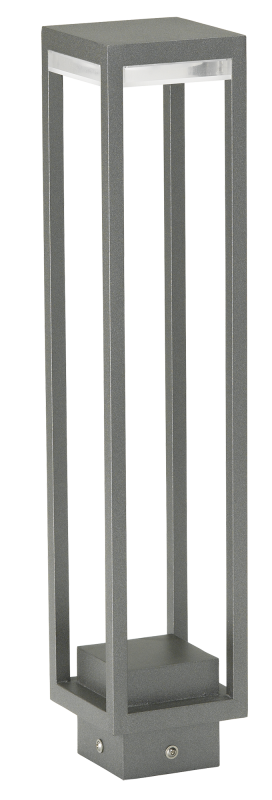

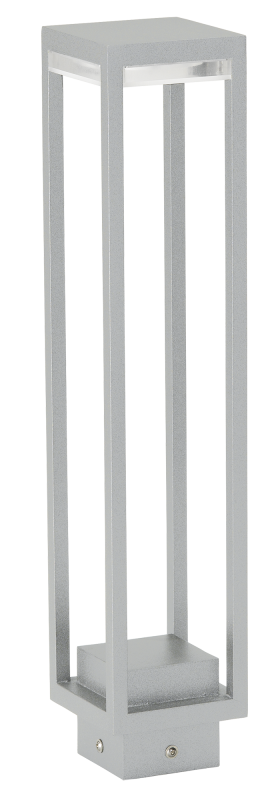

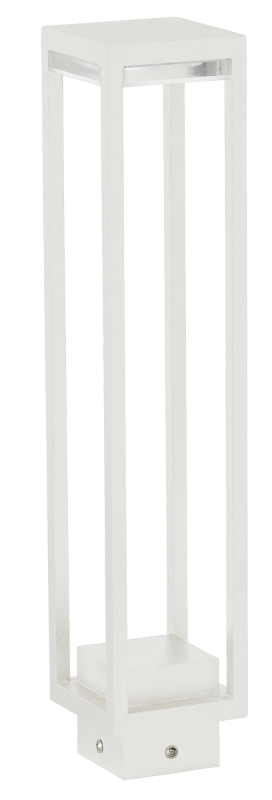

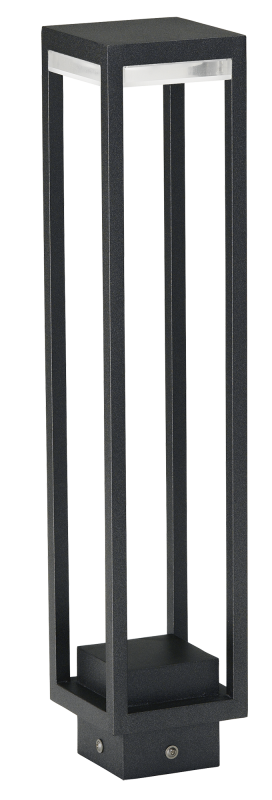

Bollard light
type ..2280
€407,20 – €468,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
810 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

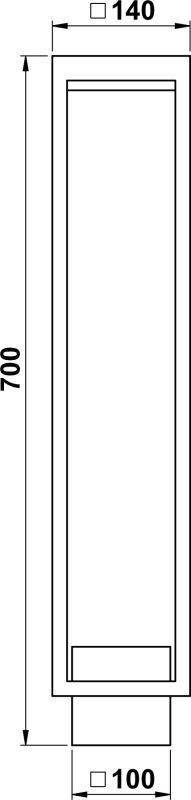

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622280
Offertext
For: 662280
Offertext
For: 682280
Offertext
For: 692280
Full catalog 21 / 22
Accessories
| 690010 - Earth mounting base type ..0010 | show |
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Lamp type | LED exchangeable |
| Colour housing | Anthracite, Black, Silver, White |
| Surface protection | Lacquered |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Material cover | Glass opal |
| Voltage type | AC |
| Type of control gear | LED operating device voltage-controlled |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Colour rendering index CRI | 80-89 |
| With control gear | Yes |
| Number of poles | 3 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Nominal voltage | 230 V |
| With light source | Yes |
| With base plate | Yes |
| Suitable for number of lamps | 1 |
| Max. system power | 8 W |
| Type of wiring | Suitable for through wiring |
| Degree of protection (IP) | IP54 |
| Power factor | 0.9 |
| Light type | Standleuchte |
| Height/depth | 700 mm |
| Material housing | Aluminium |
| Light sharing | Symmetric |
| Rated luminous flux according to IEC 62722-2-1 | 810 lm |
| Suitable for lamp power | 8 W |
| Width | 140 mm |
| Connection type | Screwed terminal |
| Colour of light | White |
| Colour temperature | 3000 K |
| Height | < 700 mm, 700 – 1000 mm |
| Style | Modern |
| Exchangeable control gear | Yes |
| Protection class | I |
| Light output | Indirect |
| Length | 140 mm |
| Beam angle | Open beam/diffuse |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Conductor cross section | 2.5 mm² |
| Shape | Eckig |
