Article number Select a color, please

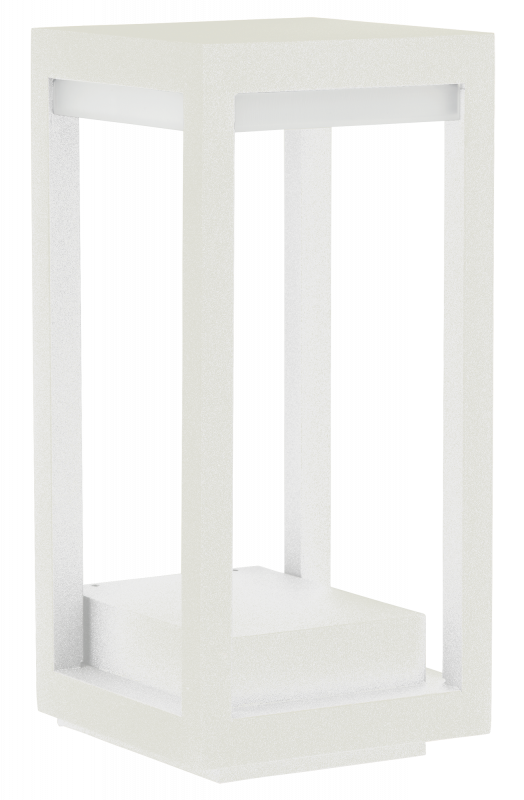

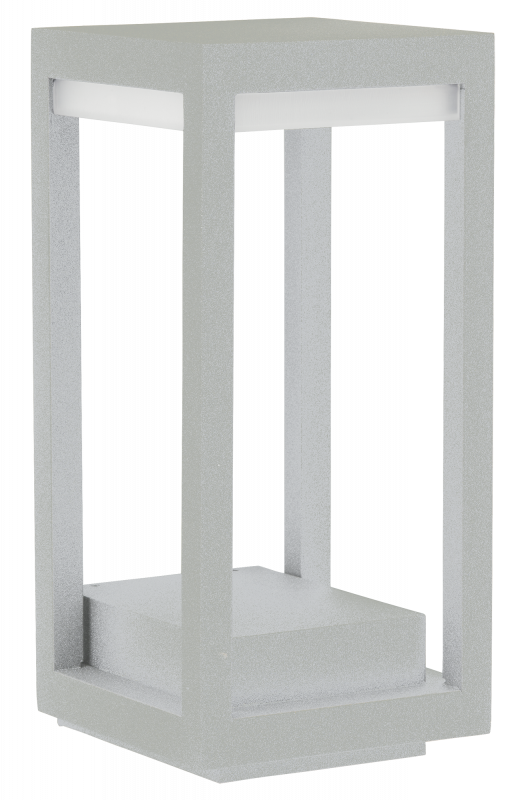

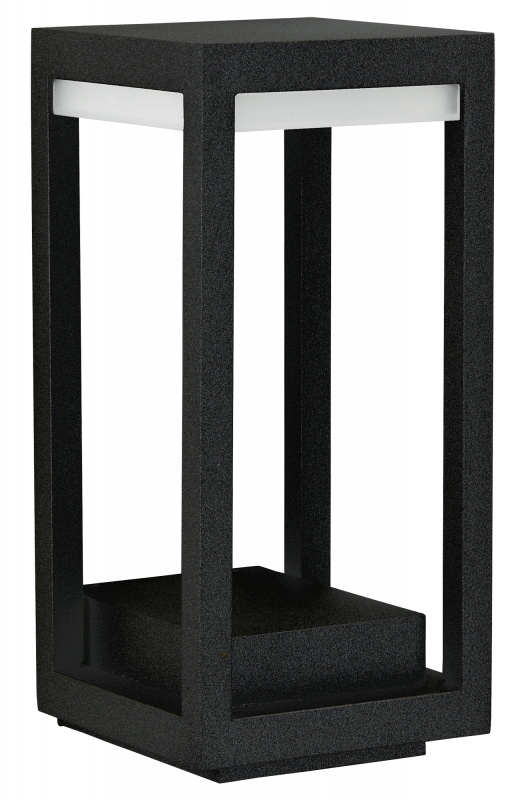

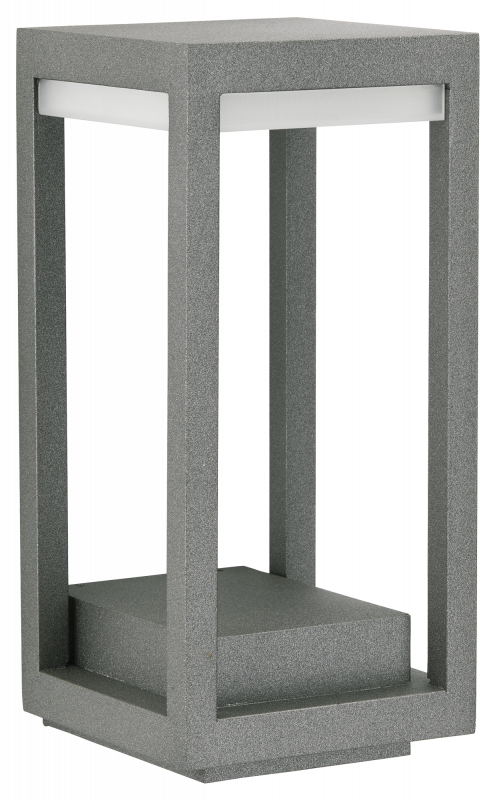

Wall light

type ..0280

347,00399,10

Clear
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
810 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Documents and files
Assembly instruction

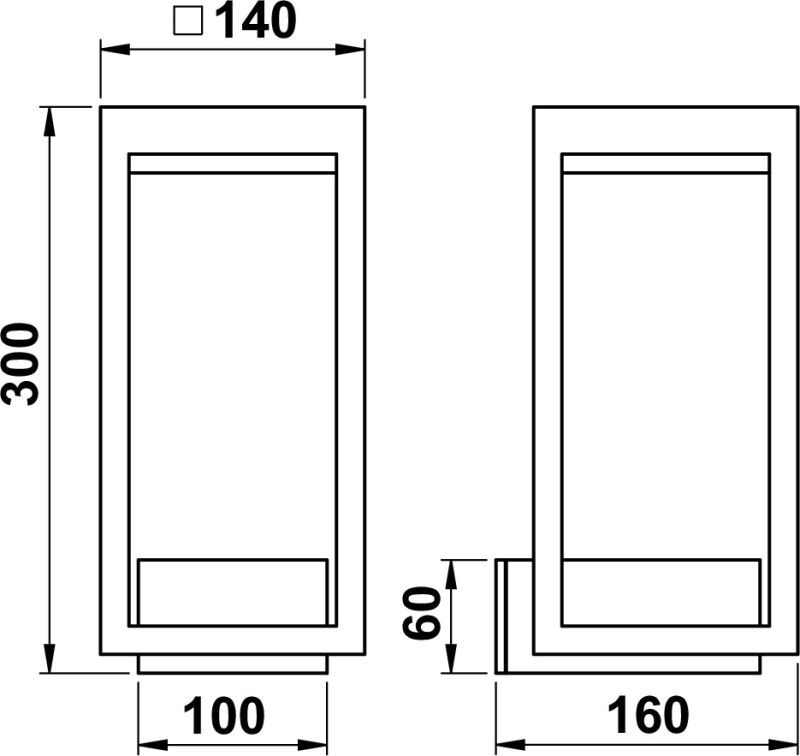

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620280
Offertext
For: 660280
Offertext
For: 680280
Offertext
For: 690280
Full catalog 21 / 22

Additional information

Weight N/A
Suitable for wall mounting

Yes

Type of wiring

Ending

With control gear

Yes

Type of control gear

LED operating device voltage-controlled

With light source

Yes

Height/depth

300 mm

Colour of light

White

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Voltage type

AC

Suitable for number of lamps

1

Connection type

Screwed terminal

Length

160 mm

Dimming phase cut-off

No, Yes

Colour housing

Anthracite, Black, Silver, White

Material housing

Aluminium

Nominal voltage

230 V

Dimming depending on control gear

Yes

Max. system power

8 W

Suitable for lamp power

8 W

Energy efficiency class of the provided exchangeable built-in lamp

E

Power factor

0.9

Rated luminous flux according to IEC 62722-2-1

810 lm

Lowest energy efficiency class of the exchangeable lamp

E

Beam angle

Open beam/diffuse

Degree of protection (IP)

IP54

Light output

Direct

Conductor cross section

2.5 mm²

Protection class

I

Light output

1-seitig

Light sharing

Symmetric

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Width

140 mm

Material cover

Plastic, structured

Colour rendering index CRI

80-89

Colour temperature

3000 K

Max. number of luminaires per miniature circuit breaker C16

30

Height

< 700 mm

Max. number of luminaires per miniature circuit breaker B16

20

No dim function

Yes

Flickering value Pst LM

1

Exchangeable control gear

Yes

Photobiological safety according to EN 62471

RG1

Style

Modern

Light type

Wandleuchte

Mounting Type

Wand

Shape

Eckig

Stroboscope effect value SVM

0.4

Surface protection housing

Lacquered

Unified Glare Ratio (UGR)

1
