Article number 690309

Wall light

type ..0309

237,70

Description

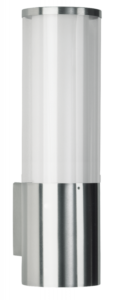

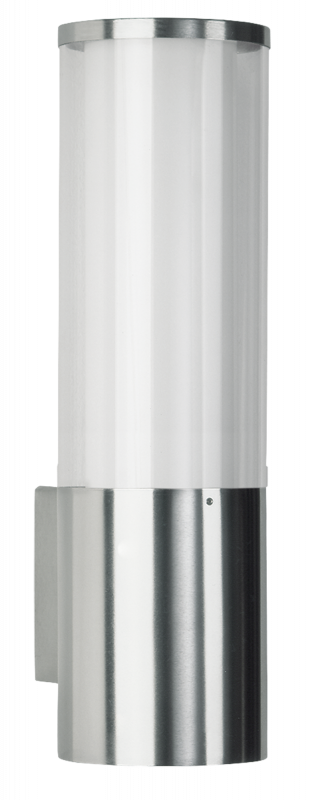

Albert wall lamp 690309 made of stainless steel with acrylic tube as well as mounting plate made of cast aluminium. Equipped for 1 x compact fluorescent lamp with integrated. EVG lamp max. 20W, socket E27.protection class IP 44 – protection class : d 100 x 355 x 145 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

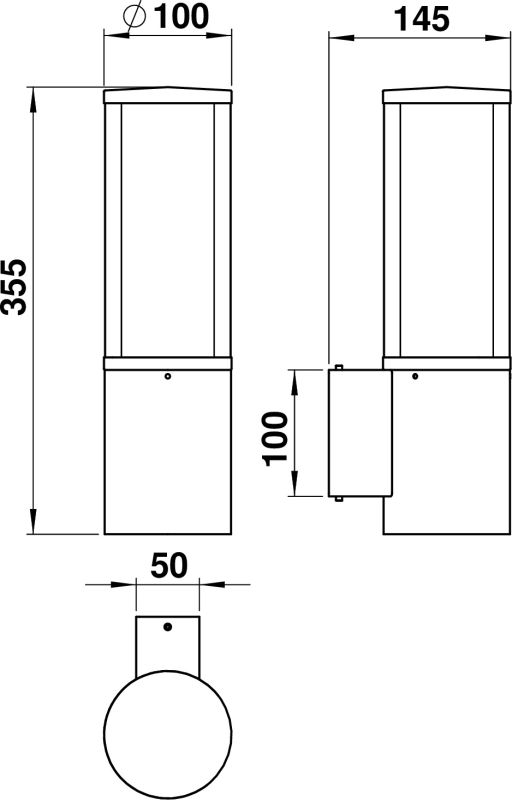

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
691000 - Corner bracket type ..1000 show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,10 kg
Style

Edelstahl, Modern

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Protection class

I

Material housing

Stainless steel

Suitable for number of lamps

1

Light sharing

Symmetric

Colour housing

Stainless steel

Lamp type

LED exchangeable

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Height/depth

355 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Nominal voltage

230 V

Lamp holder

E27

No dim function

Yes

Outer diameter

100 mm

Dimming depending on control gear

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Suitable for lamp power

1 – 20 W

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Mounting Type

Wand

Max. system power

20 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Light type

Wandleuchte

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Length

145 mm

Connection type

Screwed terminal

Number of poles

3

Shape

Eckig
