Article number 696343

Wall light

type ..6343

394,30

Description

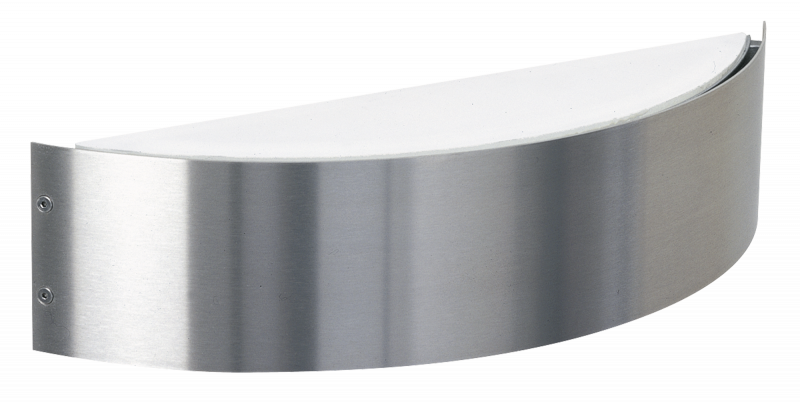

Albert wall lamp 696343
with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium.2 x LED 9,6 W, warm white 3000 K, 720 IP 44 each – protection class : 415 x 100 x 115 mm

Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
LED components can be replaced by Albert luminaires.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
19.2 W
Rated luminous flux acc. IEC 62722-2-1
1440 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

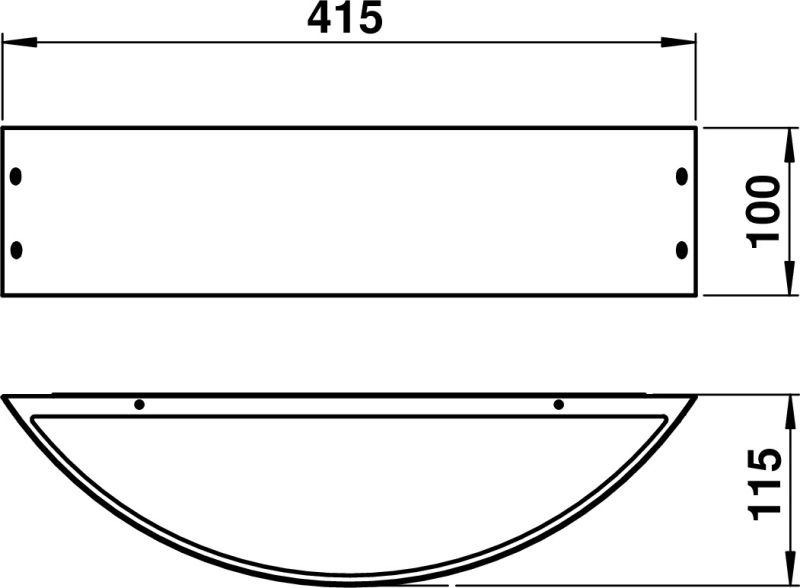

Dimensioned drawing
Light distribution curve
Full catalog 21 / 22
Spare parts
90220319 - G 319, frosted flashed glass ESG show

Additional information

Weight 2.70 kg
Suitable for wall mounting

Yes

No dim function

Yes

Control gear included

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

2

With light source

Yes

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Suitable for surface mounting

Yes

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

A+

Colour rendering index CRI

80-89

Power factor

0.9

Width

415 mm

Height/depth

100 mm

Length

115 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Max. system power

19.2 W

Beam angle

Open beam/diffuse

Light output

Direct

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Suitable for lamp power

19.2 W

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Rated luminous flux acc. IEC 62722-2-1

1440 lm

Colour of light

White

Colour temperature

3000 K

Shape

Eckig

Style

Edelstahl, Modern

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm
