Data sheet
Article number
Select a color, please

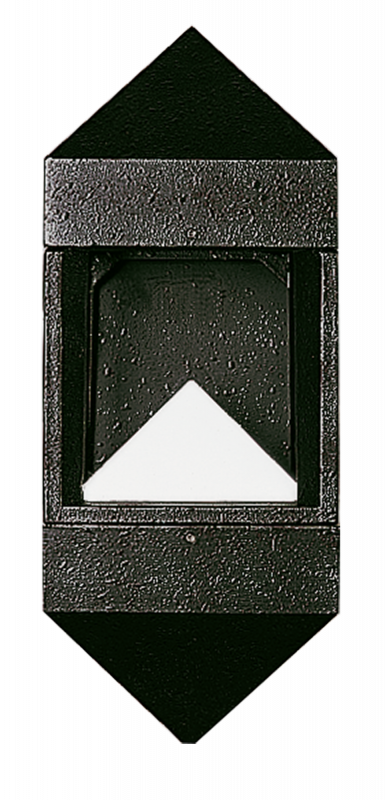

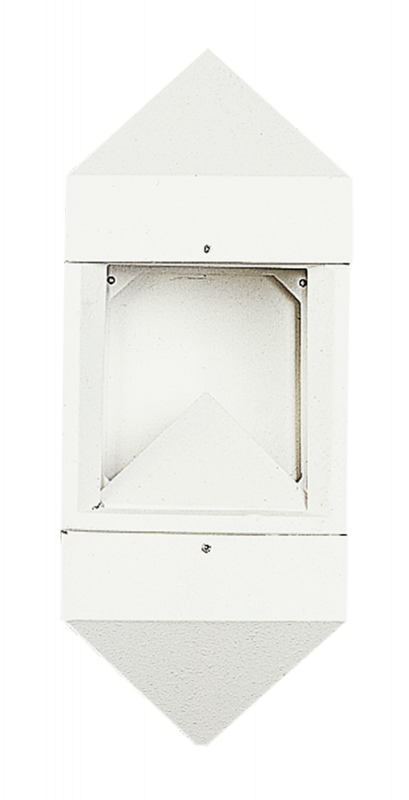

Wall light
type ..0618
€258,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
80 W
Material cover
Glass structured
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | < 700 mm |
| Light sharing | Symmetric |
| Light outlet | 1-seitig |
| No dim function | Yes |
| Mounting method | Wand |
| Dimming depending on control gear | Yes |
| Max. system power | 80 W |
| Degree of protection (IP) | IP44 |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
| Style | Modern |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection housing | Lacquered |
| Connection type | Screwed terminal |
| Light outlet | Direct |
| Type of control gear | Not required |
| Conductor cross section | 2.5 mm² |
| Suitable for surface mounting | Yes |
| Nominal voltage | 230 V |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 1 |
| Number of poles | 3 |
| Protection class | I |

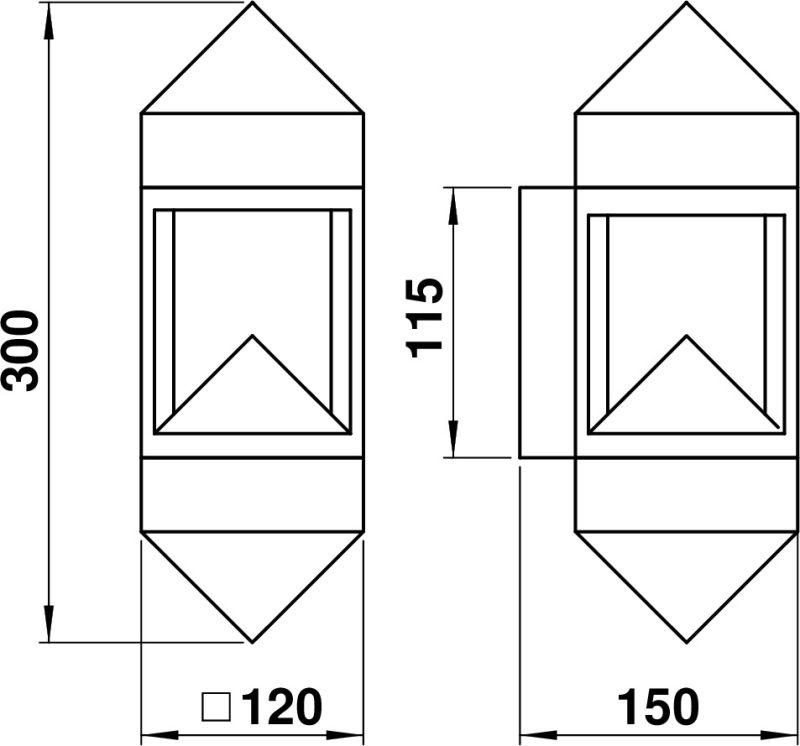

| Length | 150 mm |
| Height/depth | 300 mm |
| Power factor | 1 |
| Light type | Wandleuchte |
| Width | 120 mm |
| Type of wiring | Ending |
| Dimming phase cut-on | Yes |
| Voltage type | AC |
| Shape | Eckig |
Documents and files
Spare parts
| 90220108 - G 108, borosilicate glass pane | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | < 700 mm |
| Light sharing | Symmetric |
| Light outlet | 1-seitig |
| No dim function | Yes |
| Mounting method | Wand |
| Dimming depending on control gear | Yes |
| Max. system power | 80 W |
| Degree of protection (IP) | IP44 |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
| Style | Modern |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection housing | Lacquered |
| Connection type | Screwed terminal |
| Light outlet | Direct |
| Type of control gear | Not required |
| Conductor cross section | 2.5 mm² |
| Suitable for surface mounting | Yes |
| Nominal voltage | 230 V |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 1 |
| Number of poles | 3 |
| Protection class | I |
| Length | 150 mm |
| Height/depth | 300 mm |
| Power factor | 1 |
| Light type | Wandleuchte |
| Width | 120 mm |
| Type of wiring | Ending |
| Dimming phase cut-on | Yes |
| Voltage type | AC |
| Shape | Eckig |
Related products
-
Base luminaire type ..0599excl. VAT
-
Base luminaire type ..0520excl. VAT
-
Wall light type ..0699excl. VAT
-

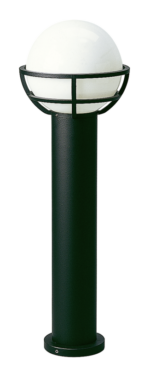

Bollard light type ..2299excl. VAT
