Article number Select a color, please

Base luminaire

type ..0599

384,50

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

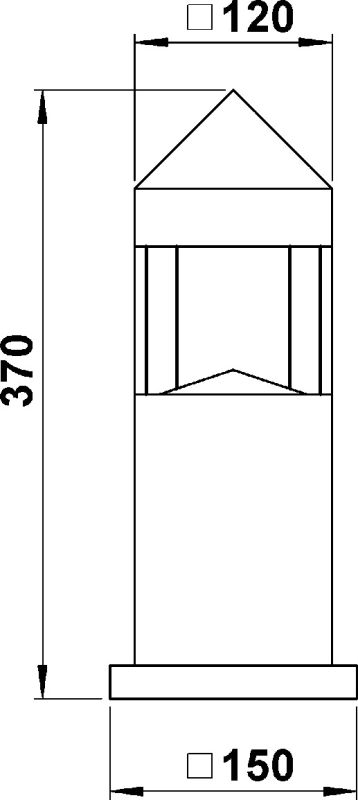

Dimensioned drawing
Offertext
For: 660599
Offertext
For: 680599
Full catalog 21 / 22
Spare parts
90220108 - G 108, borosilicate glass pane show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Degree of protection (IP)

IP44

With base plate

Yes

Material cover

Glass transparent

Material housing

Aluminium

Colour housing

Black, White

Surface protection

Lacquered

Voltage type

AC

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Number of poles

3

Rated luminous flux according to IEC 62722-2-1

1200 lm

Height/depth

370 mm

With light source

Yes

Suitable for lamp power

12 W

Protection class

I

Highest energy efficiency class of the exchangeable lamp

A+

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Lamp type

LED exchangeable

Connection type

Screwed terminal

Type of wiring

Suitable for through wiring

Suitable for number of lamps

1

Type of luminaire

Pedestal luminaire

Max. system power

12 W

Light sharing

Symmetric

Light output

Indirect

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Style

Modern

Colour of light

White

Colour temperature

3000 K

Height

< 700 mm

Power factor

0.9

Lowest energy efficiency class of the exchangeable lamp

E

Length

120 mm

Width

120 mm

Energy efficiency class of the provided exchangeable built-in lamp

E

Exchangeable control gear

Yes

Shape

Eckig
