Article number Select a color, please

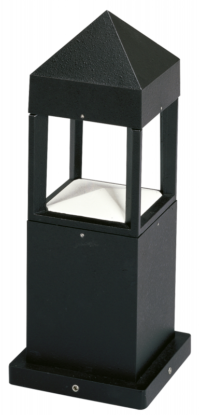

Bollard light

type ..2299

470,70

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

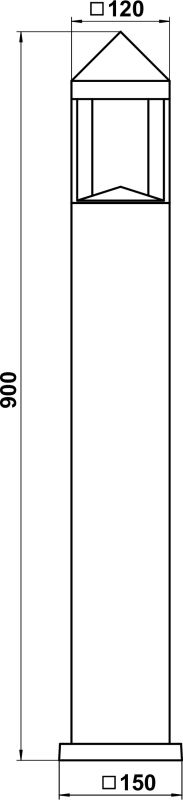

Dimensioned drawing
Offertext
For: 662299
Offertext
For: 682299
Full catalog 21 / 22
Spare parts
90220108 - G 108, borosilicate glass pane show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Energy efficiency class of the provided exchangeable built-in lamp

E

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Type of control gear

LED operating device voltage-controlled

Material housing

Aluminium

Colour housing

Black, White

Surface protection

Lacquered

Colour rendering index CRI

80-89

Voltage type

AC

Highest energy efficiency class of the exchangeable lamp

A+

Nominal voltage

230 V

Material cover

Glass transparent

Lowest energy efficiency class of the exchangeable lamp

E

Power factor

0.9

With base plate

Yes

With control gear

Yes

Width

150 mm

Rated luminous flux according to IEC 62722-2-1

1200 lm

Colour of light

White

Shape

Eckig

Light type

Standleuchte

Degree of protection (IP)

IP44

Length

120 mm

Light sharing

Symmetric

Height/depth

900 mm

Conductor cross section

2.5 mm²

Type of wiring

Suitable for through wiring

Colour temperature

3000 K

Protection class

I

Connection type

Screwed terminal

Max. system power

12 W

Height

700 – 1000 mm

Style

Modern

Exchangeable control gear

Yes

Number of poles

3

Suitable for lamp power

12 W

Light output

Indirect

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30
