Data sheet
Article number
Select a color, please
Wall light
type ..0699
€324,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Style | Modern |
| Max. system power | 12 W |
| Connection type | Screwed terminal |
| Light outlet | Direct |
| Degree of protection (IP) | IP44 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Power factor | 0.9 |
| Photobiological safety according to EN 62471 | RG1 |
| Flickering value Pst LM | 1 |
| Light outlet | 1-seitig |
| Beam angle | Open beam/diffuse |

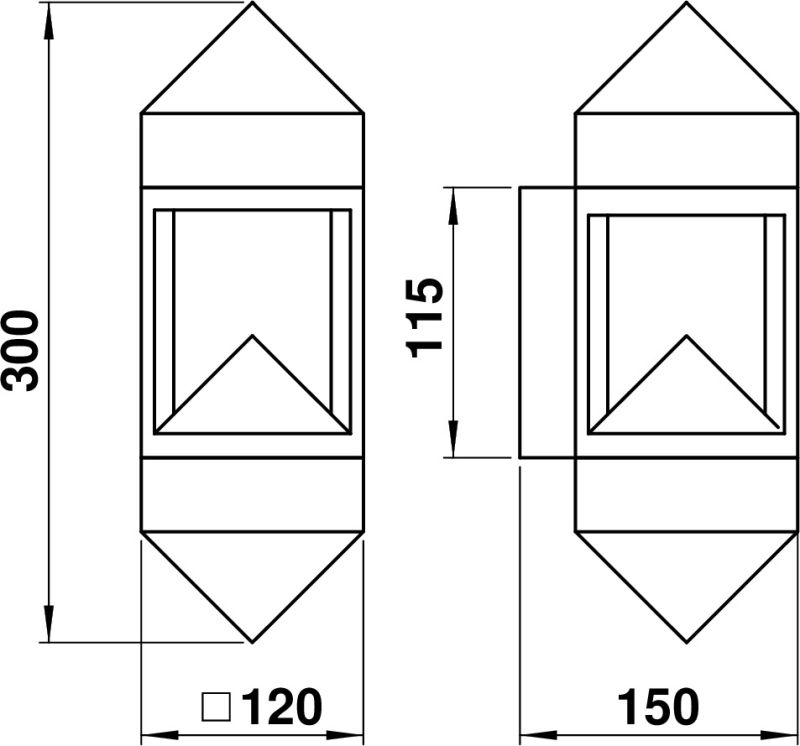

| Width | 120 mm |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Mounting method | Wand |
| Number of poles | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Stroboscope effect value SVM | 0.4 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Conductor cross section | 2.5 mm² |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Type of wiring | Ending |
| Shape | Eckig |
| Light type | Wandleuchte |
| No dim function | Yes |
| Dimming phase cut-off | Yes |
| Protection class | I |
| Voltage type | AC |
| Suitable for surface mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Length | 150 mm |
| Colour of light | White |
| Colour rendering index CRI | 80-89 |
| Type of control gear | LED operating device voltage-controlled |
| Height/depth | 300 mm |
| Suitable for number of lamps | 1 |
| Nominal voltage | 230 V |
Documents and files
Spare parts
| 90220108 - G 108, borosilicate glass pane | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Style | Modern |
| Max. system power | 12 W |
| Connection type | Screwed terminal |
| Light outlet | Direct |
| Degree of protection (IP) | IP44 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Power factor | 0.9 |
| Photobiological safety according to EN 62471 | RG1 |
| Flickering value Pst LM | 1 |
| Light outlet | 1-seitig |
| Beam angle | Open beam/diffuse |
| Width | 120 mm |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Mounting method | Wand |
| Number of poles | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Stroboscope effect value SVM | 0.4 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Conductor cross section | 2.5 mm² |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Type of wiring | Ending |
| Shape | Eckig |
| Light type | Wandleuchte |
| No dim function | Yes |
| Dimming phase cut-off | Yes |
| Protection class | I |
| Voltage type | AC |
| Suitable for surface mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Length | 150 mm |
| Colour of light | White |
| Colour rendering index CRI | 80-89 |
| Type of control gear | LED operating device voltage-controlled |
| Height/depth | 300 mm |
| Suitable for number of lamps | 1 |
| Nominal voltage | 230 V |
