Article number Select a color, please

Base luminaire

type ..0542

283,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing

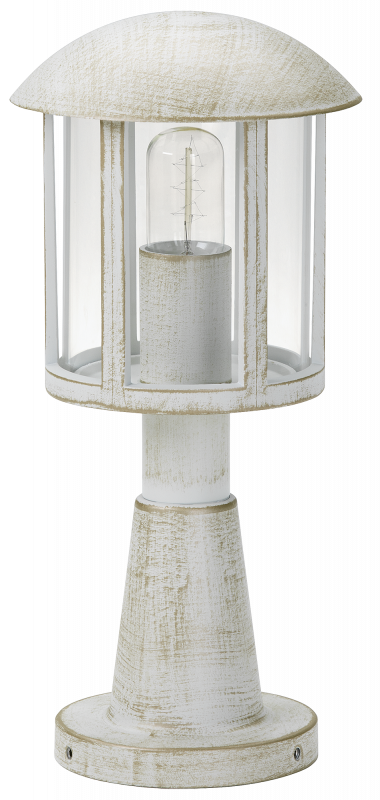

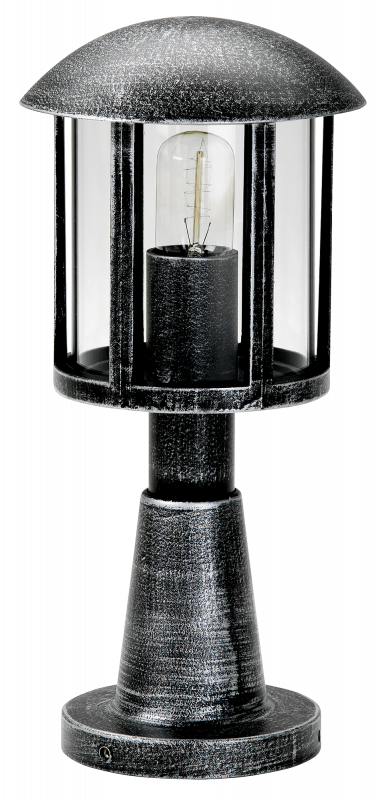

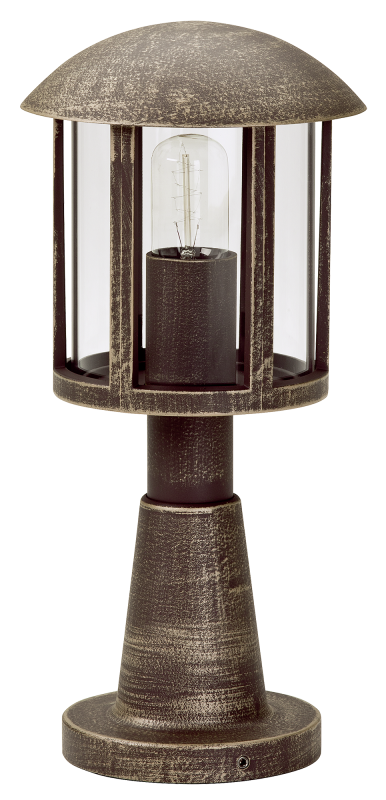

Black-Silver, Brown-Brass, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Type of luminaire

Pedestal luminaire

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Protection class

I

Type of control gear

Not required

Voltage type

AC

Surface protection

Lacquered

Suitable for number of lamps

1

Nominal voltage

230 V

Type of wiring

Suitable for through wiring

Beam angle

Open beam/diffuse

Power factor

1

Conductor cross section

2.5 mm²

Diameter

240 mm

Max. system power

75 W

Light output

Direct/indirect

Number of poles

3

Light output

2-seitig

Style

Landhaus

Connection type

Screwed terminal

Height

1001 – 1700 mm

Height/depth

1150 mm

Light sharing

Symmetric

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB

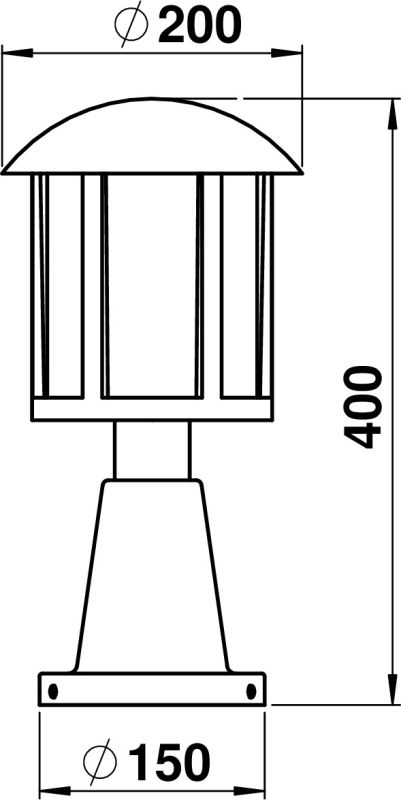

Dimensioned drawing
PDF | 19 KB
Light distribution curve - Eulumdat/LDT
LDT | 848 B
Offertext
For: 600542
TXT | 284 B
Offertext
For: 650542
TXT | 284 B
Offertext
For: 670542
TXT | 279 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260368 - G-368, acrylic tube clear 181mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
