Article number Select a color, please

Base luminaire

type ..0533

168,20

Clear
Features
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

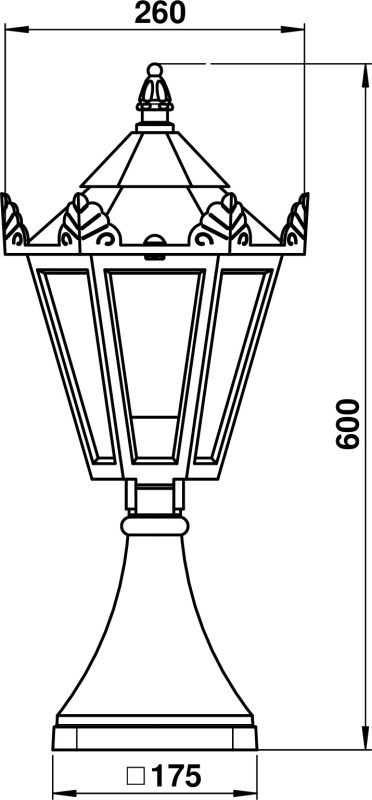

Dimensioned drawing
Offertext
For: 600533
Offertext
For: 670533
Full catalog 21 / 22
Spare parts
90220180 - G 180, disc set (6 pieces) show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

With base plate

Yes

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black-Silver, White-Gold

Voltage type

AC

Material cover

Glass transparent

Nominal voltage

230 V

Type of control gear

Not required

Surface protection

Lacquered

Lamp type

Incandescent lamp

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

600 mm

Number of poles

3

Max. system power

75 W

Power factor

1

Width

260 mm

Lowest energy efficiency class of the exchangeable lamp

A

Length

260 mm

Diameter

260 mm

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP23

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Style

Landhaus

Protection class

I

Suitable for lamp power

1 – 75 W

Height

< 700 mm
