Article number Select a color, please

Wall light

type ..3229

171,90

Clear
Features
IP23 Product-Icon Luminaire has IP 23 protection.
Luminaire has IP 23 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing

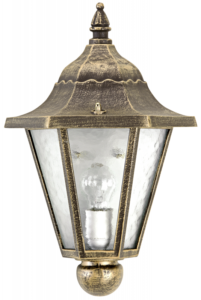

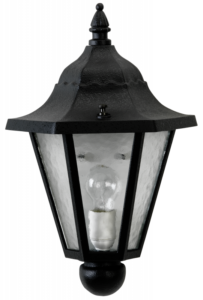

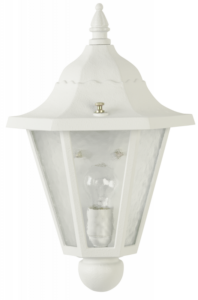

Black, Brown-Brass, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass structured
Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-on

Yes

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Suitable for number of lamps

1

Width

280 mm

Dimming phase cut-off

Yes

Max. system power

75 W

Light output

Direct

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming manufacturer's proprietary system

Yes

Dimming depending on control gear

Yes

Degree of protection (IP)

IP23

Height/depth

425 mm

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Number of poles

3

Connection type

Screwed terminal

Length

155 mm

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Protection class

I

Power factor

1

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 44 KB

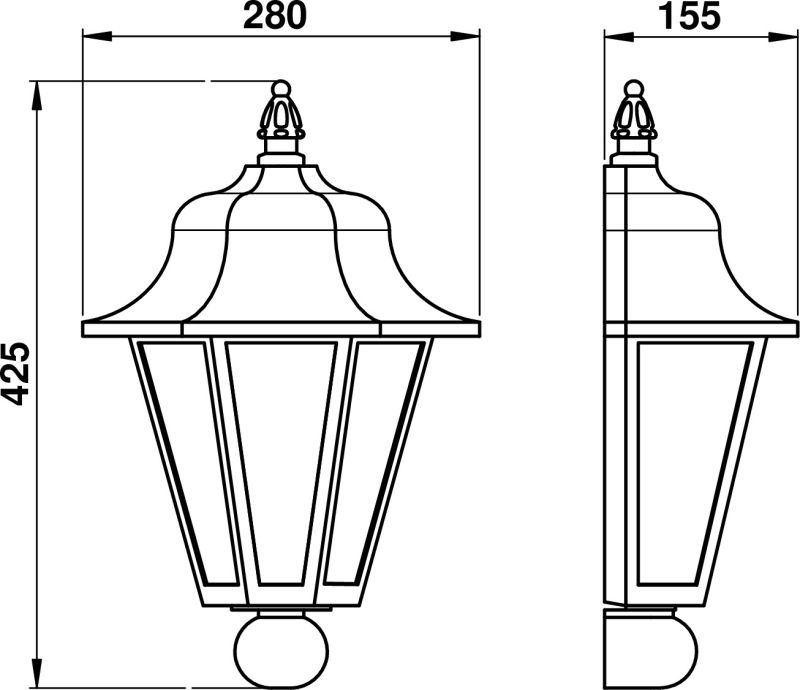

Dimensioned drawing
PDF | 17 KB
Light distribution curve - Eulumdat/LDT
For: 663229, 683229
LDT | 4 KB
Offertext
For: 653229
TXT | 210 B
Offertext
For: 663229
TXT | 226 B
Offertext
For: 683229
TXT | 226 B
