Article number Select a color, please

Pole light 3-light

type ..2099

708,30

Clear
Features
IP23 Product-Icon Luminaire has IP 23 protection.
Luminaire has IP 23 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W
Material cover
Glass transparent
Pole included
Ja
Documents and files
Assembly instruction

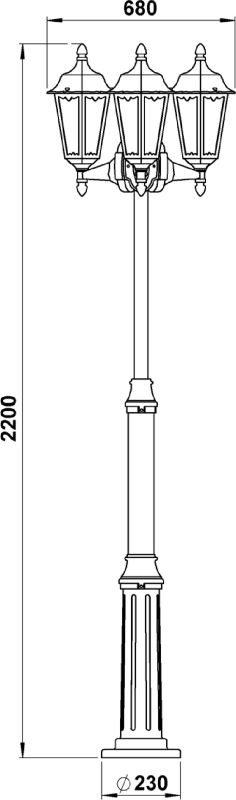

Dimensioned drawing
Offertext
For: 652099
Offertext
For: 662099
Offertext
For: 682099
Full catalog 21 / 22
Spare parts
90220172 - G 172, set of washers (6 pieces) show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Mounting Type

Post top

Lamp type

HV halogen lamp

Type of wiring

Suitable for through wiring

Dimming phase cut-on

Yes

Suitable for number of lamps

3

Lamp holder

E27

Material housing

Aluminium

Surface protection

Lacquered

Material cover

Glass transparent

Colour housing

Black, Brown-Brass, White

Voltage type

AC

Dimming phase cut-off

Yes

Type of control gear

Not required

Height/depth

2200 mm

Pole included

Ja

Style

Landhaus

No dim function

Yes

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP23

Lowest energy efficiency class of the exchangeable lamp

E

Power factor

1

Protection class

I

Nominal voltage

230 V

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height

> 1700 mm

Cable length

0 m

Suitable for lamp power

1 – 225 W

Max. system power

225 W

Connection type

Screwed terminal

Diameter

680 mm

Light type

Standleuchte

Number of poles

3

Shape

Eckig
