Article number 696166

Wall light

type ..6166

343,20

Description

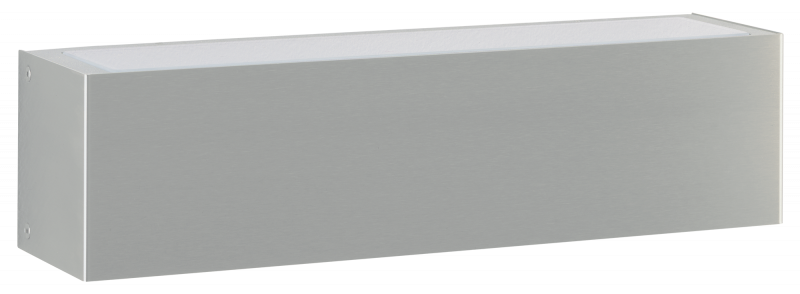

Albert wall lamp 696166
with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium. Equipped for 2 x TC-D 18W, socket G24 d-2.protection IP 44 – protection class : 105 x 400 x 105 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-3
Suitable for lamp power
52 W
Material cover
Glass opal
Documents and files
Assembly instruction

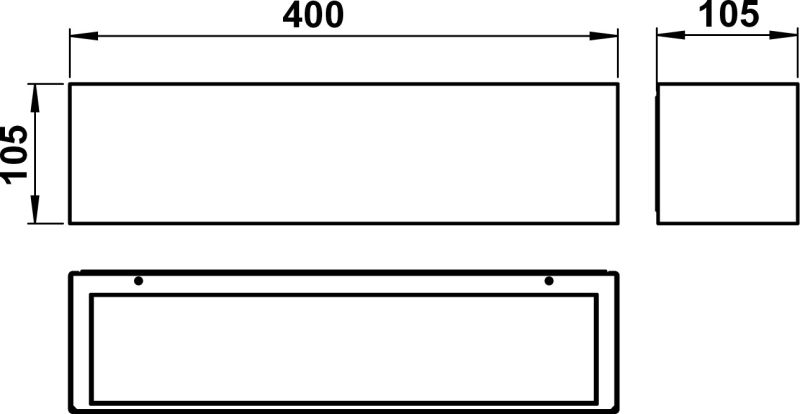

Dimensioned drawing
Full catalog 21 / 22
Spare parts
90220379 - G 379, milk flashed glass show

Additional information

Weight 3,50 kg
Suitable for wall mounting

Yes

Number of poles

3

Lamp holder

G24d-3

Suitable for number of lamps

2

Material housing

Stainless steel

Lamp type

Compact fluorescent lamp

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Power factor

1

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC/DC

Type of control gear

Low-loss ballast inductive

Nominal voltage

230 V

With control gear

Yes

Conductor cross section

2.5 mm²

Suitable for surface mounting

Yes

Dimming depending on control gear

Yes

Light sharing

Symmetric

Width

400 mm

Height/depth

105 mm

Length

105 mm

Type of wiring

Ending

Beam angle

Open beam/diffuse

Light output

Direct

Height

< 700 mm

Photobiological safety according to EN 62471

RG1

Protection class

I

Light type

Wandleuchte

Suitable for lamp power

52 W

Max. system power

52 W

No dim function

Yes

Surface protection housing

Untreated

Degree of protection (IP)

IP44

Unified Glare Ratio (UGR)

1

Mounting Type

Wand

Light output

1-seitig

Exchangeable control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Shape

Eckig
