Data sheet
Article number
Select a color, please

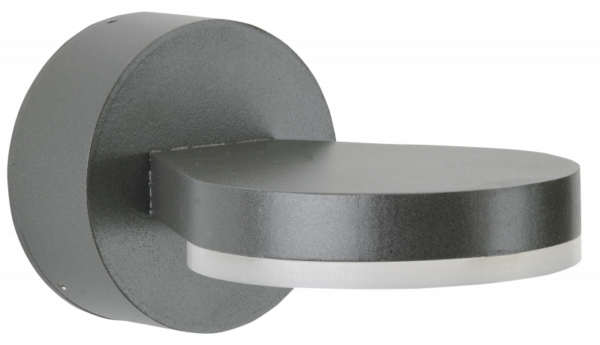

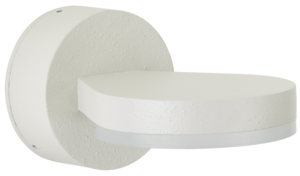

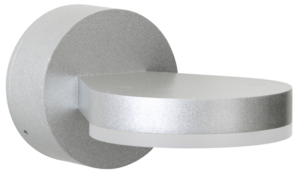

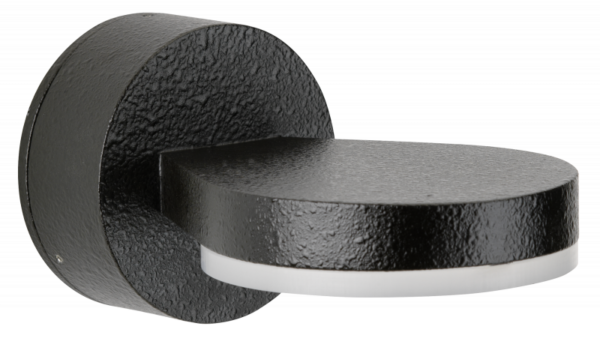

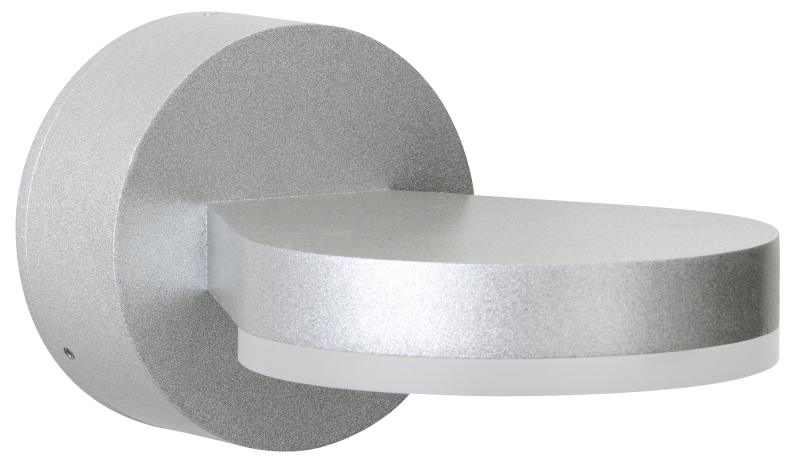

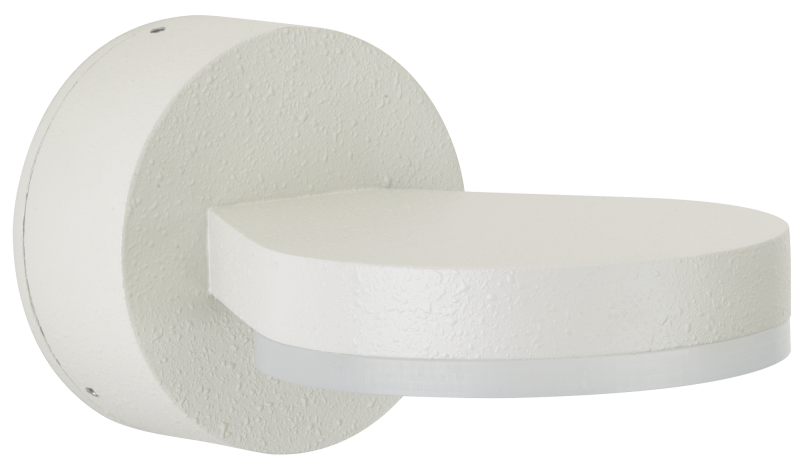

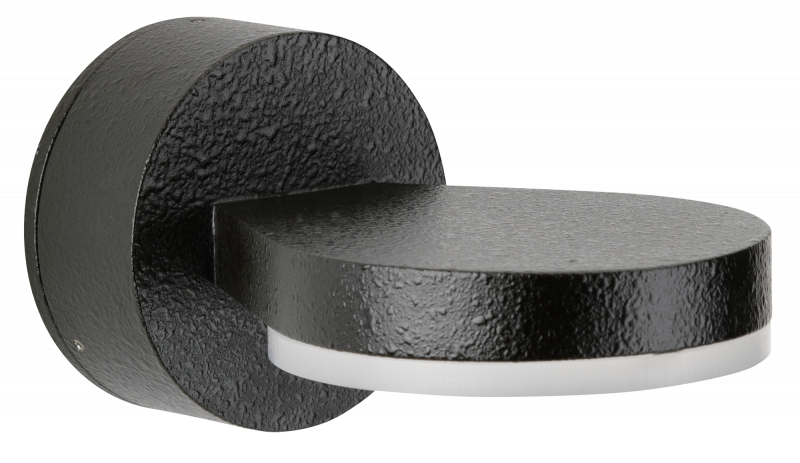

Wall light
type ..0230
€255,10 – €293,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Glass structured
Documents and files
Assembly instruction

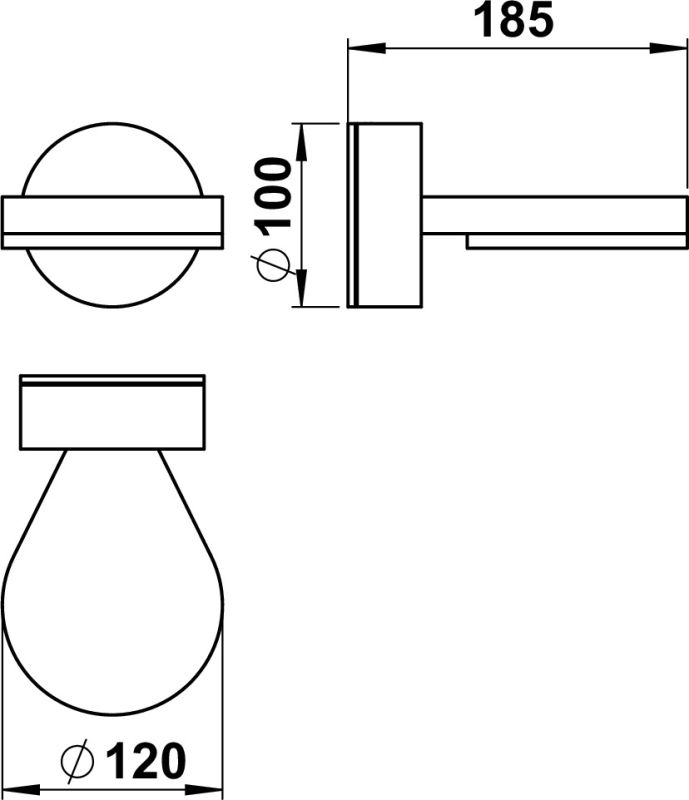

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620230
Offertext
For: 660230
Offertext
For: 680230
Offertext
For: 690230
Full catalog 21 / 22
Spare parts
| 90270463 - G 463, clear acrylic round, satin-finish surfaces | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| With light source | Yes |
| Degree of protection (IP) | IP44 |
| Conductor cross section | 2.5 mm² |
| Height/depth | 100 mm |
| Outer diameter | 120 mm |
| Suitable for surface mounting | Yes |
| Lamp type | LED exchangeable |
| Material cover | Glass structured |
| Suitable for number of lamps | 1 |
| Colour rendering index CRI | 80-89 |
| Max. system power | 10 W |
| Length | 185 mm |
| Voltage type | AC |
| With control gear | No, Yes |
| Colour housing | Anthracite, Black, Silver, White |
| Material housing | Aluminium |
| Rated luminous flux according to IEC 62722-2-1 | 480 lm |
| Suitable for lamp power | 10 W |
| Dimming phase cut-off | Yes |
| Light type | Wandleuchte |
| Light output | Direct |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | No, Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Beam angle | Open beam/diffuse |
| Number of poles | 3 |
| Light output | 1-seitig |
| Flickering value Pst LM | 1 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Dimming depending on control gear | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Power factor | 0.9 |
| Connection type | Screwed terminal |
| Colour temperature | 3000 K |
| Colour of light | White |
| Mounting Type | Wand |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Photobiological safety according to EN 62471 | RG1 |
| Type of wiring | Ending |
| No dim function | Yes |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Style | Modern |
| Light sharing | Symmetric |
| Surface protection housing | Lacquered |
| Height | < 700 mm |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
Related products
-
G-230, acrylic clear 120 x 3, 414 mmexcl. 19% VAT
-

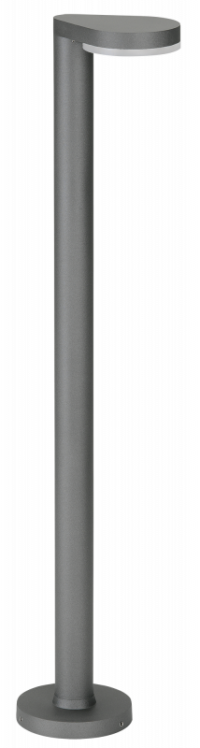

Bollard light type ..2230excl. VAT
